MEMO

Key No. PART No. PART NAME Q’ty REMARKS New Code

NOTE

BK-1 list-1

G -S017-23, 27

1004-003

1 6301611914 FRAME 1 845BK-100-001 910B0964

2 6301414249 MECH PARTS(URETHAN SHEET) 16 845BK-100-002 226J2211

11 6300425673 BOLT,HEX 6 845BK-100-011 221B0068

12 6300425697 NUT 6 845BK-100-012 221G0054

13 6300892475 BLOCK,LOCATE 6 0 0 845BK-100-013 216R0229

14 6301183862 BLOCK,LOCATE 6 962mm

845BKA100010-013

216R0283

15 6301183862 BLOCK,LOCATE 6 946mm

845BKA100020-013

216R0283

16 6301198354 BLOCK,LOCATE(D) 6 962mm

845BKA100010-A001

216R0285

23 6300416770 COLLAR 6 845SA-110-013 216A0334

24 6300008975 SET SCREW 6 M6X6 SET

845SA-110-014 221C0010

52 6300008012 BOLT,HEX-SCT 24 M8X20

845BKA100010-A002

221A0056

53 4111413100 WASHER SPR 8 24

845BKA100010-A003

221H0291

54 4111414503 WASHER V 8X17X1.6 24

845BKA100010-A004

221H0323

GXH-3PH

G -S017-23

G -S017-27

BK-1

MEMO

0805-001

UNIT

G -S019-05

SMEMA

通信対応

SMEMA

Interface for GXH-3

（

GXH

前後

I/F

, BOX

レス）

(Front & Rear I/F, Built-in type)

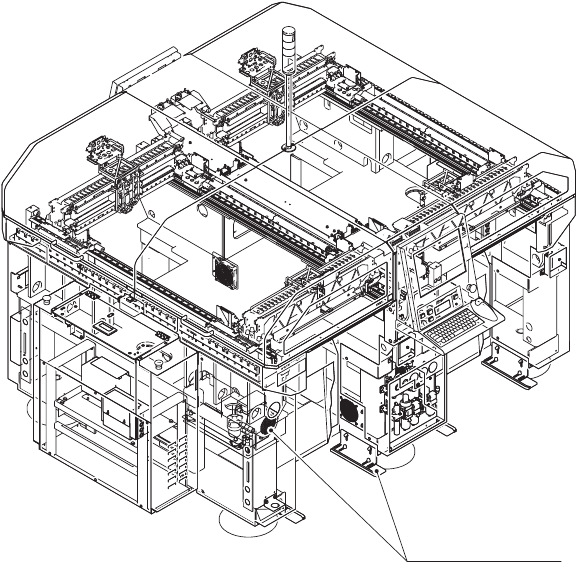

Fig.B

本体部

MAIN BODY SECTION

GXH-3
