Page HANWHA TECHWIN 31 SM482(L) Stage CAM Ass'y NO. P ART NO. P ART NAME Q'TY Old No. Supply Suppl y L T Ref erence 1 J70590095C B OARD COVER 1 2 J91741051A SSA_VIS_FIX_IF_BOARD LE DIF02 1 3 FC15-001295B LIGHT_…
Page
HANWHA TECHWIN
30
SM482(L)
Stage CAM Ass'y
1
1
2
2
9
9
3
26
26
25
4
7
10
11
12
8
5
6
13
14
15
16
17
18
19
28
19
24
23
22
20
27
21
11
Page
HANWHA TECHWIN
31
SM482(L)
Stage CAM Ass'y
NO. PART NO. PART NAME Q'TY Old No. Supply Supply LT Reference
1 J70590095C BOARD COVER 1
2 J91741051A SSA_VIS_FIX_IF_BOARD LEDIF02 1
3 FC15-001295B LIGHT_COVER 1 FC15-001295A
4 FC09-002220B BRACKET-LIGHT_G_1 1 FC09-002220A
5 J90600075B STAGE SIDE LIGHT BOARD ASSY STAGE SIDE LIGHT 1
6 J90600074B STAGE OUTER LIGHT BOARD ASSY STAGE OUTER LIGHT 1
7 FC09-002219A BRACKET-LIGHT_G_2 1
8 FC15-001491A COVER-LIGHT COVER 1
9 FC29-900611 HEX SUPPORT 8
10 FC15-001294B COVER-PROFILE_2 1 FC15-001294A
11 FC09-002218A BRACKET-GLASS_STOP 2
12 EP12-000044A GLASS,OPTICS-GLASS 1
13 PT02-000048A DIFFUSER,OPTIC-DIFFUSER 1
14 FC29-900610 HEX SUPPORT 4
15 J90600073C LED98-9 BOARD ASSY STAGE INNER 1
16 FC09-002222A MT82P-OP105A-PCB_BASE_2 1
17 FC09-002221A BRACKET-PCB_BASE_1 1
18 FC05-000225A MT82P-OP101A-BASE 1
19 FC15-001293A MT82P-OP110A-PROFILE_1 2
20 AM03-007709A ASSY,OPTICS-F45-60-ASSY 1
21 PT02-900001 CCD CAMERA 1
22 FC15-001290A COVER_1 1
23 FC15-001292A COVER_COMP 1
24 J706600087 T LINK1 SHAFT1 1
25 FC15-001291A COVER_2 1
26 FC29-900613 HEX SUPPORT 8
27 AM03-015218A ASSY,OPTICS-SM482_STAGE_MEGA_35_ASSY 1 AM03-007707B
AM03-015217A ASSY,OPTICS-SM482_STAGE_MEGA_45_ASSY 1 AM03-007727B OPTION
AM03-015220A ASSY,STAGE MODULE-SM482_NON_MEGA_35_ASSY 1 OPTION
AM03-015219A ASSY,STAGE MODULE-SM482_NON_MEGA_45_ASSY 1 OPTION
Page
HANWHA TECHWIN
32
SM482(L)

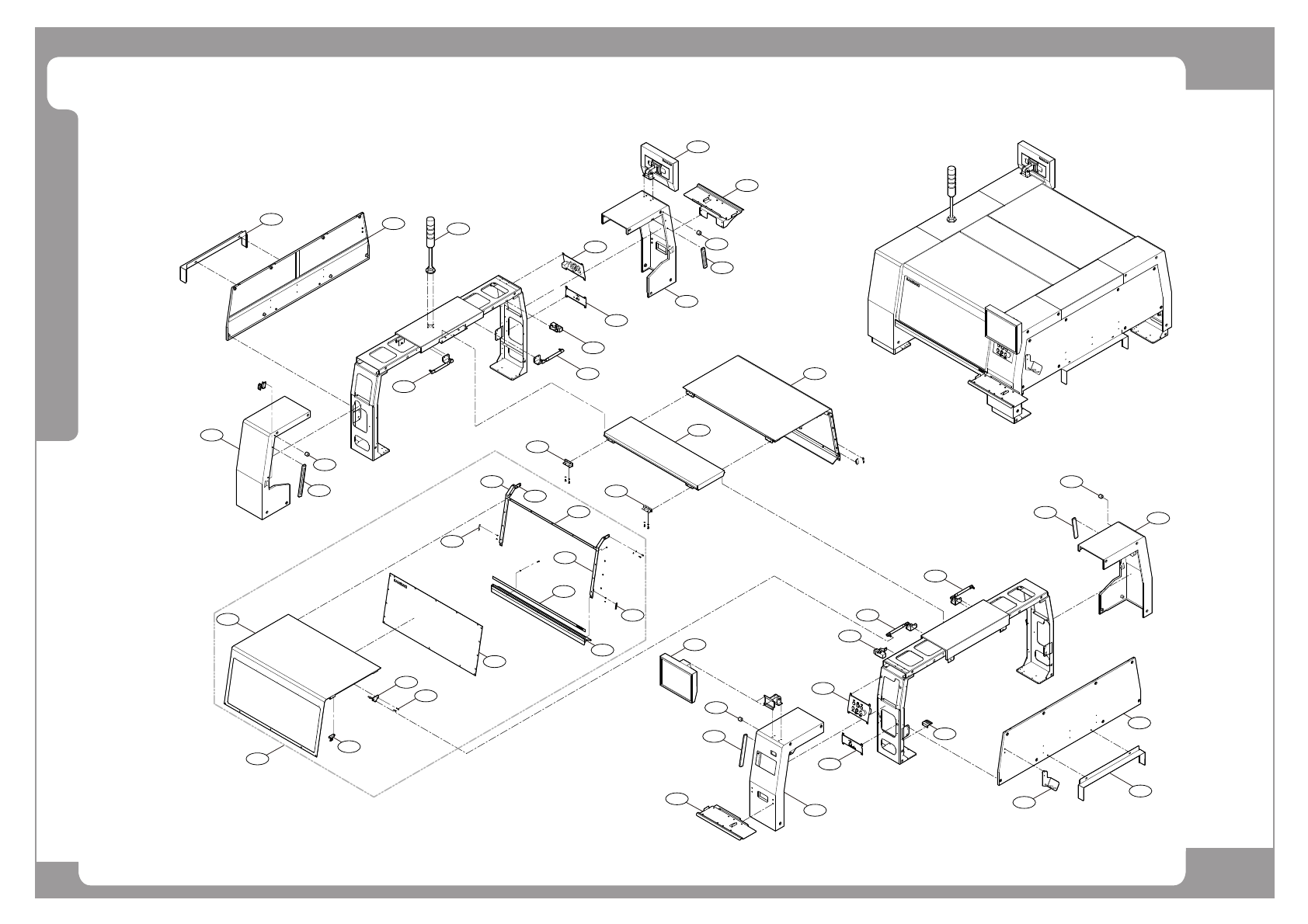

Cover Ass’y (1/3)
22
3
17
23
18
12
14
19
20
16
5
B
E
A
4
6
4
4
6
21
22
15
D
6
1
12
10
8
7
11
11
13
9
28
26
24
6
A
18
C
D
28
C
E
A
26
29
B
A
1
27
