700-0133-AS Rev. B
Viscosity Wizard
Digital Leveling
Automated Oscillation Test
Updated Gap Setting
Magnetic Coupling System
Barcode Scanning
Automatic Spindle Recognition
Ethernet Connectivity
LIMS Connectivity
Compliance to 21 CFR Part 11
Included
Included
Included
Included
Optional
Optional
N/A
N/A
N/A
N/A
Included
Included
Included
Included
Included
Included
Included
Included
Included
Included
MODEL COMPARISON
Standard Compliant
DVNext Cone/Plate
Rheometer
™
Updated Gap Settings
Quick Set-up with the New
Viscosity Wizard and Digital Leveling
Optional Compliance to 21 CFR Part 11
in Stand-alone Mode
Optional Compliant Version Includes
Ethernet and LIMS Connectivity
(800) 528-7411 or (602) 470-1414
brookfieldengineering.com
Optional Accessories
RheocalcT Software
Label Printer
Barcode Scanner
Viscosity Standards
Quick Action Lab Stand
Temperature Bath
Ball Bearing Suspension
(Standard in high torque instruments)
Embedded Temperature
Probe in Sample Cup
Luer and Purge Fittings
Additional Cone Spindles
Magnetic Coupling
Protective Touchscreen Covers

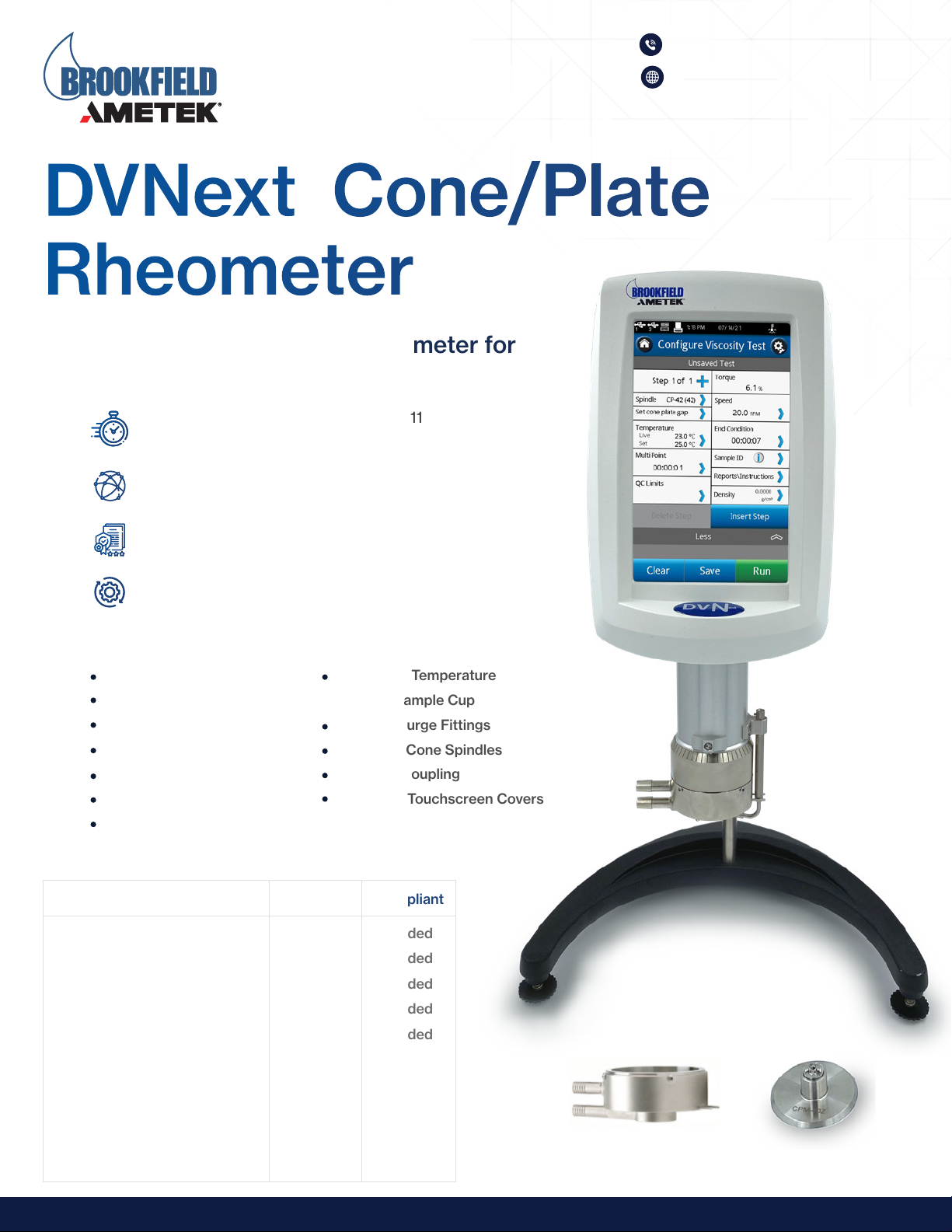

AMETEK Brookfield's latest Rheometer for
measuring small sample sizes
Sample Cup (CPA-44YZ)
Cone Spindles
*Only available in Compliant Versions
Features
7-inch Full-Color -
Touch Screen Display
Enhanced Controls
Real-Time Graphing
Supports Multiple Languages
Displayed Info:
Viscosity (cP or mPa•s)
Temperature (°C or °F)
Shear Rate/Stress
% Torque
Speed/Spindle
Step Program Status
Math Model Calculations
Viscosity Wizard
Built-in match models for data
analysis in stand-alone mode
(e.g., Casson, Bingham, Power
Law, Thix Index)
Stand-alone Programming
Digital Leveling
Internal Data Storage: 150 MB
Date and Time Stamp File
Built-In Options
Math Modeling
Temperature Control
Yield Tests
Programmable QC Limits,
Alarms, and End Conditions
GAMP*
21 CFR Part 11 Compliant*
Customizable User Access
Electronic Signatures
Uneditable PDFs
Automated Archived
Audit Trail
Integrated Temperature Control
Connected to AMETEK
Brookfield TC series Baths and
AP/SD Controllers or AMETEK
Brookfield Thermosel System.
RTD Temperature Probe
Accuracy: ±1.0% of Range
Displayed with Test Data
Repeatability: ±0.2%
Analyze characteristics such as
yield stress, flow curves (mixing,
pumping, spraying), leveling, and
recovery
USB PC Interface
provides
optional computer control and
automatic data collection
capability
brookfieldengineering.com
700-0133-AS Rev. B
DVNext Cone/Plate
Rheometer
The all-in-one instrument for measuring viscosity and yield stress with
optional 21 CFR Part 11 and GAMP compliance
Viscosity Range* cP(mPa
.
s)
.1-3k
1-32k
2.6-65k
10.5-261k
CPA-40Z and
CPM-40Z
.5mL
7.5N
DVNXLVCP
DVNXRVCP
DVNXHACP
DVNXHBCP
MODEL
Cone Spindle:
Sample Volume:
Shear Rate (sec-1):
.5-11k
5-122k
10-245k
39-982k
CPA-41Z and
CPM-41Z
2.0mL
2.0N
.2-6k
2-64k
5-128k
20-512k
CPA-42Z and
CPM-42Z
1.0mL
3.84N
2-48k
20-512k
41-1M
163-4M
CPA-51Z and
CPM-51Z
.5mL
3.84N
3-92k
39-983k
78-2M
314-7.8M
CPA-52Z and
CPM-52Z
.5mL
2.0N
.01-250
01-250
.01-250
.01-250
RPM
2.6k
2.6k
2.6k
2.6k
Number of
Increments
SPEEDS
K = 1 thousand cP = Centipoise M = 1 million mPa•s = Millipascal•seconds mL = MilliLiter e.g.Spindle CPA-40Z 7.50 x 10(rpm) = 75.0 sec
-1
*Dependant upon cone selected.
