Insight into the Future Above & beyond your expectations
Insight into the Future
Above & beyond your expectations
OPTIONS
Paste Rolling Diameter Monitoring System
Stencil Apertures Inspection System
Auto Table Adjustment for PCB Thickness
SPI Closed-loop
External Barcode Scanner for PCB Traceability
Handheld Barcode Scanner for stencil, solder paste,
squeegee traceability
OPERATOR INTERFACE
Hardware LCD Monitor, Mouse & Keyboard
Operating
System (OS)
Windows 7 or Higher
Control Method Industrial PC controlled
I/O Interface SMEMA Standard
BOARD HANDLING
Max. Size (L x W) 400 mm x 340 mm
Min. Size (L x W) 50 mm x 50 mm
Thickness 0.4~6 mm
PCB Thickness
Adjustment
Manual
(Auto is option. PCB max.
width reduced to 310 mm)
PCB max. weight 3 kg
PCB edge clearance 3 mm
PCB Bottom Clearance
15 mm (7 mm with optional auto
PCB thickness adjustment)
PCB Warpage Max. 1% diagonally
Clamping Method
Top clamp (manual) and
motorized side clamp
Support Method
Magnetic support pins, bars, blocks,
Vacuum suction
Conveyor Direction
L to R, R to L, R to R, L to L
(software control)
Conveyor Height 900 ± 40 mm
Conveyor Speed (max.) 1,500 mm/s
Conveyor Width
Adjustment
Automatic
Machine Alignment
Capability
2Cmk @ ±12.5 microns 6 sigma
Process Alignment
Capability
2Cpk @ ±25 microns 6 sigma
Core Cycle Time
(excluding printing &
cleaning time)
< 8.5 secs
Product Changeover Time < 3 mins
New Product Set-up Time < 10 mins
PERFORMANCE
OPTICAL SYSTEM
Field-of-View (FOV) 8 mm x 6 mm
Fiducial Types Circle, triangle, square, diamond, cross
Fiducial size 0.5~3.0 mm
Vision Methodology CCD camera look up & down
2D inspection
Max.100 windows to inspect missing &
insufficient (std.)
FACILITIES REQUIREMENT
Power supply AC220V ± 10% 50/60Hz
Power
Consumption
2.5kW
Air Supply 4 ~ 6Kgf/cm²

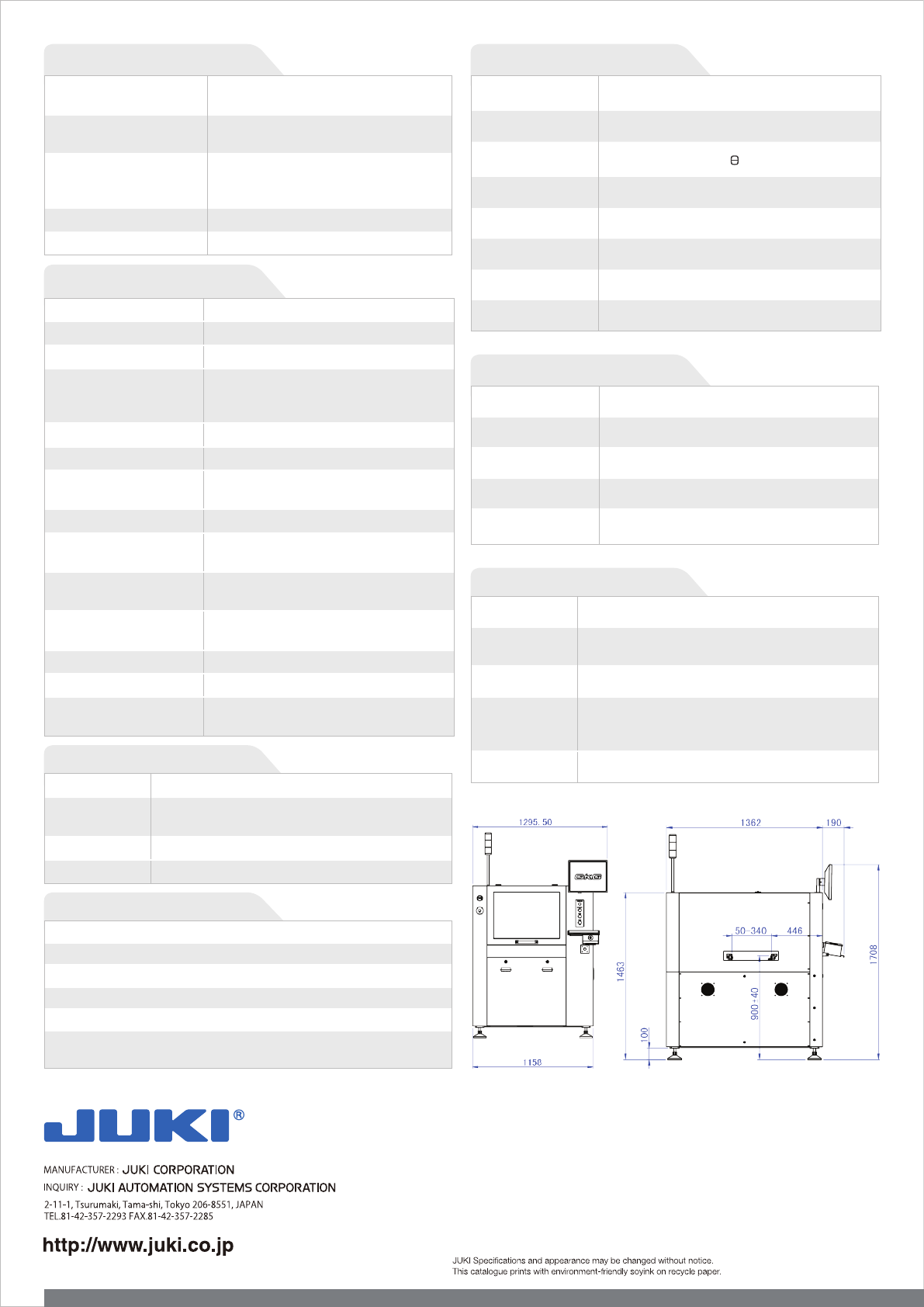

Dimension
(excluding signal
tower)
1,158 mm (L) x 1,362 mm (W) x 1,463 mm (H)
Machine Weight 1,000kg
PRINTING PARAMETERS
Stencil Frame Size
(L x W)
Adjustable, 470 mm x 370 mm to
737 mm x 737 mm
Print Gap (snap-off) 0~20 mm
Printing Table
Adjustment Range
X: ±3 mm, Y: ±7 mm
: ± 2°
Print Speed 6~200 mm/s
Squeegee Pressure 0.5~10kg (program control)
Squeegee Type Std.: Metal , Option: OPC, rubber
Squeegee Angle Std. 60°, Option 45°, 50°, 55°
Cleaning System Auto wet, dry, vacuum (software select)
