Gener al Design Basic Cont act Pr obe Family F100HP Pitch [mm/mil] 2.54 / 100 Additional definition HP Electrical specific ations T ypical cont act resistanc…
General
Design Basic Contact Probe
Family F100HP
Pitch [mm/mil] 2.54 / 100
Additional definition HP
Electrical specifications
Typical contact resistance [mOhm] 40.00
Mechanical specifications
Preload [cN] 130.00
Spring force [cN] 200.00
Nominal travel [mm] 4.30
Maximum travel [mm] 6.40
Dimensions
Total length [mm] 33.30
Tip style diameter [mm] 0.90
Barrel diameter [mm] 1.37
Materials & surfaces
Tip style 33
Plunger material Steel
Plunger plating Longtime Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Basic Contact Probes
F10033S090L200HP
Order code 1001150

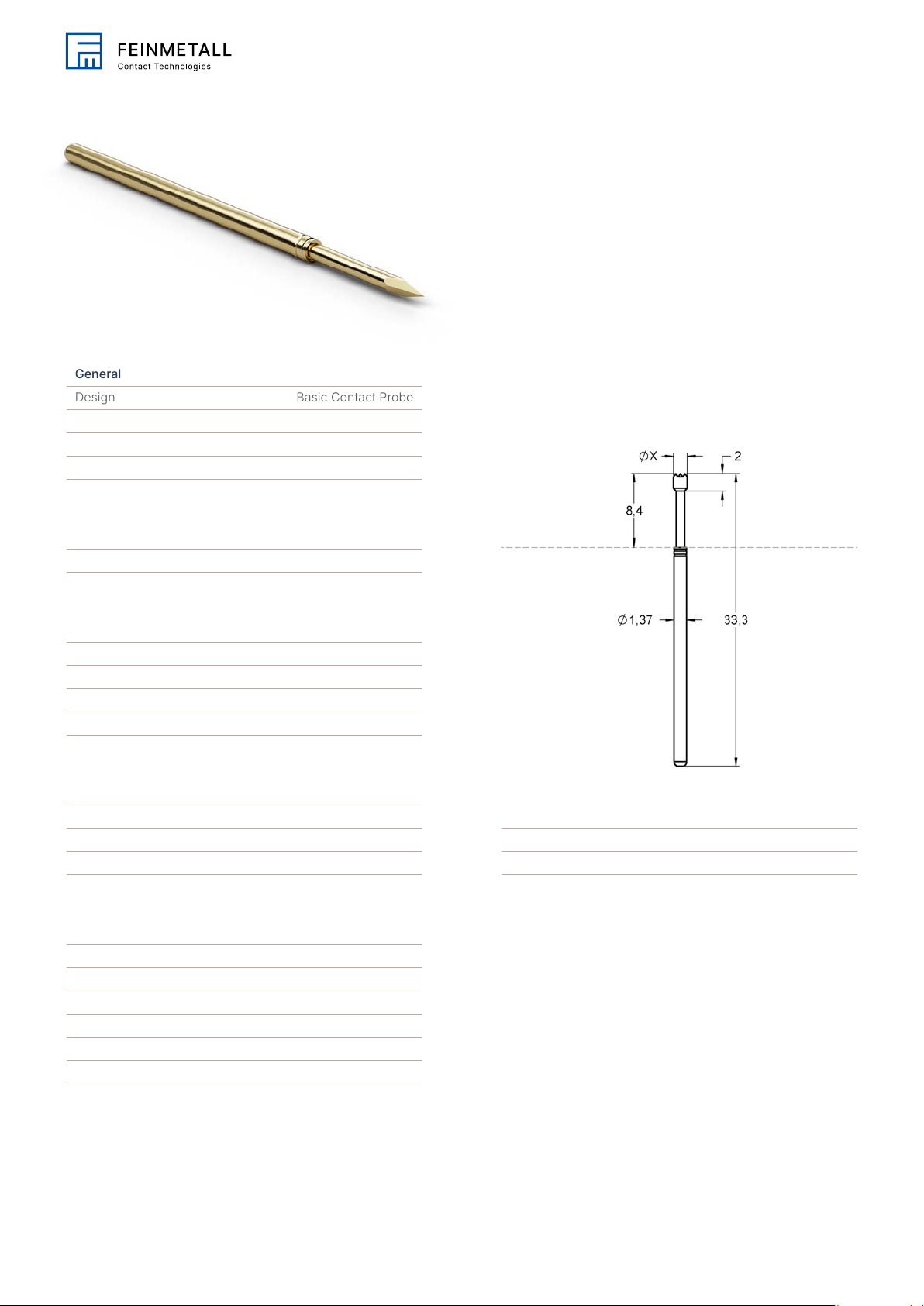

Family drawing
All measurements are in mm.

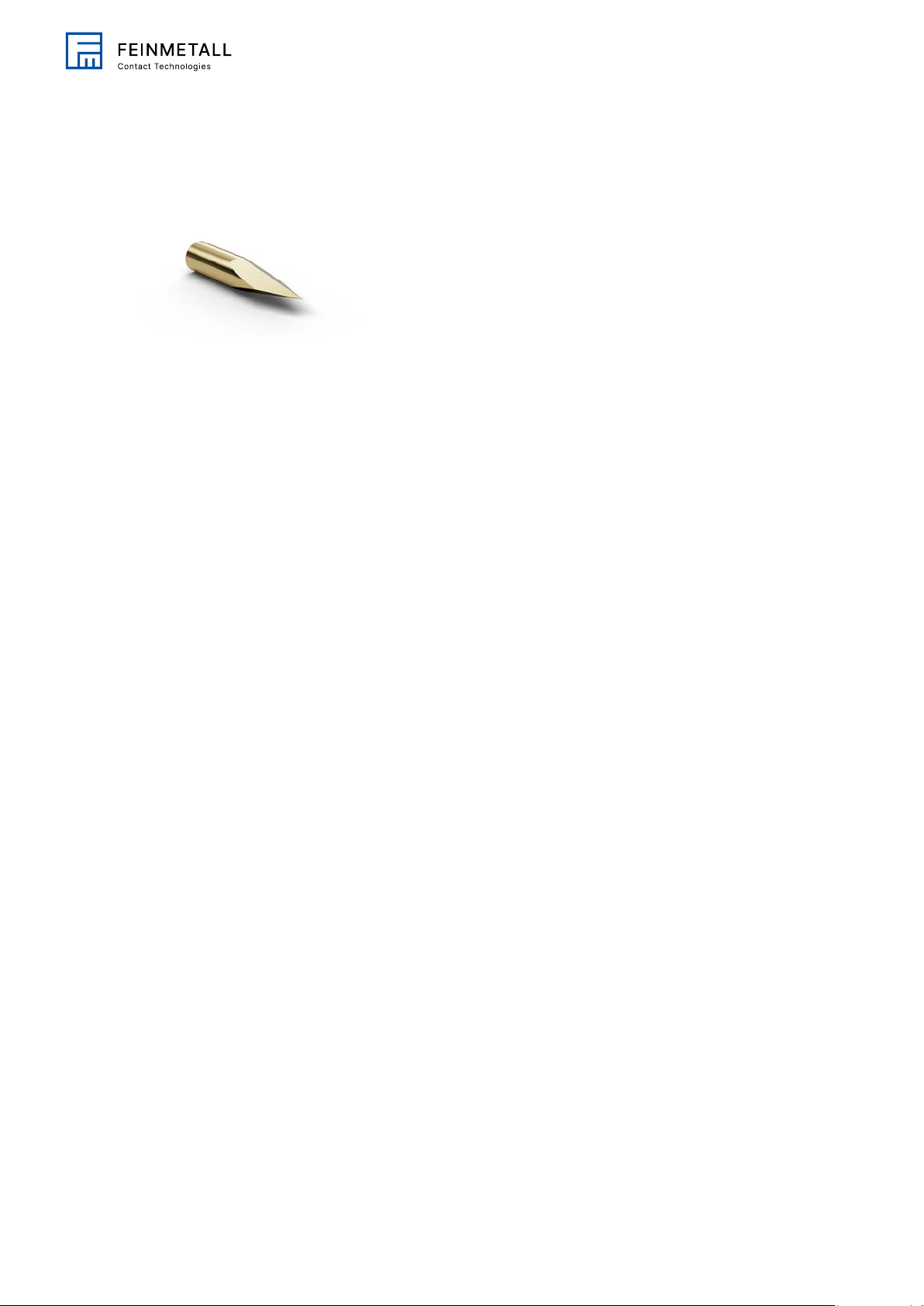

Tip style 1
