General
Design Basic Contact Probe
Family F100HP
Pitch [mm/mil] 2.54 / 100
Additional definition HP
Electrical specifications
Typical contact resistance [mOhm] 40.00
Mechanical specifications
Preload [cN] 70.00
Spring force [cN] 100.00
Nominal travel [mm] 4.30
Maximum travel [mm] 6.40
Dimensions
Total length [mm] 33.30
Tip style diameter [mm] 1.50
Barrel diameter [mm] 1.37
Materials & surfaces
Tip style 14
Plunger material Steel
Plunger plating Progressive
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Basic Contact Probes
F10014S150P100HP
Order code 1159064

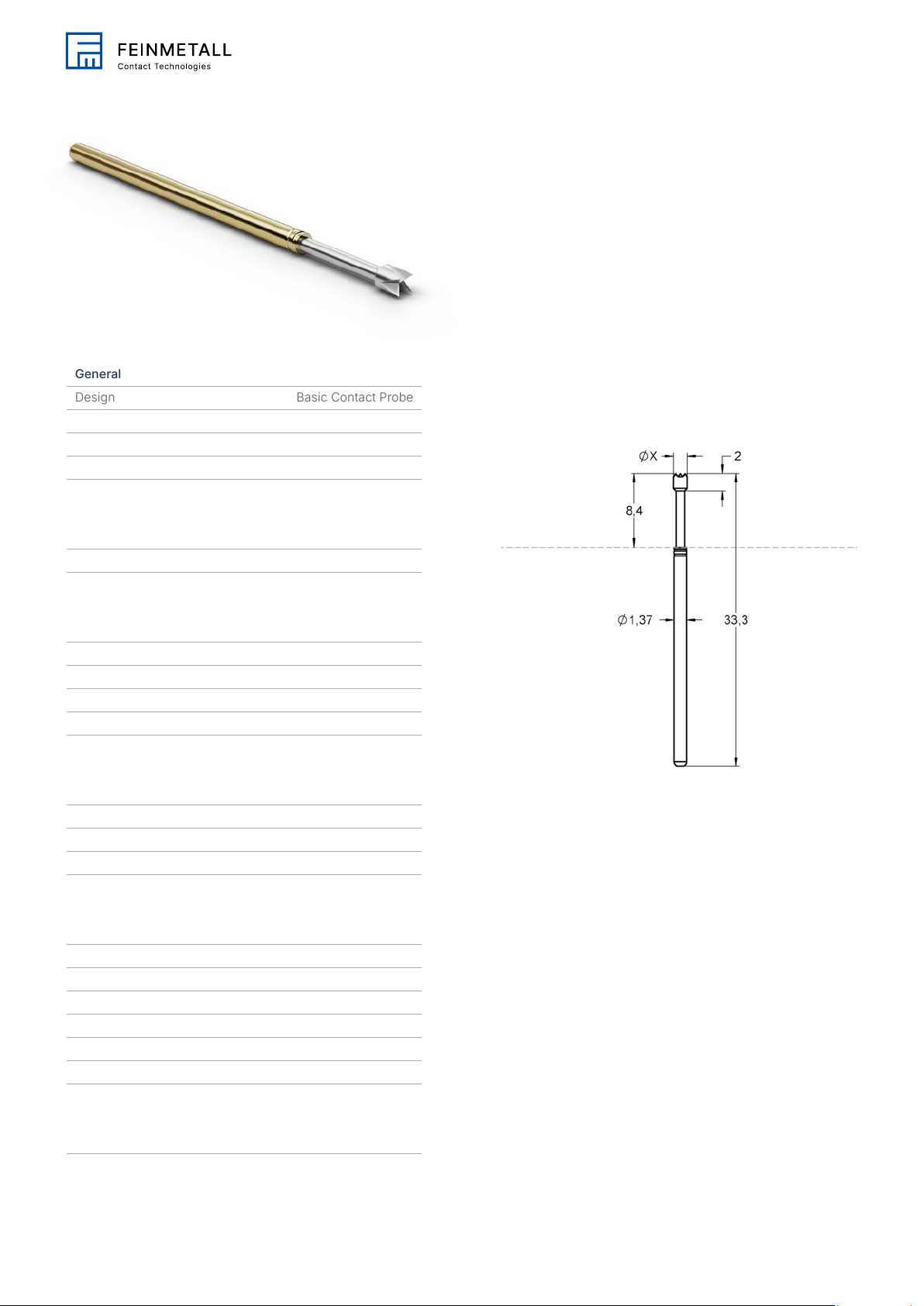

Family drawing
All measurements are in mm.
