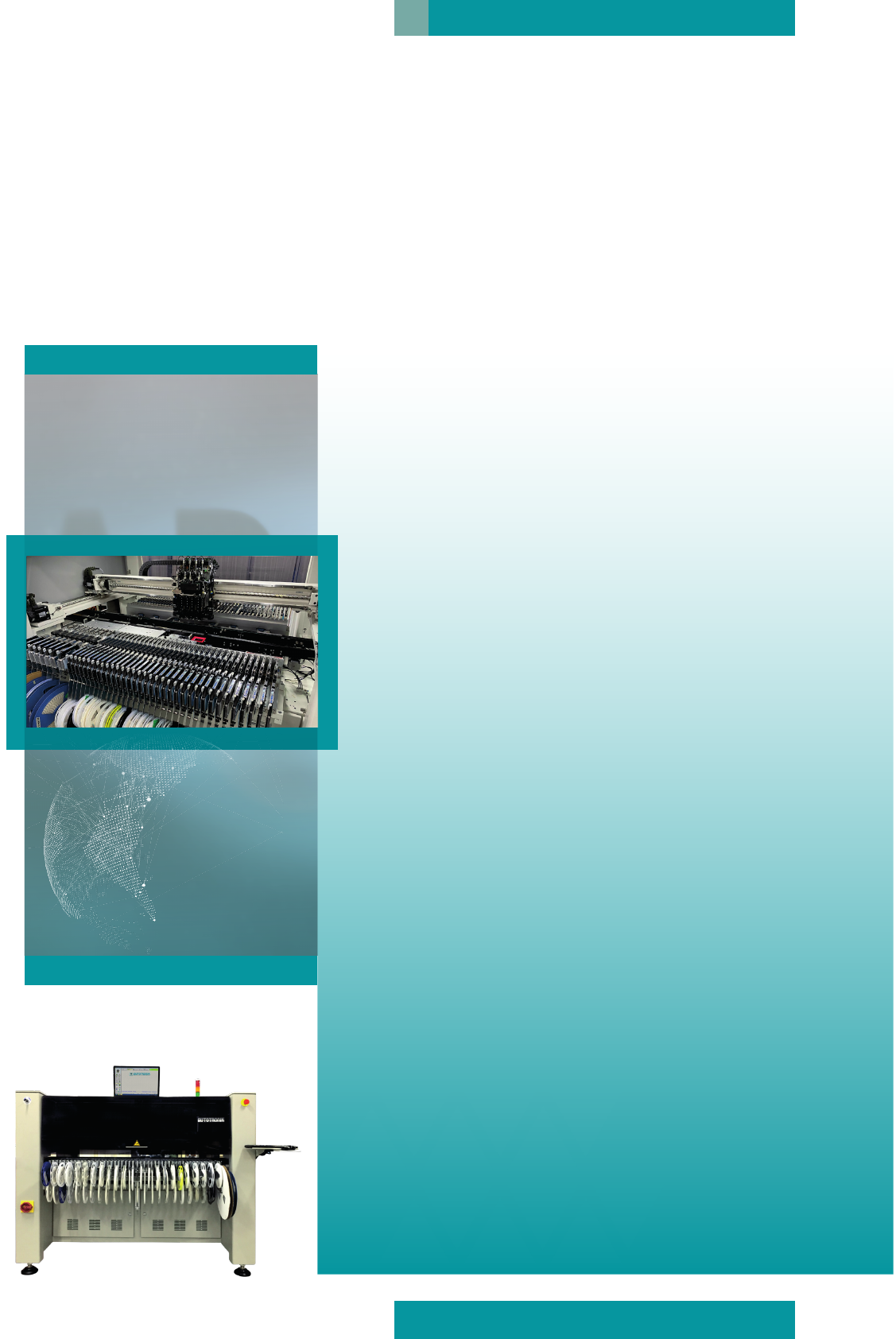

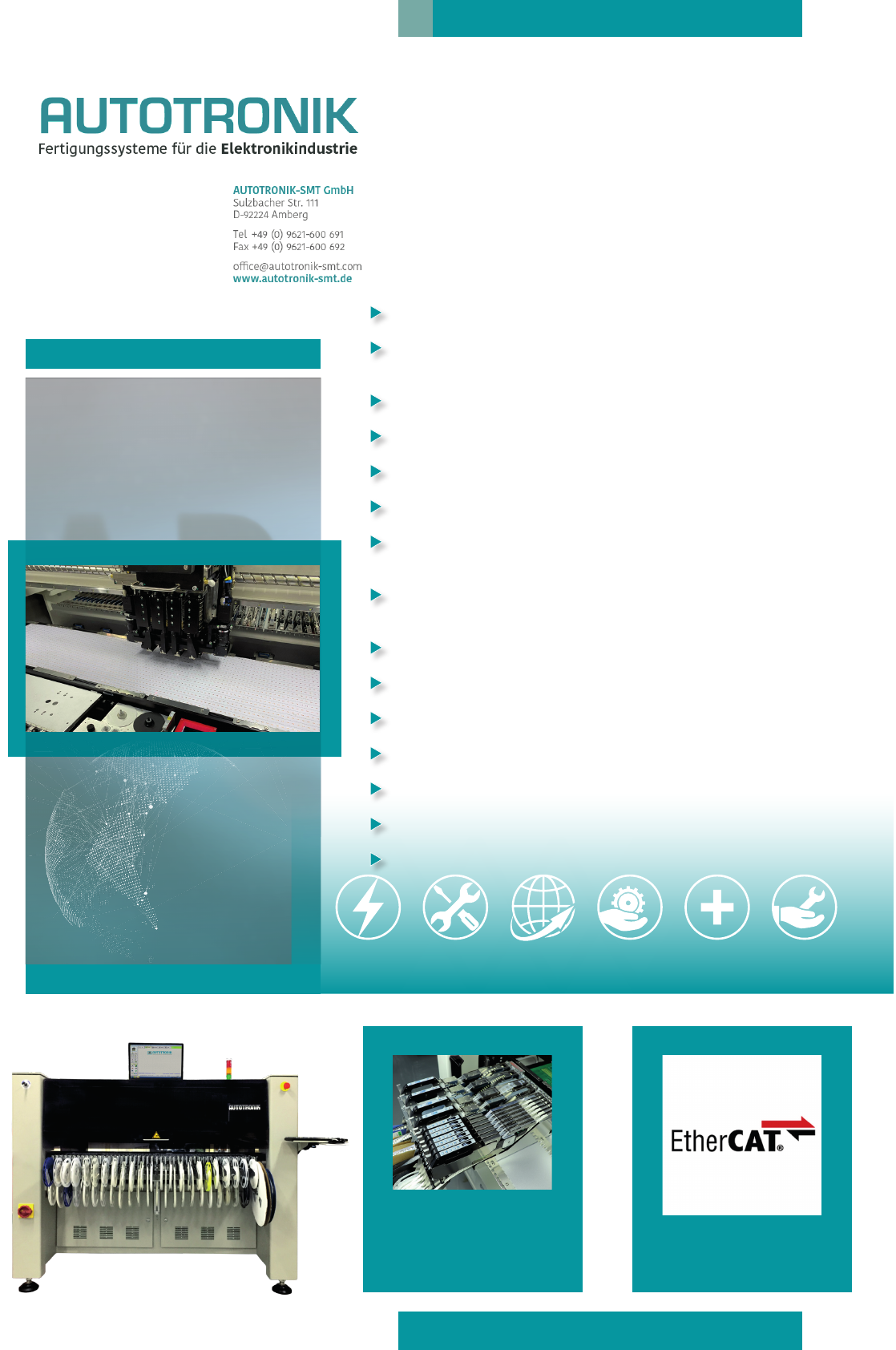

MODEL:
BA388E4-V
SMT-PICK&PLACE MACHINE
SPEZIFICATION:
• Number of Heads (Vision on the Fly): 4
• Placement rate (under optimum condition):
8800 CPH, 7000 CPH (IPC 9850)
• Feeder capacity (8mm): up to 256 Tape Feeders
• Feeder capacity (8mm) with conveyor: up to 176 Tape Feeders
• IC Tray capacity: up to 6 Wae Trays
• Component Sense: Vision detection
• Component Size:
Handled by digital head camera:
- smallest: 0.4 x 0.2 mm
- largest: 16 x 14 mm
Handled by xed digital Bottom Vision Camera:
- largest: 150 x 100 mm
• Resolution (AC Servo Motors):
- X/Y Axis: 0.005 mm
- Z Axis: 0.01 mm
• Rotation: 0° to 360° (0.09°/step)
• Placement Accuracy: +/- 0.03 mm
• X/Y Repeatability: +/- 0.01 mm
• Placement Area without conveyor:
- without Wae Tray: 1050 x 450 mm
• Placement Area with conveyor:
- without Wae Tray: 1340 x 400 mm
• Programming:
- Direct Input
- Teach-In by Camera
- CAD Access (option)
- Barcode Reader (option)
- Tracability of production data (option)
• Industrial PC with Windows 10
• Power Supply: 230VAC
• Power: 4200W
• Pressure: 75 psi (5.5 bar), max. 200L/min
• Machine Size: 1900 x 1570 x 1660 mm (L x W x H)
• Weight: 1950kg
