MODEL TPM-100F/R 0102-001 128 メカ廻り MECHANICAL DISTRIBLITION SECTION Fig. K-6 パネルボックス Panel Box 566 507 566 508 509 566 506 566 510 51 1 566 563 504 505 See Fig.K-1 Key No.4 See Fig.R-3 Key No.213 See Fig.R-1 Key No.1 1 5…
MODEL TPM-100F/R
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
127
K-5
401 630 090 8558 BRACKET 1 748K--110-401
402 630 090 8565 BRACKET 1 748K--110-402
403 630 090 8572 BRACKET 1 748K--110-403
404 630 090 8626 BRACKET 1 748K--110-404
405 630 090 8527 BRACKET 1 748K--110-405
461 630 000 7756 BOLT,HEX-SCT 13 748K--110-461
462 630 000 7633 BOLT,HEX-SCT 2 748K--110-462
463 411 141 4107 WASHER V 5X10X1 13 748K--110-463
464 411 141 6705 WASHER SPR 5 13 748K--110-464
465 411 141 4008 WASHER V 4X9X0.8 2 748K--110-465
466 411 141 2905 WASHER SPR 4 2 748K--110-466
467 411 051 1708 SCR TRS 4X6 2 748K--110-467
MODEL TPM-100F/R
0102-001
128
メカ廻り MECHANICAL DISTRIBLITION SECTION

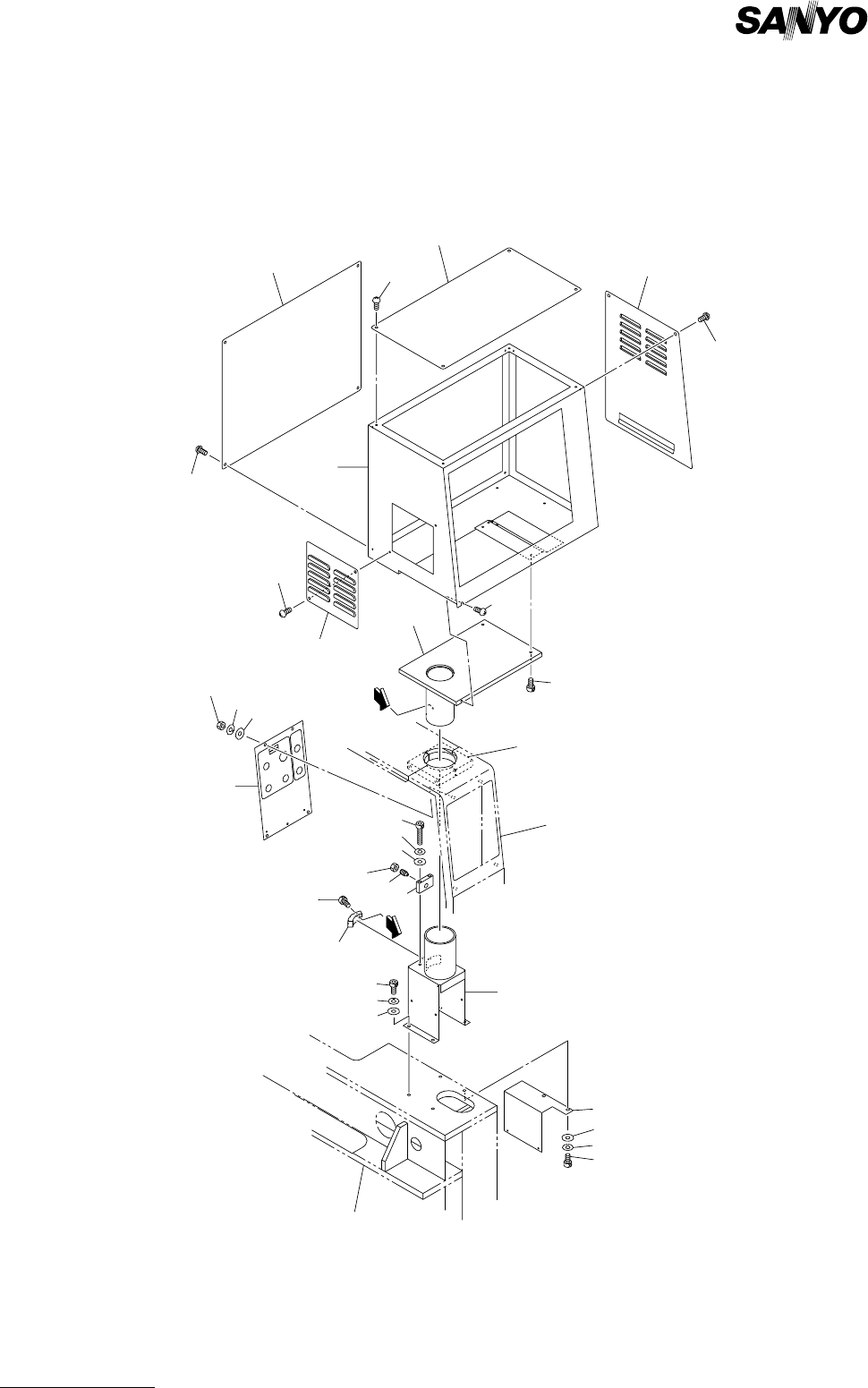

Fig. K-6 パネルボックス Panel Box
566
507
566
508
509
566
506
566
510
511
566
563
504
505
See Fig.K-1
Key No.4
See Fig.R-3
Key No.213
See Fig.R-1
Key No.11
512
564
565
562
561
565
564
570
563
502
565
562
564
501
503
567
569
568
A
A
Fig.K-6
TPM-100F/R
MODEL TPM-100F/R
0102-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
129
501 630 091 3903 PLUNGER 1 748K--110-501
502 630 090 9210 BLOCK 1 748K--110-502
503 630 090 9227 BLOCK 1 748K--110-503
504 630 090 8633 BRACKET 1 748K--110-504
505 630 090 8640 BRACKET 1 748K--110-505
506 630 090 9258 BOX 1 748K--110-506
507 630 090 8930 COVER 1 748K--110-507
508 630 090 8947 COVER 1 748K--110-508
509 630 090 8954 COVER 1 748K--110-509
510 630 090 8961 COVER 1 748K--110-510
511 630 090 9272 PANEL 1 748K--110-511
512 630 090 8534 BRACKET 1 748K--110-512
561 630 000 7800 BOLT,HEX-SCT 2 748K--110-561
562 630 000 7749 BOLT,HEX-SCT 6 748K--110-562
563 630 000 7626 BOLT,HEX-SCT 4 748K--110-563
564 411 141 4107 WASHER V 5X10X1 8 748K--110-564
565 411 141 6705 WASHER SPR 5 8 748K--110-565
566 411 051 1708 SCR TRS 4X6 13 748K--110-566
567 411 054 8506 NUT HEX 4 4 748K--110-567
568 411 141 4008 WASHER V 4X9X0.8 4 748K--110-568
569 411 141 2905 WASHER SPR 4 4 748K--110-569
570 411 118 9302 NUT HEX 10 1 748K--110-570
K-6
