4 DISPENSE VERIFICA TION Kit Part # Description PROX / PROPlus / PRO / 4-Axis PROPlus EV E RV GVPlus / GV 7365229 OptiSure ™ Automated Optical Inspection (AOI) software add-on — 7364992 OptiSure confocal laser k…
3

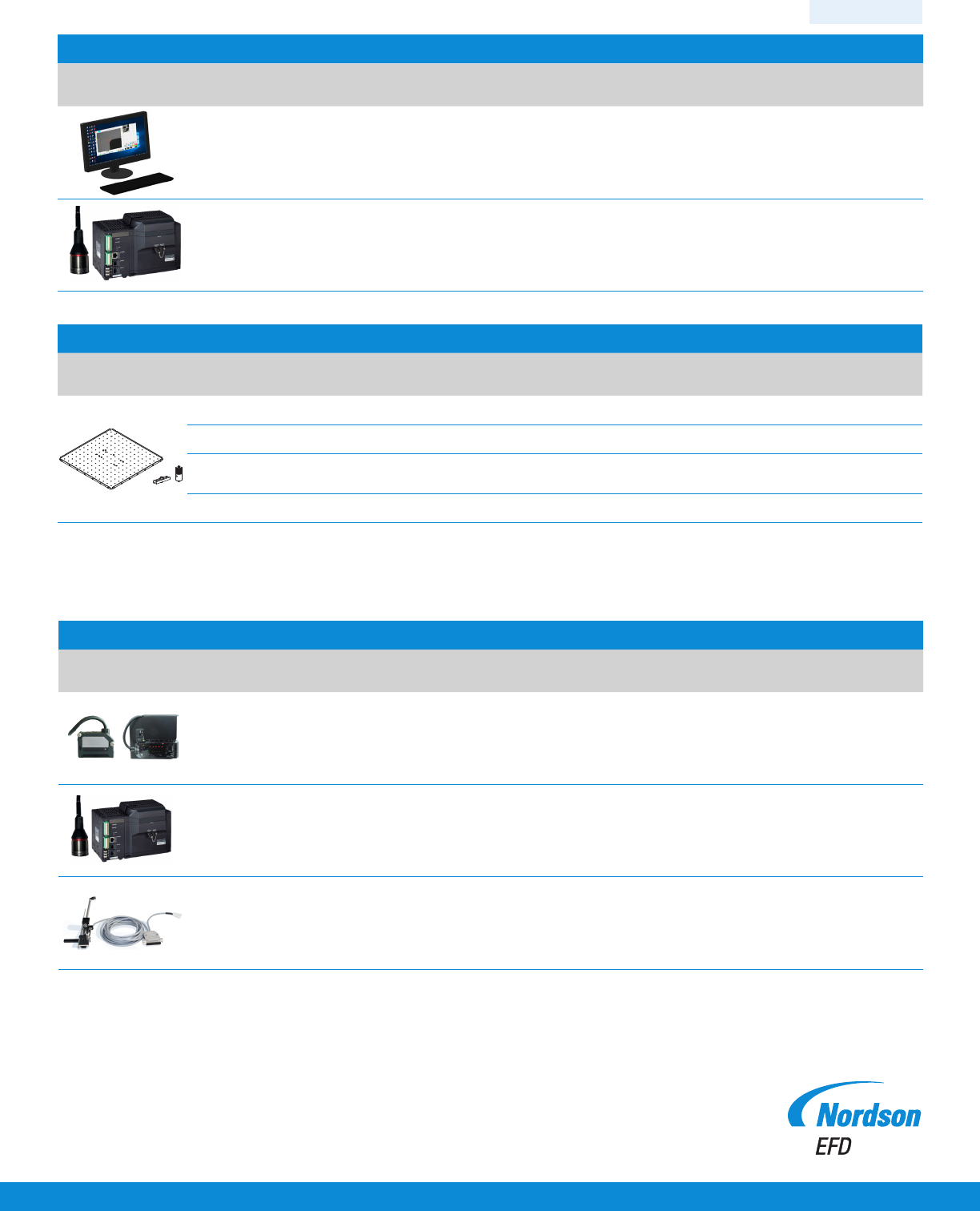

OPTIONAL VISION KITS
Vision Kit Part # Description
PROX / PROPlus / PRO
/ 4-Axis PROPlus
EV E RV GVPlus / GV
7360864
Vision kit for CCD camera with light box
(includes camera, PC, monitor, keyboard,
and mouse)
Included
—
Included
7361527
Vision kit for CCD camera with light box,
Europe (includes camera, PC, and monitor)
Note: Order keyboard and mouse separately.
Included
—
— —
7360863
Vision kit for pencil camera
(includes camera, PC, monitor, keyboard,
and mouse)
—
Included
— —
7361528
Vision kit for pencil camera,
Europe (includes camera, PC, and monitor)
Note: Order keyboard and mouse separately.
—
Included
— —
7363461
Vision kit for fixed-mount camera
(includes camera, PC, monitor, keyboard,
and mouse)
— — —
Included
—
7363672
Vision kit for fixed-mount camera,
Europe (includes camera, PC, and monitor)
Note: Order keyboard and mouse separately.
— — —
Included
—
7360867 Lens accessory kit for high-precision CCD
cameras (allows different focal lengths and
depths of field; compatible with CCD upgrade kits
7360864 and 7361527)
— — —
= Compatible
4
DISPENSE VERIFICATION
Kit Part # Description
PROX / PROPlus / PRO /
4-Axis PROPlus
EV E RV GVPlus / GV
7365229 OptiSure
™
Automated Optical Inspection (AOI)
software add-on
—
7364992 OptiSure confocal laser kit
— — —
FIXTURE PLATES
Fixture Plate Part # Description
PROX / PROPlus / PRO /
4-Axis PROPlus*
EV E RV GVPlus / GV
7028276 200 mm fixture plate
—
— —
7028277 300 mm fixture plate
—
— —
7028278 400 mm fixture plate
PROPlus4 / PRO4 optional
— —
7028279 500 mm fixture plate
—
— —
All plates include four edge levelers and four leveling mounts.
*Fixture plates shipped pre-installed on PROX / PROPlus / PRO Series models; replacement not required.
HEIGHT DETECTION KITS
Kit Part # Description
PROX / PROPlus / PRO /
4-Axis PROPlus
EV E RV GVPlus / GV
7361240 Laser B for optical height sensing of most
surfaces
— — —
7364992
Laser C for optical detection of deposit
measurements regardless of the transparency of
the fluid or the reflectivity of the deposit substrate
— — —
7361667 Touch-type mechanical height sensor
—
—
= Compatible
5

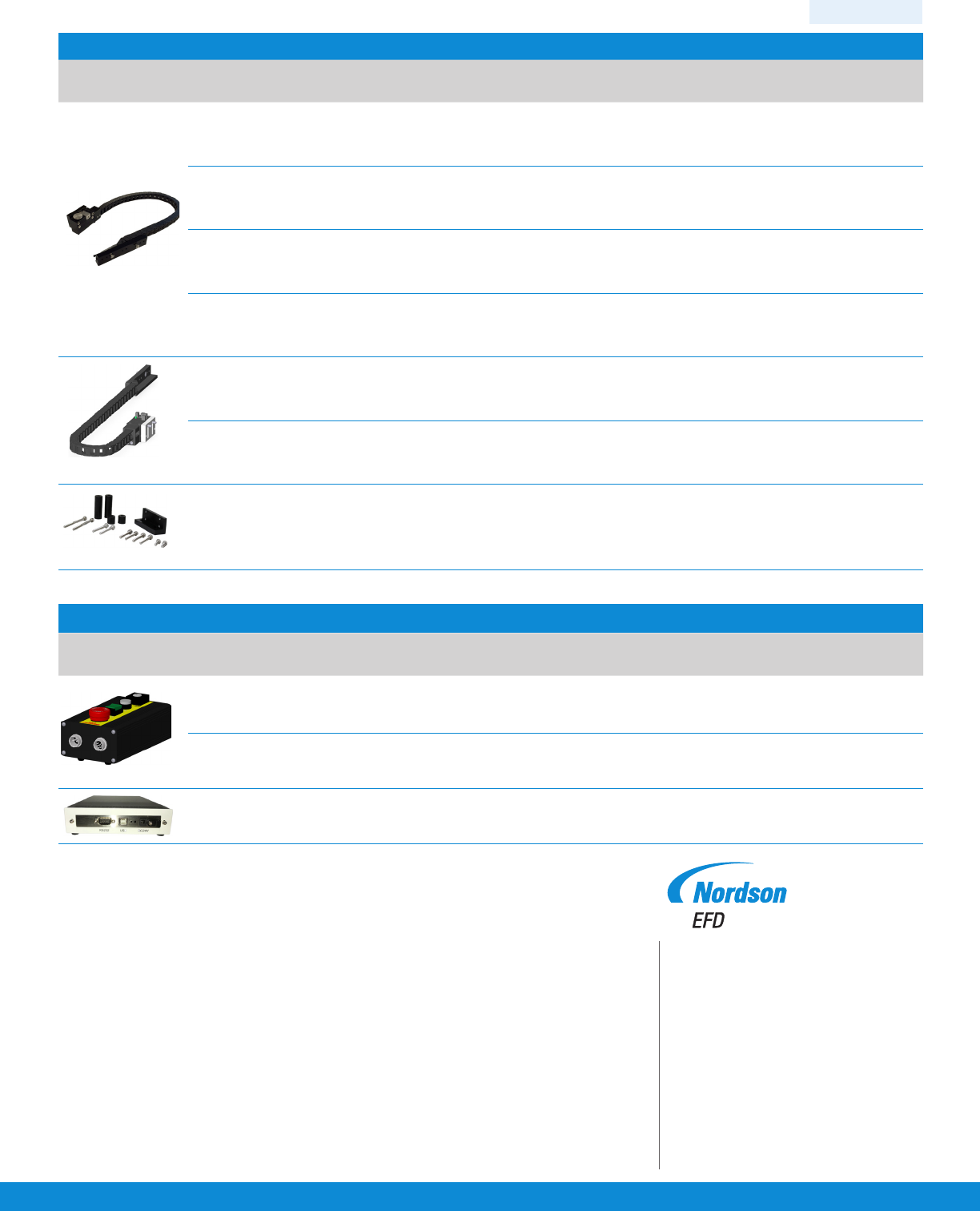

TIP DETECTION / ALIGNMENT KITS
Kit Part # Description
PROX / PROPlus / PRO /
4-Axis PROPlus
EV E RV GVPlus / GV
7366467 Tip detector for touch sensing of the tip-to-
workpiece gap (tip must contact the sensor)
— — — —
7360893 Tip detector for touch sensing of the tip-to-
workpiece gap (tip must contact the sensor)
—
—
—
7363925
Tip detector for touch sensing of the tip-to-
workpiece gap (tip must contact the sensor)
— — — — G4VPlus only
7363976
Tip detector for touch sensing of the tip-to-
workpiece gap (tip must contact the sensor)
— — — — G8V only
7360892 Tip aligner for optical sensing of the tip-to-
workpiece gap (no tip contact required)
— —
— —
7362353 Tip aligner for optical sensing of the tip-to-
workpiece gap (no tip contact required)
— — —
—
7363940* Allows the tip detector / aligner to be mounted
in the center of the robot fixture plate
—
—
*7363940 is only compatible with E3V-E6V, E3-E6, RV, and R.
OTHER ACCESSORIES
Accessory Part # Description
PROX / PROPlus / PRO /
4-Axis PROPlus
EV E RV GVPlus / GV
7363285
Start / stop accessory box and I/O checker,
standard
—
7360865
Start / stop accessory box, European and all
GVPlus / GV
7360866 Input / output expansion, 8 inputs / 8 outputs
