Built for Today. Ready for Tomorrow.
A TRUE DUAL CHAMBER
REFLOW OVEN:
• Independent control of belt
speed, zone temperature,
and convection rate
• Guaranteed process
repeatability, system to
system, site to site
• Cross-belt uniformity
unaffected by process change
on neighboring lane
• Process C
pk
controlled
regardless of recipe change
in neighboring lane
Get more out of your SMT line with Pyramax ZeroTurn. BTU’s dual chamber design eliminates process
change-over time while preserving Pyramax’s unmatched process control. Zero turnaround means that
high-volume manufacturers with high product mix, have less downtime – enabling higher productivity
from the whole line. Our dual chamber design truly isolates the two processes, with independent tem-
perature, belt speed and static pressure convection rate controls. Lead-free and leaded processes can be
at temperature, side-by-side, without affecting cross board thermal uniformity in either chamber.
Specification* Pyramax ZeroTurn
Atmosphere Air
Conveyor Speed 10-60 in/min / 25-152 cm/min
Conveyor Width (each lane) 2-12.6 in. / 51-320mm
Heated Length 150 in / 3810 mm
Heated Zones (Top/Bottom) 12 top / 12 bottom
Cooling Length 48 in / 1219 mm
Cooling Zones 2 top
Overall System Length 255 in / 6477mm
Overall System Height 58 in / 1475 mm
Overall System Width 73.5 in / 1867 mm
Voltage Range 208-480 VAC
* All specifications are subject to change without notice
Standard Features
• Lead Free
Process-Guaranteed
• 350ºC Maximum
Temperature
• Forced Impingement
Convection
• Side-to-Side Gas
Recirculation
• Flexible Platform
Configuration
• Automatic Width Adjust
• Smart Product Tracking
(SMEMA) per lane
• WINCON Control Software
• Electronic Over-Temperature
Safety System
Options
• Programmable Heating
and Cooling Rates
• Belt and Rail Conveyors
• Fine Mesh Conveyor Belts
• Closed Loop
Convection Control
• High Power Heaters (all zones)
• Center Supports
• UL 508A and CE Compliant
• Barcode Reader
To contact BTU please go to www.btu.com/support-contact-sales.htm
308
258
208
158
108
58
8
0.0 0.7
1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.3
Te mperature (Celsius)
Minutes (slope degrees/second)
LEAD FREE PROFILE
Furnace
Control
Unit
Speed
Controller
Pressure
Tr ansducer

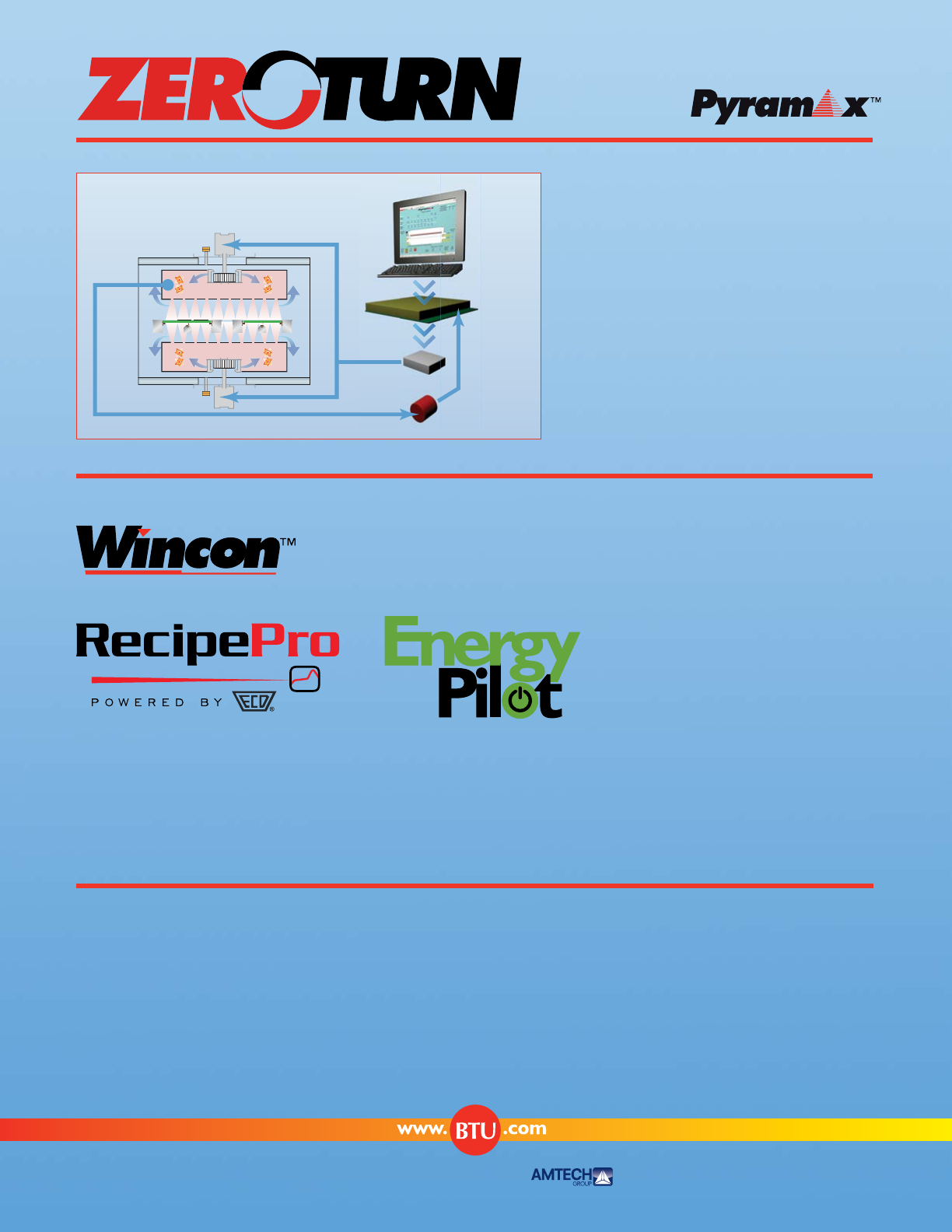

CLOSED LOOP
CONVECTION CONTROL
BTU’s exclusive Closed Loop Convection Control
provides maximum flexibility in process control.
• Side-to-side recirculation enhances
temperature uniformity
• Guaranteed process repeatability, system to
system, site to site
• Unmatched convection efficiency reduces zone
temperature setpoints.
the industry’s most powerful control system with:
• Automatic recipe generator
• Reduces oven set-up time
• Exclusive convection rate algorithm
• Automatically reduces reflow oven
operating costs
• Takes advantage of idle time
• Quick recovery using SMEMA or
remote sensor
INDUSTRY
4.0 READY
BTU is ready for Industry 4.0 and
offers many solutions today
• SECS/GEM
• OPC Interface
• Custom MES Interface
