16/24-Port Gigabit Unmanaged Switch
DGS-1016C/1024C
The DGS-1016C and DGS-1024C 10/100/1000 Mbps unmanaged switches are economical,
plug-and-play networking switch solutions for SOHO and small and medium businesses
wanting to benefit from the increased bandwidth of Gigabit Ethernet. They provide 16 or
24 10/100/1000 Mbps ports that enable you to easily expand your network and provide
a quick way to upgrade your network to fast connectivity.
Upgrade to Gigabit Networking
With data transfer speeds of up to 2000 Mbps at full-duplex, these switches are ideal for
quick file transfers, online gaming and smooth streaming media. They feature easy-to-
access Ethernet ports with LED indicators per port to easily distinguish link status. With
Auto-MDI/MDIX crossover, just plug in the cables and you’re ready to go.
Conserve Energy
The DGS-1016C and DGS-1024C support IEEE 802.3az Energy-Efficient Ethernet, which
saves energy and reduces heat automatically without sacrificing performance or
functionality. The switches can detect when a connected computer is shut down or
when there is no Ethernet traffic and can automatically reduce the power used for that
port, cutting power usage substantially. In addition, the switch optimizes power usage
for each port for the length of cable connected to it, using only as much power as is
required. Both of these features work together to help you save power automatically.
Reliable Plug and Play Installation
The DGS-1016C and DGS-1024C are plug-and-play devices that require no configuration,
so setup is simple and hassle-free, and you can easily connect multiple computers,
share files, music, and video across your home or small office network, or even create
a multiplayer gaming environment. IEEE 802.3x flow control on each port minimizes
dropped packets when the port’s receiving buffer is full, giving you a more reliable
connection for all of your connected devices.
Features
Fast Connectivity
• Sixteen or twenty-four (DGS-1016C/DGS-
1024C)
Gigabit LAN ports for high-speed wired
connections
• Plug-and-play installation for convenience
Energy-Efficient and Eco-Friendly
• Reduces power to a port when there is no
traffic
• Optimizes power usage for a port for the
length of cable connected to it
• Energy-efficient design reduces heat
generated and allows switch to run silently
Gigabit High-Speed Networking
Gigabit ports allow you to connect up to 16
or 24 devices for fast file transfers and smooth
media streaming
Intelligent Data Streaming
QoS support enables uninterrupted VoIP
calls, smooth streaming video, and quick file
transfers over your network
Energy Efficient
Uses 802.3az Energy-Efficient Ethernet to
reduce power usage automatically without
sacrificing performance
Product Highlights
DGS-1016C/1024C
16/24-Port Gigabit Unmanaged Switch
Smooth Streaming
These switches support QoS, which prioritizes network traffic so that
time-sensitive data is delivered efficiently, even during bursts of high
data traffic. This helps ensure an optimal experience for streaming media
and VoIP calls.
Technical Specifications
General DGS-1016C DGS-1024C
Device Interfaces • 16 x 10/100/1000 Mbps LAN ports • 24 x 10/100/1000 Mbps LAN ports
Standards • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Functionality
Switching Capacity • 32 Gbps • 48 Gbps
Advanced Features • Auto-MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9,216 bytes jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Auto-negotiation for each port
• Quality of Service (8 queues, strict mode)
• Auto-MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Supports 9,216 bytes jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Auto-negotiation for each port
• Quality of Service (8 queues, strict mode)
Data Transfer Rates • Ethernet:
• 10 Mbps (half-duplex)
• 20 Mbps (full-duplex)
• Fast Ethernet:
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
• Gigabit Ethernet
• 2000 Mbps (full-duplex)
• Ethernet:
• 10 Mbps (half-duplex)
• 20 Mbps (full-duplex)
• Fast Ethernet:
• 100 Mbps (half-duplex)
• 200 Mbps (full-duplex)
• Gigabit Ethernet
• 2000 Mbps (full-duplex)
Transmission Method • Store-and-forward • Store-and-forward
MAC Address Table Size • 8,000 entries • 8,000 entries
DGS-1016C

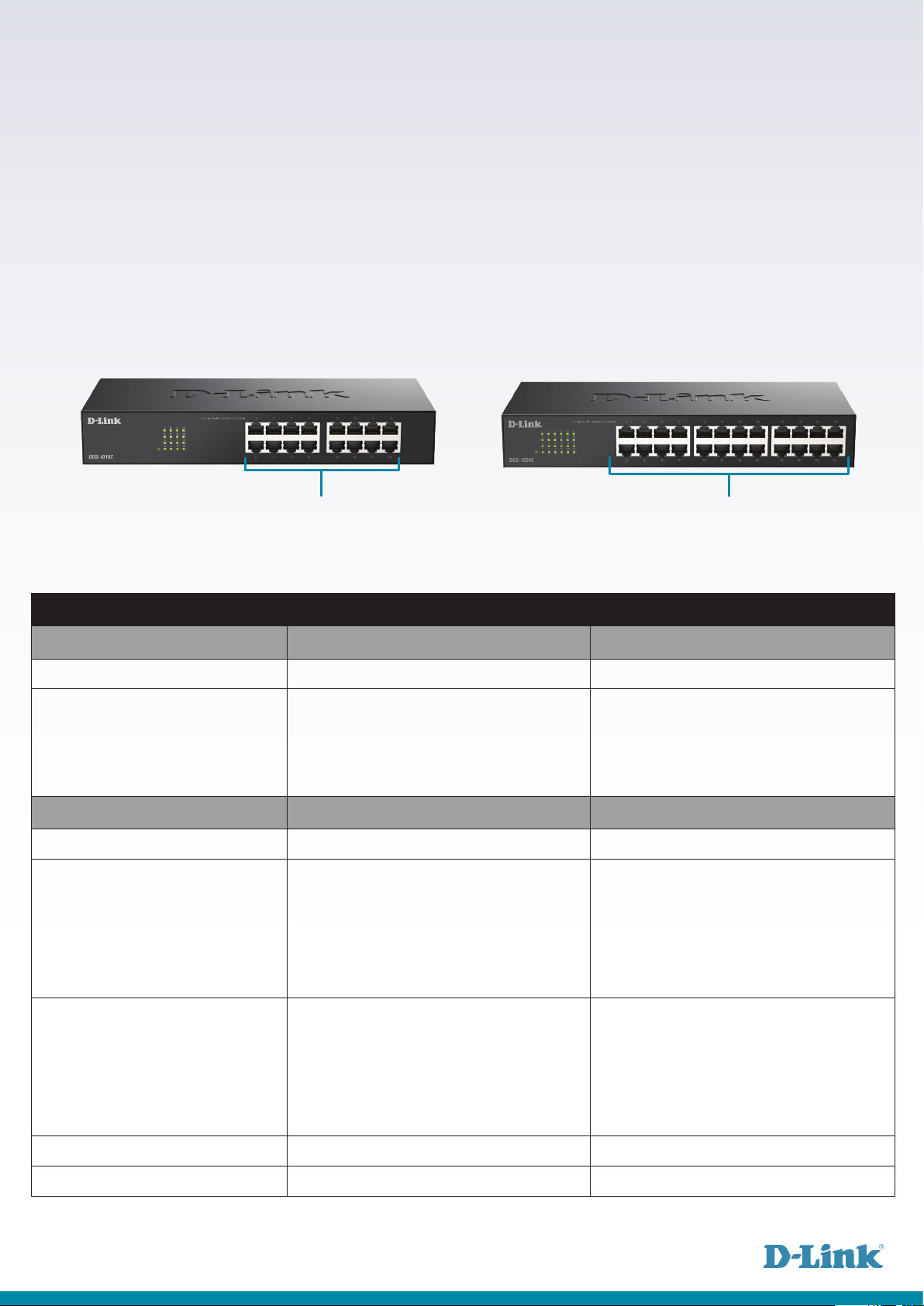

Sixteen Gigabit Ethernet Ports
Twenty-four Gigabit Ethernet Ports
DGS-1024C
Specifications are subject to change without notice. D-Link is a registered trademark of D-Link
Corporation and its overseas subsidiaries. All other trademarks belong to their respective owners.
©2024 D-Link Corporation. All rights reserved. E&OE.
DGS-1016C/1024C
16/24-Port Gigabit Unmanaged Switch
C1 1.00 WW
Packet Filtering/Forwarding Rates • Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port
RAM Buffer • 512 KB per device • 512 KB per device
Physical
LED Indicators • Per port: Link/Activity/Speed
• Per device: Power
• Per port: Link/Activity/Speed
• Per device: Power
Media Interface Exchange • Auto-MDI/MDIX adjustment for all ports • Auto-MDI/MDIX adjustment for all ports
Dimensions • 280 x 126 x 44 mm (11.02 x 4.96 x 1.73 in) • 280 x 180 x 44 mm (11.02 x 7.09 x 1.73 in)
Power Consumption • Standby: 2.98 W
• Maximum: 9.26 W
• Standby: 4.4 W
• Maximum: 15.08 W
Temperature • Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -40 to 70 °C (-40 to 158 °F)
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -40 to 70 °C (-40 to 158 °F)
Humidity • Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
Maximum Heat Dissipation • 31.6 BTU/h • 51.45 BTU/h
Emissions (EMI) • CE Class A
• FCC Class A
• VCCI Class A
• BSMI Class A
• CE Class A
• FCC Class A
• VCCI Class A
• BSMI Class A
Safety • UL
• CB
• LVD
• BSMI
• UL
• CB
• LVD
• BSMI
Order Information
Part Number Description
DGS-1016C 16-Port Gigabit Unmanaged Switch
DGS-1024C 24-Port Gigabit Unmanaged Switch
