Improve dispensing
performance and reduce
maintenance and inventory
costs.
Universal UM25 module:
n
Reduces maintenance costs with rebuildable modules
n
Simplifies service with less downtime
n
Minimizes inventory costs with single-platform design
n
Accepts numerous dispensing technologies
The Universal UM25 module improves dispensing
performance with accurate hot melt adhesive delivery.
A flexible design provides compatibility with Universal
applicators and existing HMS applicator installations.
A flexible design provides compatibility with Universal
applicators and accepts numerous dispensing
technologies, including Summit™, CF®, Signature™,
SureWrap® and MiniBead nozzles.
The pneumatically-actuated 25-millimeter-wide module
includes an innovative seal cartridge that significantly
simplifies in-house rebuilding to help reduce maintenance
costs and improve service life. Individual kits are available
for on-site seal replacement and major sub-component
rebuilding. Nordson also offers economical rebuild services
through the ESP
™
Equipment Services Program for factory-
quality rebuilding.
Common Universal parts minimize inventory costs and
simplify service. A patented single-screw clamp permits quick
nozzle replacement, enabling fast changeovers and trouble-
free cleaning. Compatibility with the OptiStroke
™
needle
stroke detection system reduces product waste and confirms
hot melt adhesive dispensing performance.
Universal
™
UM25 Module

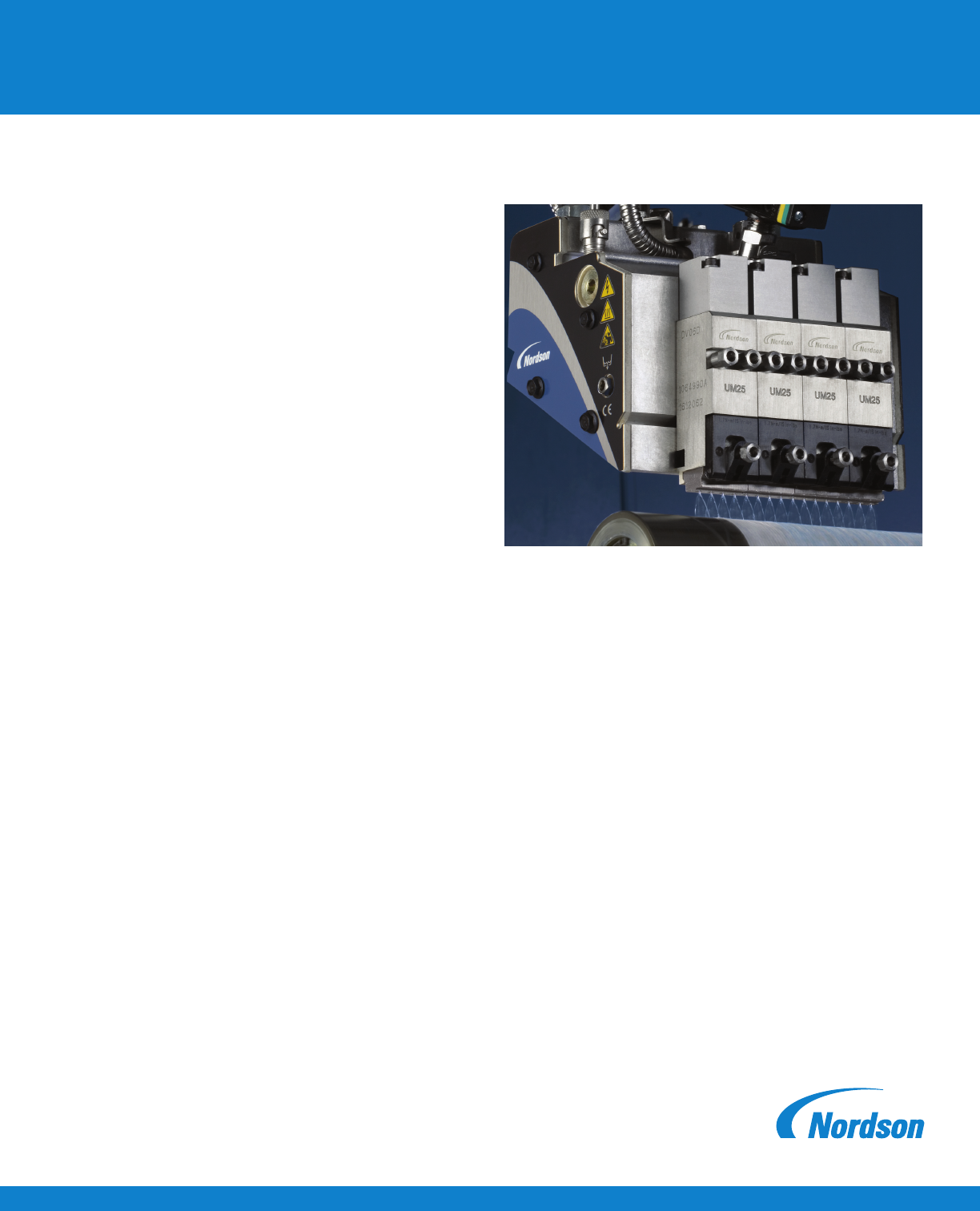

Universal applicator with UM25 modules and Universal Summit nozzles
Nordson Corporation
11475 Lakeeld Drive
Duluth, GA 30097-1511
(800) 683-2314
nordson.com
Universal
™
UM25 Module
NWL-11-5715
Issued 11/11
© 2007, 2011 Nordson Corporation
All Rights Reserved.
Printed in U.S.A.
Nordson reserves the right to make
design changes between printings.
For more
information,
speak with your
Nordson
representative
or contact
your Nordson
regional office.
United States
Duluth, Georgia
(800) 683-2314 Phone
(866) 667-3329 Fax
Europe
Luneburg, Germany
(49) 4131-894-0 Phone
(49) 4131-894-149 Fax
Japan
Tokyo, Japan
(81) 3-5762-2700 Phone
(81) 3-5762-2701 Fax
Asia/Australia/
Latin America
Amherst, Ohio
(440) 985-4496 Phone
(440) 985-1096 Fax
Specifications
Module Width 25 millimeters
Nozzle Compatibility Universal nozzles and adapters
Operating Temperature 70° to 205° C (160° to 400° F)
Working Hydraulic Pressure 13.8 to 55.2 bar (200 to 800 psi)
Maximum Hydraulic Pressure 89.6 bar (1300 psi)
Maximum Hydraulic Flow 110 grams per minute at 10,000 centipoise,
14 grams per square meter at 300 meters per minute
Actuation Air Pressure
1
4.1 bar (60 psi) recommended
Cycle Rate
2
Up to 2,500 cycles per minute or 24 milliseconds for on/off cycle
Control Voltage Depends on solenoid used
Notes:
1
Oil-free air must be used.
2
Maximum number of cycles depends on operating and control air pressures and adhesive viscosity.

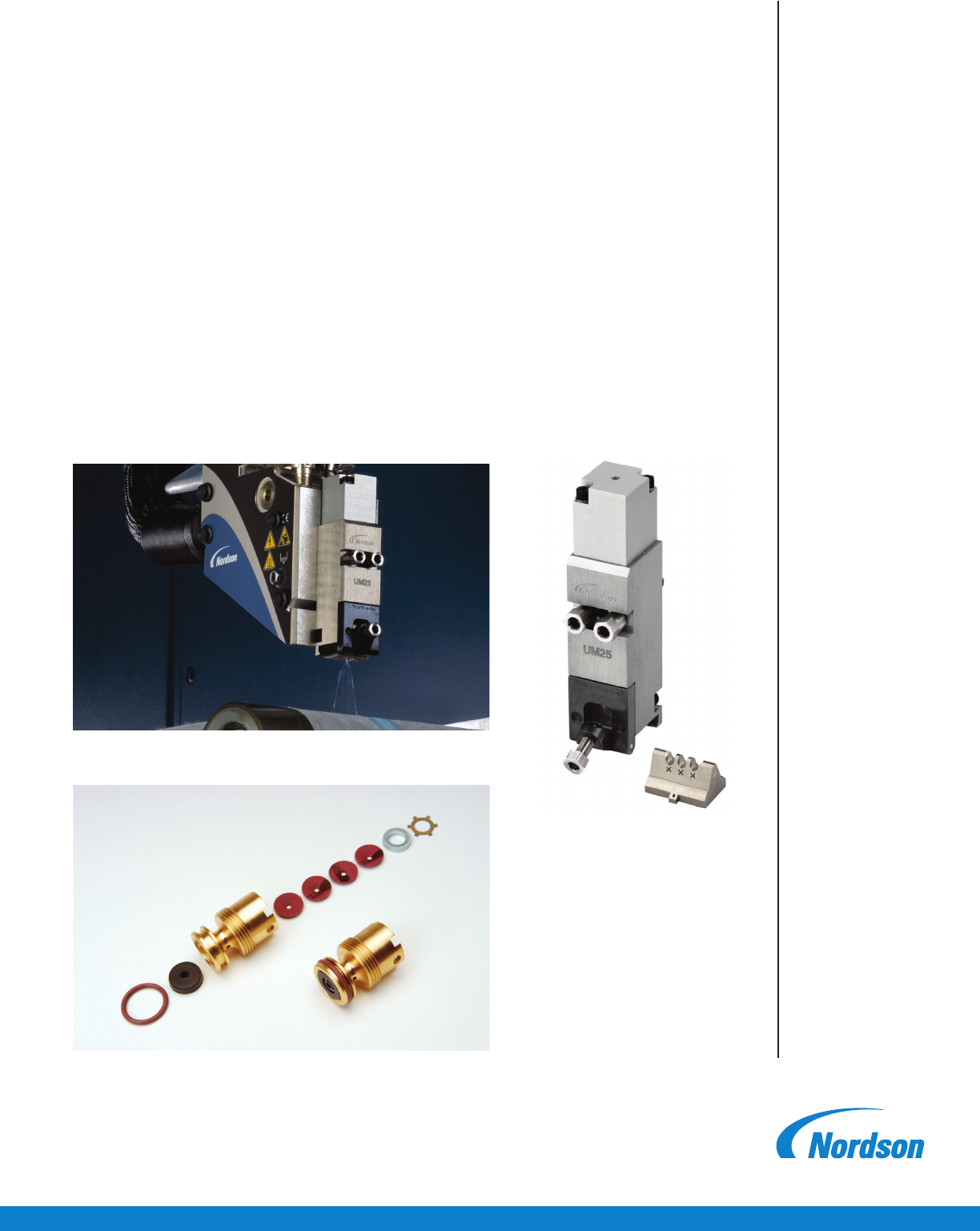

Proven valve technology helps maximize productivity with reliable, consistent hot melt
adhesive dispensing.
Individual rebuild kits for on-site seal and major sub-component replacement reduce
maintenance costs.
Replace nozzles quickly with
patented single-screw clamp.
