4 3 Feeder Floating Detection 20 (Before February 2006) Feeder KGB-081015 10 1 1 8 2 3 1 13 7 4 6 12 9 Right 10 5 14 12 10 1 1 8 2 3 1 13 7 4 6 12 9 LEFT Front Back 12 15 10 14 10 1 1 8 16 3 1 13 7 4 6 12 9 Right 10 5 14…
4
3

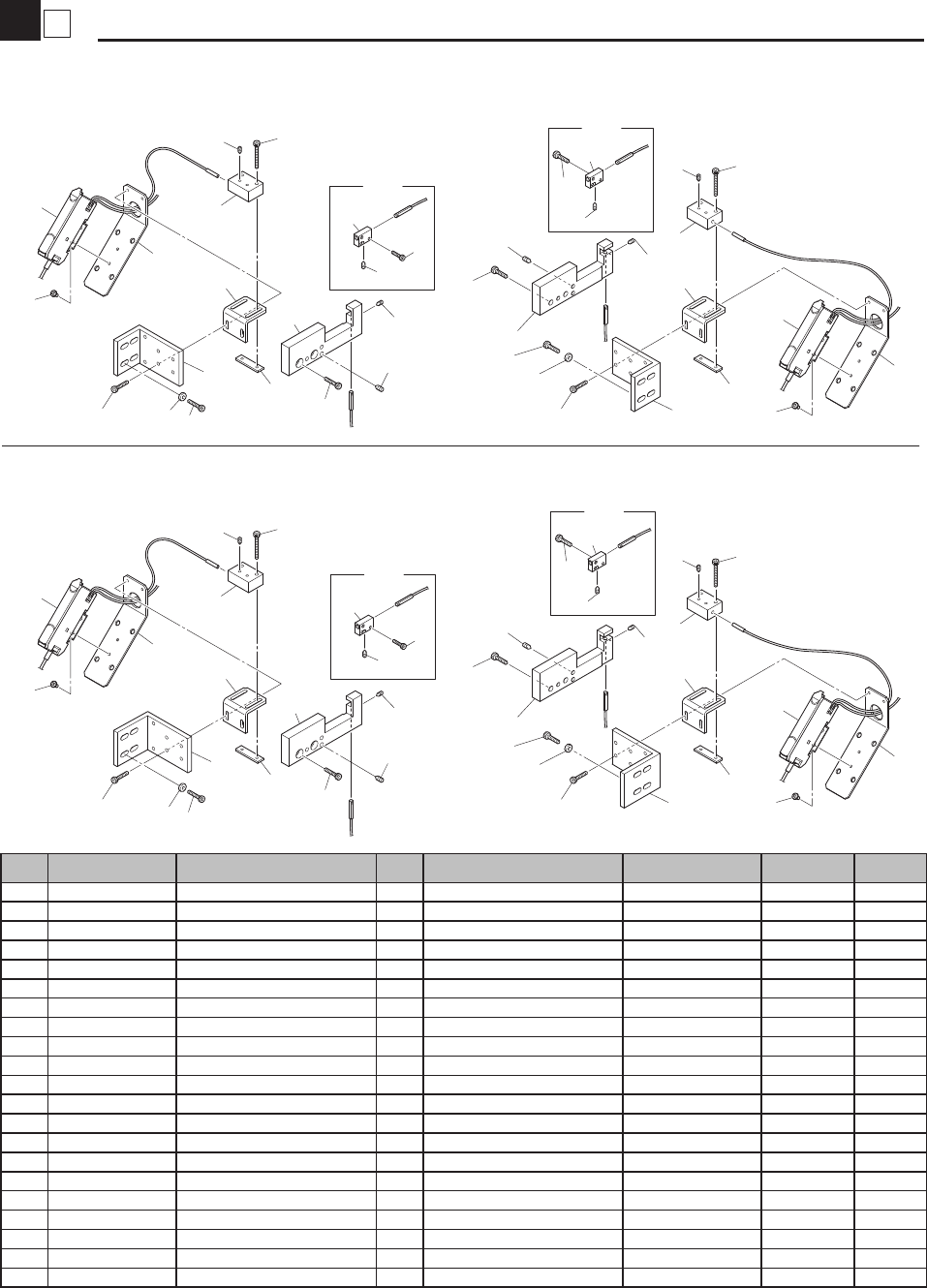

Feeder Floating Detection 20 (Before February 2006)
Feeder
KGB-081015
10
11
8
2
3
1
13
7
4
6
12
9
Right
10
5
14
12
10
11
8
2
3
1
13
7
4
6
12
9
LEFT
Front
Back
12
15
10
14
10
11
8
16
3
1
13
7
4
6
12
9
Right
10
5
14
12
10
11
8
16
3
1
13
7
4
6
12
9
LEFT
12
15
10
14
17
18
14
17
18
14
FES
FES
17
18
14
17
18
14
FES
FES
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M3455-11X SENSOR ASSY 1
2 KV7-M3901-00X BRACKET SENSOR2 1
3 KG7-M3906-00X BRACKET 6 1
4 KV7-M3910-01X BRACKET SENSOR,1 1
5 KGA-M3941-00X BRACKET 4-1,SENSOR R 1
5-1 KGA-M3941-01X BRACKET 4-1,SENSOR R 1 (2003/4/1) M330117 OK
5-2 KGA-M3941-02X BRACKET 4-1.SENSOR R 1 (2004/2/24) M420119 OK
6 KGA-M3951-00X BLOCK,SENSOR 1
7 KGA-M3952-00X BRACKET,AMP. 1
8 91317-03012 BOLT HEX.SOCKET HEAD 2
9 91317-03020 BOLT HEX.SOCKET HEAD 2
10 91317-04012 BOLT HEX.SOCKET HEAD 6
11 92907-04200 WASHER PLANE 4
12 92A08-03304 SET SCREW 2
13 98907-03006 SCREW BINDING HEAD 2
14 92A08-05310 SCREW,SET 3
15 KGA-M3942-00X BRACKET 4-2,SENSOR R 1
15-1 KGA-M3942-01X BRACKET 4-2,SENSOR R 1 (2003/4/1) M330117 OK
15-2 KGA-M3942-02X BRACKET 4-2,SENSOR R 1 (2004/2/24) M420119 OK
16 KV7-M3901-10X BRACKET SENSOR2 1
17 KGA-M3943-00X BRACKET 4-3.SENSOR R 1
