General
Design Step Probe
Family F737SP
Pitch [mm/mil] 4.00 / 157
Additional definition SP
Electrical specifications
Typical contact resistance [mOhm] 25.00
Mechanical specifications
Preload [cN] 80.00
Spring force [cN] 300.00
Nominal travel [mm] 12.00
Maximum travel [mm] 14.30
Pointing accuracy +/- [mm] 0.15
Thread M2
Tool size [mm] 3.0
Dimensions
Total length [mm] 62.80
Projection height [mm] 24.80
Tip style diameter [mm] 1.65
Barrel diameter [mm] 2.65
Press ring diameter [mm] 3.60
Materials & surfaces
Tip style 16
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Step Probes
F73716B0003G300SP
Order code 1015617

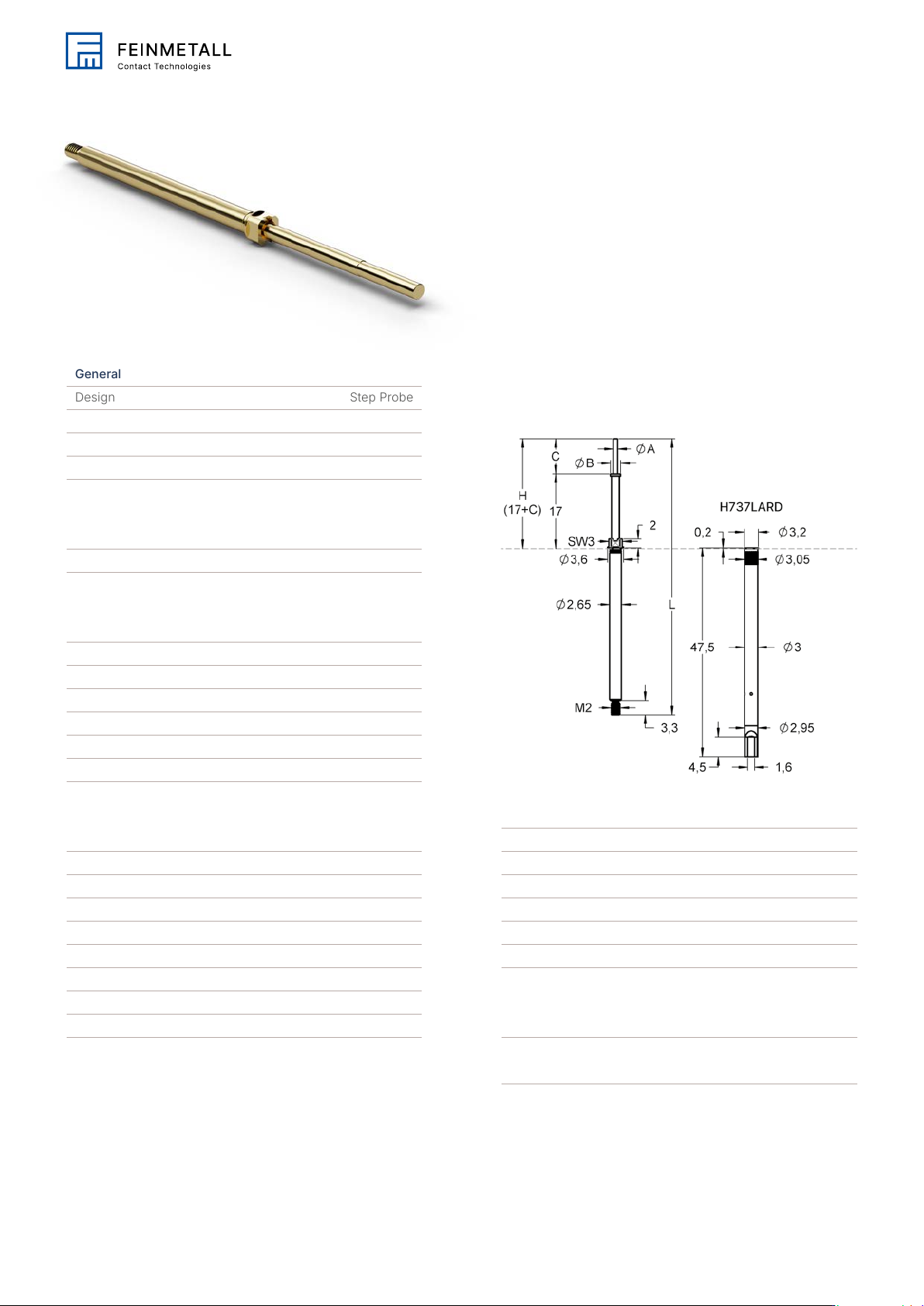

Family drawing
All measurements are in mm.

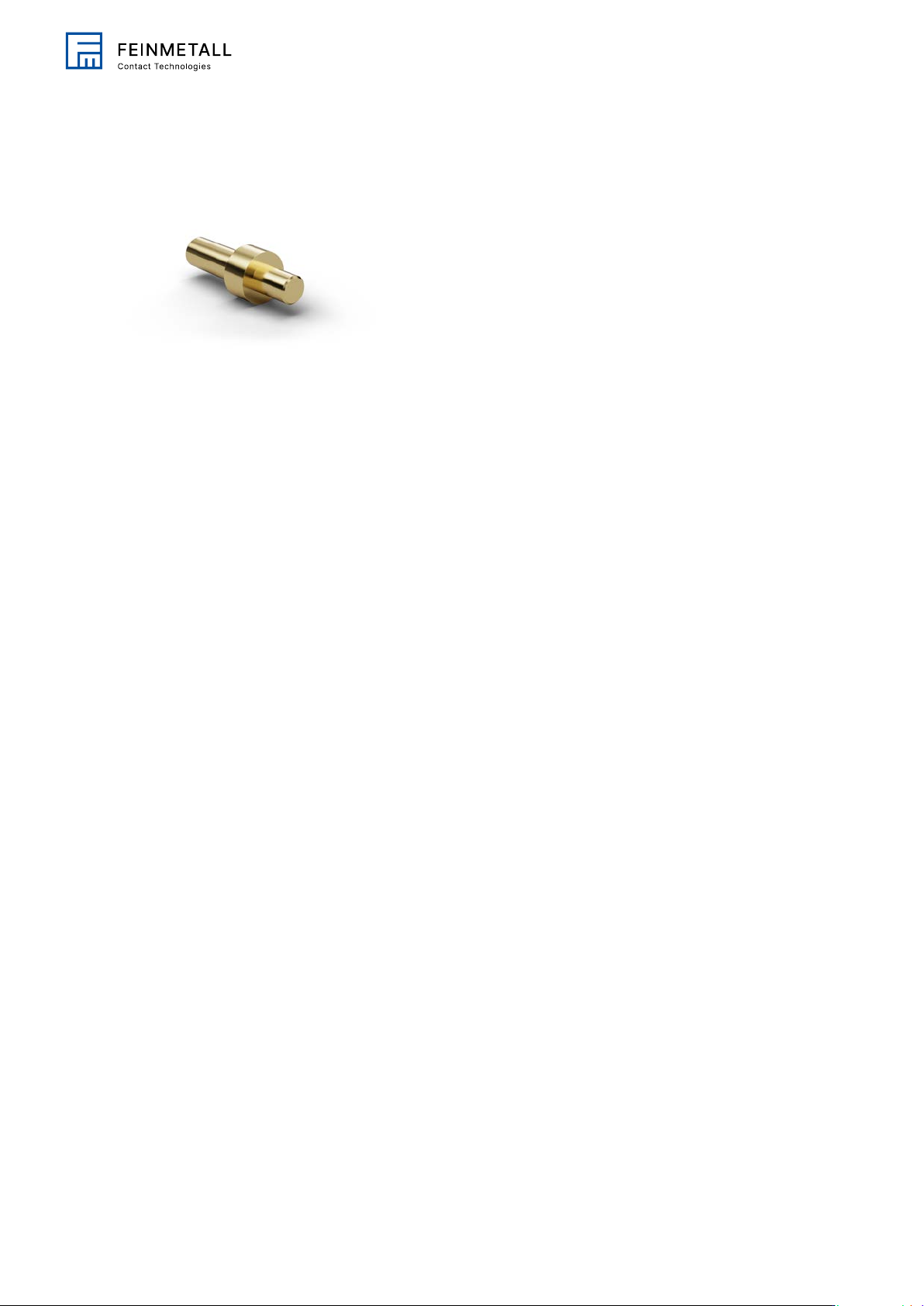

Tip style 1
