THE DEK TQ IS YOUR COMPETITIVE ADV ANT AGE More about the DEK TQ Printer platform Linear drives, clamping systems, and innovative conveyors That standard 3-stage conveyor with its new o-belt printing ensures quick and e…
DEK TQ PRINTER PLATFORM
MAXIMUM QUALITY AND PERFORMANCE
PAIRED WITH HIGH FLEXIBILITY
Super-fast, exceptionally precise, and a real space-saver – the numbers speak
for themselves: Core cycle times from 5 to 6.5 seconds, wet-printing accuracy
of ±17.0 microns @ 2 C
pk
, and a footprint from 1.3 to 1.95 square meters.
Maximum flexibility thanks to two versions: DEK TQ for boards up to 400 mm x
400 mm and DEK TQ L for boards up to 600 mm x 510 mm.
The machine achieves its exceptional speed in part through its three-stage
transport and its unique NuMotion controllers with fiber-optic wiring. Newly
developed drives, off-belt printing and innovative clamping systems ensure a
new level of accuracy and an extremely stable printing process – certified by
ASMPT because the precision of each machine is measured and documented
prior to delivery.
With the Dual Access Cover for paste cartidge changeover without stopping the
printer, automatic Smart Pin Support and a series of more smart features, the
printers run on average for more than eight hours without a single user assist.
And closed-loop links with SPI systems guarantee maximum efficiency.
The printer platform fits seamlessly into the Open Automation concept and
delivers with IPC-HERMES-9852 and IPC-CFX board-related M2M and M2H
communication along the line and integrates seamlessly with MES, ERP and
AIV fleet management systems. In addition, a wide range of options enables
even more advanced degrees of paste printing automation in the integrated
smart factory.
Innovative printhead
With integrated paste height
control and a new squeege that’s
faster and more accurate.
Newly developed, exible high-
speed stencil cleaning system
With extra-large fabric rolls, easy replaceable
cleaning body and a new dispenser system for the
cleaning medium. Easy change of cleaning and
fabric roll width.
Smart Pin Support
Automatic and exible support
for setting pins with verication of
pin position and height reduces
manual assists.
DEK TQ
INNOVATIONS
THE DEK TQ IS YOUR
COMPETITIVE ADVANTAGE
More about the
DEK TQ Printer platform
Linear drives,
clamping systems, and
innovative conveyors
That standard 3-stage conveyor
with its new o-belt printing
ensures quick and extremely
stable printing processes.
DEK All Purpose
Clamping (APC)
Universal and exible clamping
system that automatically adapts to
the board shape and thickness thanks
to software-control linear drives.
With its many interface standards, the DEK TQ
printer platform ts seamlessly into the integrated
smart factory while its growing number of options
automates setup changeovers and minimizes
operator assists.
Maximum printing quality
New clamping process for o-belt printing, an
innovative printhead and drive, and full-area
pneumatic stencil clamping
Maximum precision
Wet-print accuracy of up to ±17.0 microns @ 2 C
pk
Paste printing for 0201m components
Maximum throughput
Core cycle time of 5 seconds (DEK TQ) and
6.5 seconds (DEK TQ L)
Fast 3-stage transport
Linear drives, innovative clamping systems,
o-belt printing, NuMotion controller
Up to 8 hours without assists
Understencil cleaning system with 22-meter
fabric roll and
7-liter cleaning fluid supply,
automatic paste management, and
automatic Smart Pin Support
Open, easy to integrate
IPC-HERMES-9852, closed-loop to SPI,
WORKS Operations Information Broker, IPC-CFX
Ecient programming
New instinctive software and oine
programming with WORKS software
Best oorspace performance
Footprint of only 1.3 square meters (DEK TQ)
and 1.95 square meters (DEK TQ L)
Back-to-back
The perfect solution for
dual-conveyor lines
Edition 5/01-2023 | All rights reserved. All rights reserved. | Order No.: A22-ASMPT-A310-EN | Printed in Germany | © ASMPT GmbH & Co. KG
All information and illustrations in this brochure are provided “as is” and without any warranties of any kind, whether expressed or implied, including but not limited to,
implied warranties of satisfactory quality, tness for a particular purpose and/or correctness.
The contents of this brochure are for general information purposes only, do not constitute advice, and are subject to change without notice. ASMPT therefore makes no
warranties or representations regarding the use of the content, details, specications or information contained in this brochure in terms of their correctness, accuracy,
adequacy, usefulness, timeliness, reliability or otherwise, in each case to the fullest extent permitted by law. Please contact ASMPT for the most current information.
Any specic performance features and/or capabilities will only be binding if contractually agreed upon.
All product names are brands or trademarks of ASMPT or other suppliers. Unauthorised use by third parties may violate the rights of their owners.
ASMPT GmbH & Co. KG
Rupert-Mayer-Strasse 48 | 81379 Munich | Germany | Phone: +49 89 20800-22000 | Email: smt-solutions.de@asmpt.com
asmpt.com | smt.asmpt.com

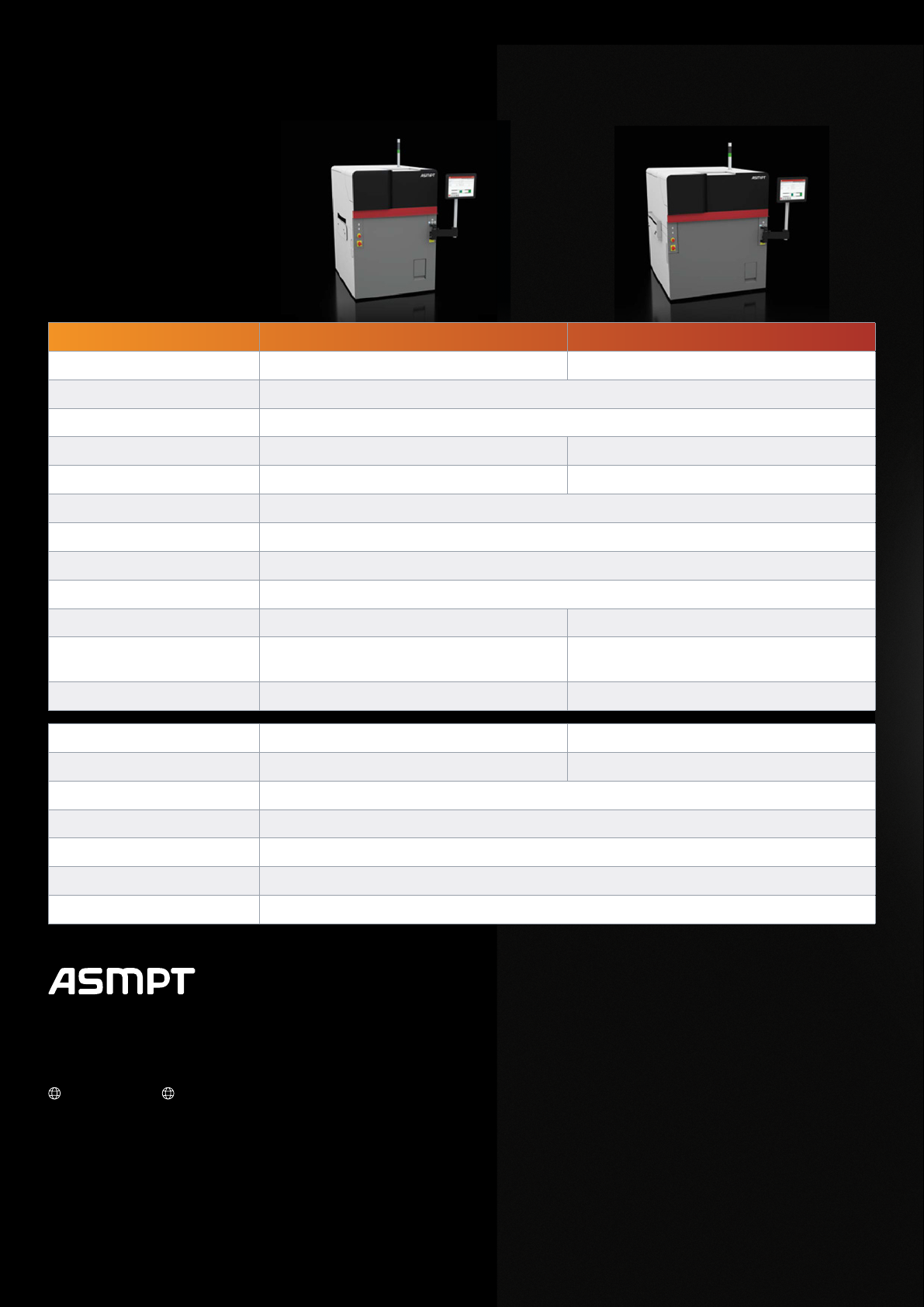

Machine type DEK TQ DEK TQ L
Standard configuration Description
Machine accuracy > 2.0 C
mk
@ ±12.5 microns (±6 sigma)
Wet-printing accuracy > 2.0 C
pk
@ ±17.0 microns (±6 sigma)
Shortest core cycle time (CCT) 5 seconds 6.5 seconds
Maximum print area 400 mm (X) × 400 mm (Y) (1-stage conveyor) 560 mm (X) × 510 mm (Y) (1-stage conveyor)
Controller Nu-Motion controller
Axis drive Each linear drive with high-precision encoders for camera axis and understencil cleaning
Squeegee pressure control Software-controlled, motorized with closed-loop feedback
Stencil positioning Automatic loading system with drip dray for squeegee
Min. substrate size 50 mm (X) × 50 mm (Y) 50 mm (X) × 50 mm (Y)
Max. substrate size
250 mm (X) × 400 mm (Y) (3-stage conveyor)
400 mm (X) × 400 mm (Y) (1-stage conveyor)
300 mm (X) × 510 mm (Y) (3-stage conveyor)
600 mm (X) × 510 mm (Y) (1-stage conveyor)
Machine dimensions (approx.) 1000 mm x 1300 mm x 1600 mm (L × W × H) 1300 mm x 1500 mm x 1600 mm (L x W x H)
Options
Automatic Smart Pin Support 30-pin magazine (4-mm and 12-mm pins) up to 60-pin magazine (4-mm and 12-mm pins)
DEK Paste Management Automatic solder paste application with automatic paste roll height control
Dual Access Cover Easy paste cartridge/pot exchange without printer and line stop
DEK All Purpose Clamping Flexible and totally software-controlled vertical and lateral clamping
High Flow Vacuum Special large-area vacuum system incl. flexible tooling box – ideal for carriers
Closed-loop link to SPI systems Expanded solder paste control with ProDEK
DEK TQ printer platform
