Customized Die Bonding Solutions
with Swiss Precision
T-8000

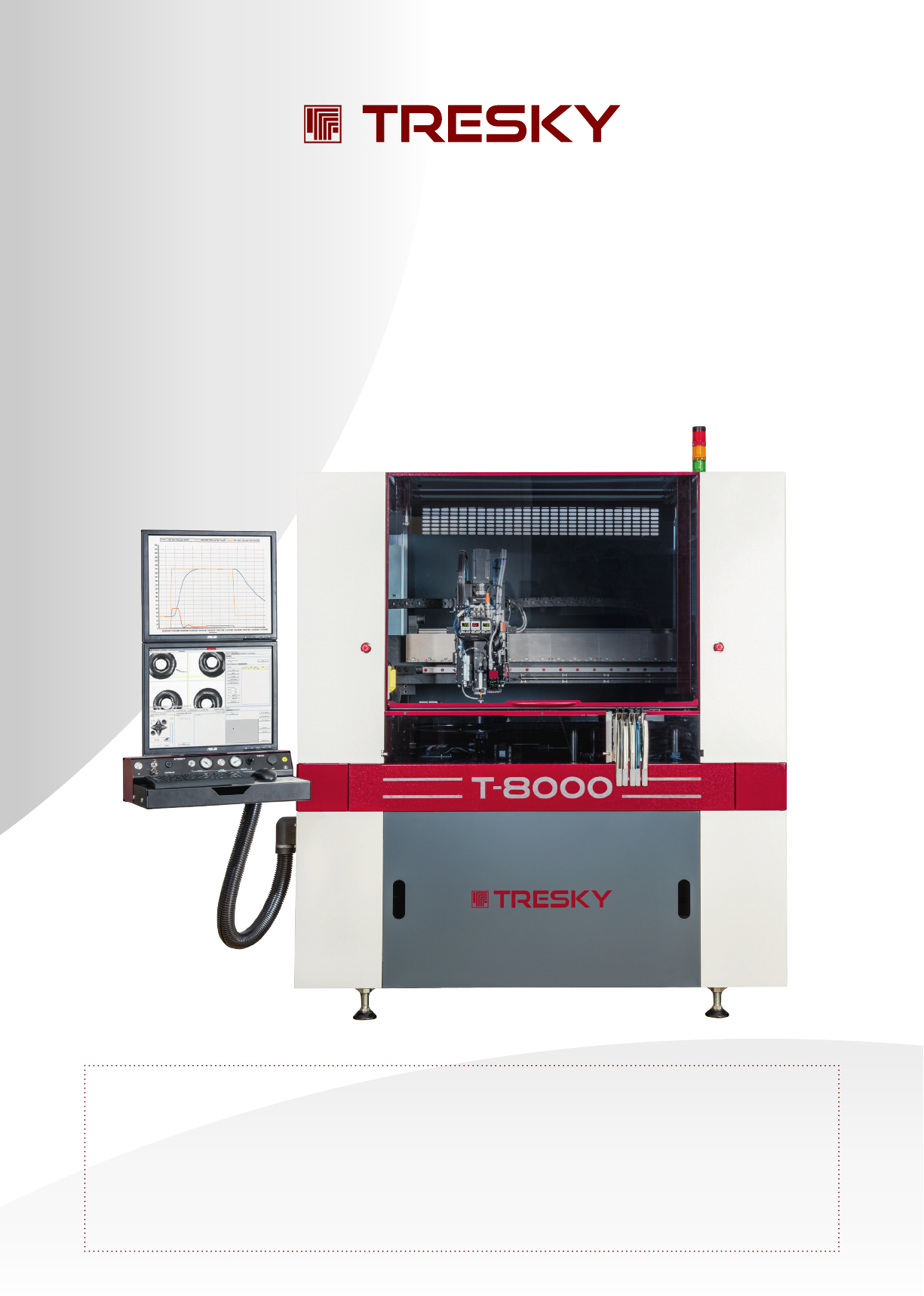

The T-8000 Die Bonder is a fully-automated all-purpose system for R&D, pilot and medium size
production. Fully built on granite, equipped with linear motors and 0.1µm resolution glass scales, enable
a precision of 5µm. A force range of 10g to 25kg, combined with the large working area of 500 x 450mm
and wafer handling up to 12”, open a wide range of applications. With numerous available options,
the T-8000 can be customized to best suit your needs.
AUTOMATIC LINE
FEATURES AND OPTIONS FOR THE T-8000
● Customized substrate holders and fixtures available
● Wafer ring or wafer frame holders
● Automatic 3-D and force calibration
● Flux dipping station
● SMD feeder capability (8 and 12mm)
● Up looking camera
● Dispenser (Time/ Pressure or volumetric)
● Stamping unit
● Automatic tool changer (also for heated tools)
● Eutectic bonding unit with protective gas chamber
TECHNICAL DATA
XY-Movement (placement stage) 500mm x 450mm
XY-Movement (wafer stage) 305mm x 305mm
Z-Movement 120mm
Spindle Rotation 200° (100° with heated tools)
Bond Force (standard range) 10g – 25kg
UPH 2800*
Placement accuracy 5μm@3Sigma*
Axis resolution XYZ: 0.1µ, Theta: 0.02°
Min./ Max. component size 250µ/ 20mm* *
Wafer Pickup 2” to 12”
Connections Compressed dry air 6 bar / Vacuum
 0.9bar(abs)min.4.5m³ /min
Dimensions 1750mm x 1050mm x 1820mm
Weight 1550kg (approx.)
Voltage 220V-260V, 50Hz, 3.7kW (16A), 1 Phase
Environment Room temp: 22°C, +/- 2°C
Humidity 50%, +/- 5%
* Process depending / * *Otherdimensionsonrequest
Note: All specifications are subject to change without notice
