General
Design Basic Contact Probe
Family F083
Pitch [mm/mil] 1.27 / 50
Electrical specifications
Typical contact resistance [mOhm] 25.00
Mechanical specifications
Preload [cN] 50.00
Spring force [cN] 120.00
Nominal travel [mm] 2.00
Maximum travel [mm] 2.90
Pointing accuracy +/- [mm] 0.05
Dimensions
Total length [mm] 21.75
Projection height [mm] 3.90
Tip style diameter [mm] 1.80
Barrel diameter [mm] 0.75
Materials & surfaces
Tip style 02
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Gold
Accessories
Tip style 1
Basic Contact Probes
F08302B180G120
Order code 1106277

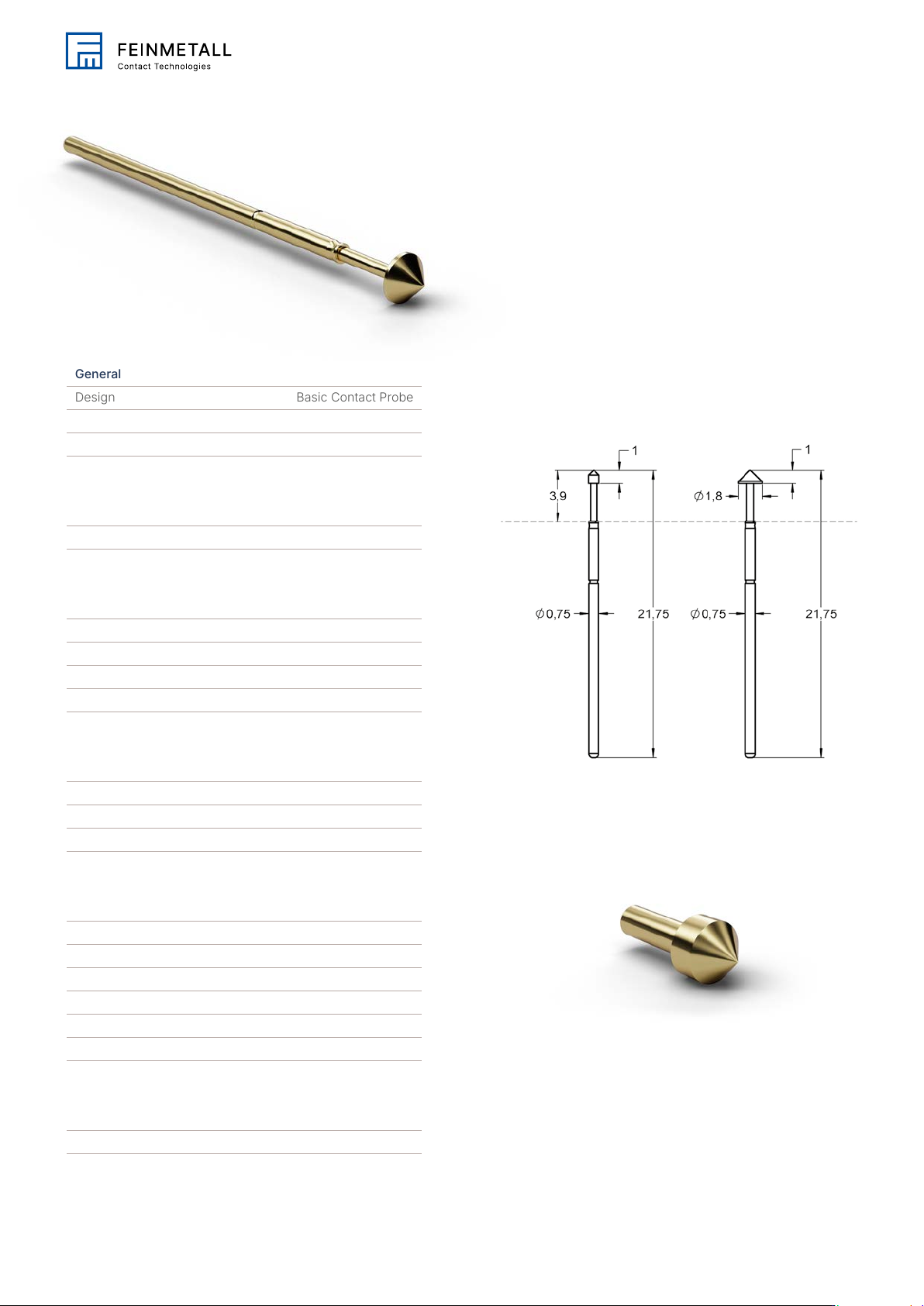

Family drawing
