Largest Installed Base • Excellent Thermal Performance • Process Flexibility
Ease of Operation • Global Support • Industry Leading Reliability

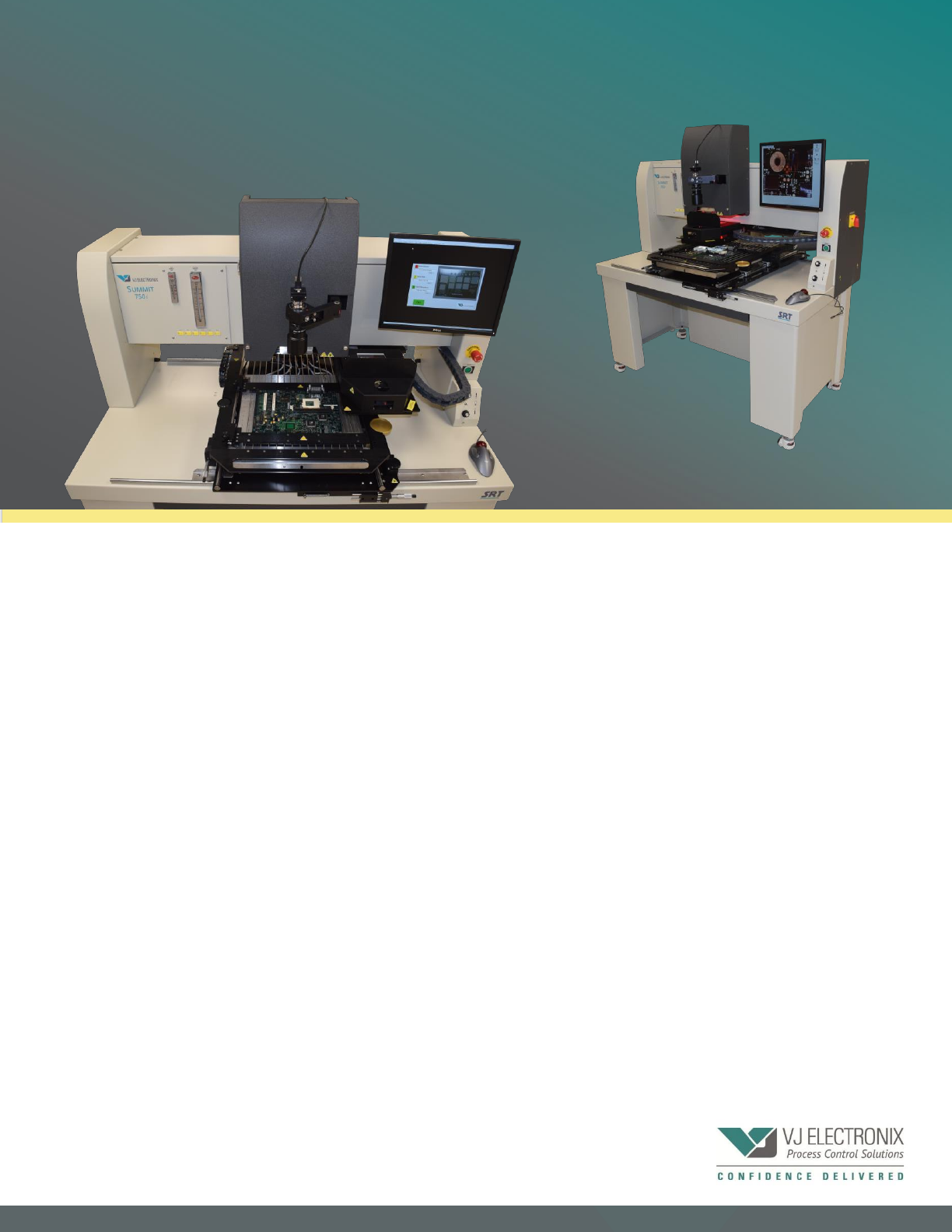

Summit 750i
Semi-Automated Rework System
Turn-Key System. Nozzles included.
Auto Profiling Capability
– Fast and easy
profile creation. Simply enter the desired product
temperatures. After thermal profile is created, the
entire reflow process is built automatically and
ready to run.
Independent Pick and Place
– Motorized
reflow head driven by an advanced motion system
with programmable force control provides
precision with total flexibility.
Digital Split Imaging
– Digital split imaging
allows up to four corners (and its pads) of a large
component to be viewed under high
magnification.
•
Precise alignment of BGAs or fine-pitch QFPs
“1-2-3-Go” Graphical User Interface
–
Proprietary SierraMate™ Windows® based software
provides an easy to use “1-2-3-Go” graphical user
interface increasing user friendliness.
Efficient Convection Heating
– Closed-loop
temperature control ensures a more even heat
distribution as compared to IR heating.
•
Industry-leading speed, control, repeatability
Industry 4.0 Compliant
– Automated data/event
logging directly to your EMS.
•
Enhanced profile sharing and user collaboration
Comprehensive Tooling
– Wide range of tooling
available to meet your current and future rework
needs.
Why choose VJ Electronix
Technical Specifications
Placement Capability
0.0020” (50µ) mean + 3σ
Top Heater
1.6kW Focused Convection
Bottom Heater
4.0kW Convection Plenum
Z-Axis Motion
Independent & Programmable Z-Height Pickup Tube
Independent & Micrometer Adjust Z-Height Top Heater
Theta Motion
Manual Adjust Theta - 360°
Field of View
2.0” (50mm) Square
Max Board Size
18x22” (455x560mm)
Component Range
0.010” (0.24mm) to 8” (200mm) Connectors
Temperature Control
K-Type Thermocouple (Closed-Loop)
Thermocouple Jacks
6
14 (option)
Compliance
CE, CAN/CSA, UL 61010-1
Special Features
Programmable Placement Force Control
Automatic Component Height Sensing & Alignment Height
In a highly competitive SMT manufacturing market, quality
and productivity are critical. VJ Electronix develops and
manufactures all their products with this in mind. For
decades, we have secured leading positions in a variety of
markets through technological firsts and a variety of
innovative customer-specific solutions.
VJ Electronix is the leader in PCB rework, x-ray inspection
and x-ray counting systems. VJ Electronix’s equipment
help improve manufacturing costs and product quality.
VJ Electronix
19 Alpha Road Phone: +1 978 486 4777
Chelmsford, MA, 01824 www.vjelectronix.com
USA
VJ Offices:
Bohemia NY
East Haven CT
Suzhou, China
Shenzhen, China
Suzhou, China

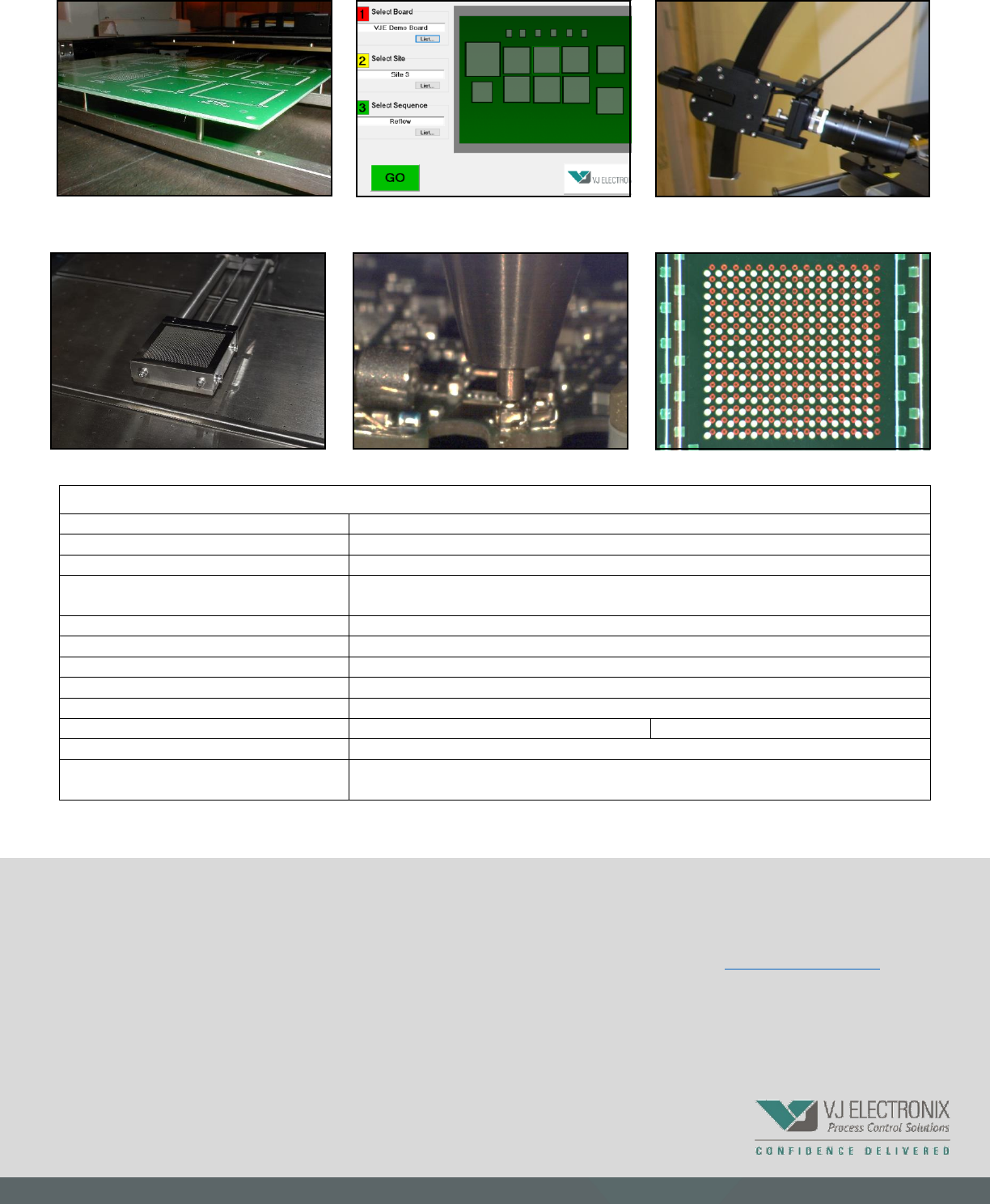

DUAL CONVECTION BOTTOM HEATERS 0201 REWORK OPTICAL ALIGNMENT SYSTEM
CONFIGURABLE BOARD FIXTURES 1-2-3-GO SIERRAMATE™ GRAPHICAL SIDE VIEW VISION SYSTEM
USER INTERFACE
Hartzviller, France
Bengaluru, India
Budapest, Hungary
