Ordering Guide • Valve, manifold, and handle are ordered individually • Optional pistol grip handles and swivel base are available • For high back pressure conditions (i.e. over 1,000 psi/69 bar) order a double air cylin…
Ordering Guide
• Valve, manifold, and handle are ordered
individually
• Optional pistol grip handles and swivel base
are available
• For high back pressure conditions (i.e. over
1,000 psi/69 bar) order a double air cylinder
• Seal Designations: T=PTFE, P=Polyurethane,
V=Viton, G=Polytuff
more info

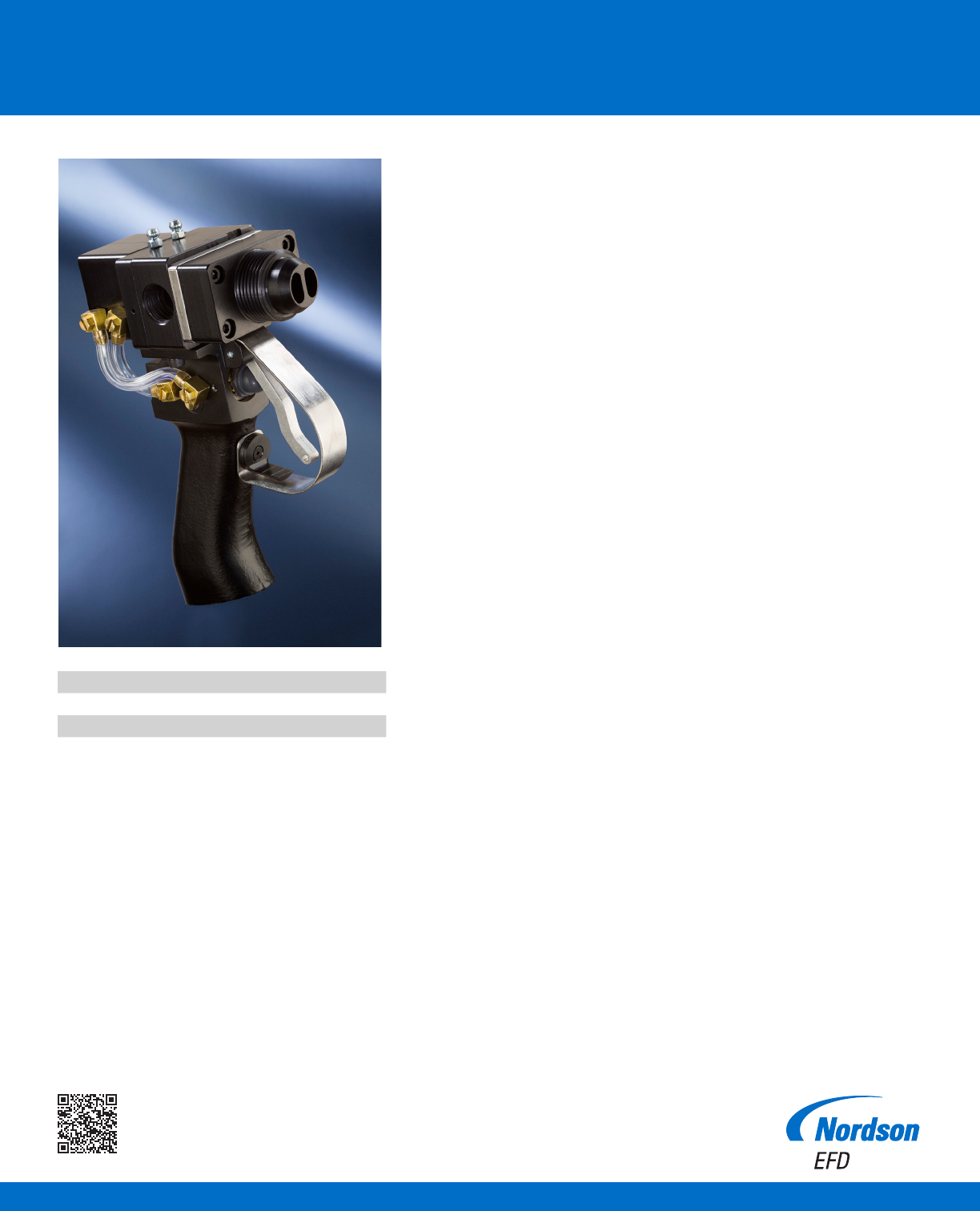

High Flow Valve
Series 400HF Autovalve
The 400HF valve provides ow rates that are 15-30% greater than
the standard 400 valve conguration, without compromising accuracy
orconsistency. The large ¾" material inlet ports permit ow rates of
4-5 gallons per minute, depending on pump capability and material
viscosity.
Features
• Dispenses two-component adhesives and sealants
• Dispenses low- to high-viscosity urethanes, epoxies and silicones
• Can be mounted for beads or timed shots; optional handle is available
for handheld applications
• Provides an ON-OFF function. The metering of the adhesives in the
proper ratio of A:B is controlled by the metering pumps.
• Flow rates of 4-5 gallons/minute, depending on pump and material
viscosity
• Materials remain separate until they enter the mixer
• Available in aluminum or stainless steel congurations
• Manual, robotic or stationary operation
Specifications
• Valve
Size: 3.3" x 2.5" x 2.3" (132 mm x 63.5 mm x 58.4 mm)
Body Material: 6061-T6 Aluminum or 303 Stainless Steel
O-ring Options*: Viton
®
, PTFE, Ethylene-Propylene (E-P)
Lip Seal Options*: Viton, Polyurethane (PU), PTFE, Polytuff,
Ethylene-Propylene (E-P)
*Repair kits containing a complete set of lip seals and O-rings are available.
• Manifold
Size: 1.9" x 2.5" x 1.5" (48.3 mm x 63.5 mm x 38.1 mm)
Material: 6061-T6 Aluminum or 303 Stainless Steel
Options: 1:1 Ratio (with or without solvent port )
Wide Ratio (with or without solvent port)
Outlet Thread Size Options: 7/8"-14 (for standard bell mixers);
1 5/16"-12 (for oversized bell mixers)
• Weight
Aluminum Valve and Manifold: 1.6 lb (0.7 kg)
Stainless Steel Valve and Manifold: 2.5 lb (1.1 kg)
• Operating Parameters
Min. Operating Pressure: 80 psi (5.5 bar)
Max. Fluid Pressure: 3500 psi (240 bar)
Electric Handle Mount Switch: 24V
Part # Description
7704105 Alum. Valve, Single Air Cylinder, TGT Seals
7701924 Alum. Valve, Single Air Cylinder, TPV Seals
Repair Kit
Pistol Grip Handles
Nordson EFD offers electric or pneumatic handles for actuating
the air cylinder of the valve. If using an electric handle, a solenoid
from an outside vendor is required.
Part # Description
7704013 2K Kit 400HF Repair TPV
Metal Jackets
Metal Jackets are available for all mixers. EFD recommends
using it when the working pressure inside the mixer is greater
than 150 psi (10 bar).
Part # Description
7026515 Carbon Steel
Static Mixers
Mixer selection is critical when it comes to curing two-component
adhesives and sealants. EFD offers a wide range of static mixers
with different diameters, lengths, geometries, and orices to meet
many different applications.
Retaining Nut
Retaining nut is available for all mixers.
Part # Element Diameter # Mixing Elements
7701057 0.784 16
7701059 0.784 23
7701063 0.784 32
7701066 0.784 39
7701067 0.784 48
Part #
Description
7701971
w/Electric Momentary Switch (24V)
7701977
w/Pneumatic Switch
Part # Description
7701226 CS Nut / SS Jacket
Accessories
