Spare Parts List MAESTRO 4M.pdf - 第10页
10 10 Spare Parts 8930919.001 555061 1.001 4M/450 - 4M/450 clean 5901574.001 4M/70 - 4M/600 - 4M/70/520 - 4M/450 - 4M/450 clean 5905536.001 4M/70 - 4M/600 - 4M/70/520 - 4M/450 - 4M/450 clean 8932668.001 4M/70 - 4M/600 - …
8
9

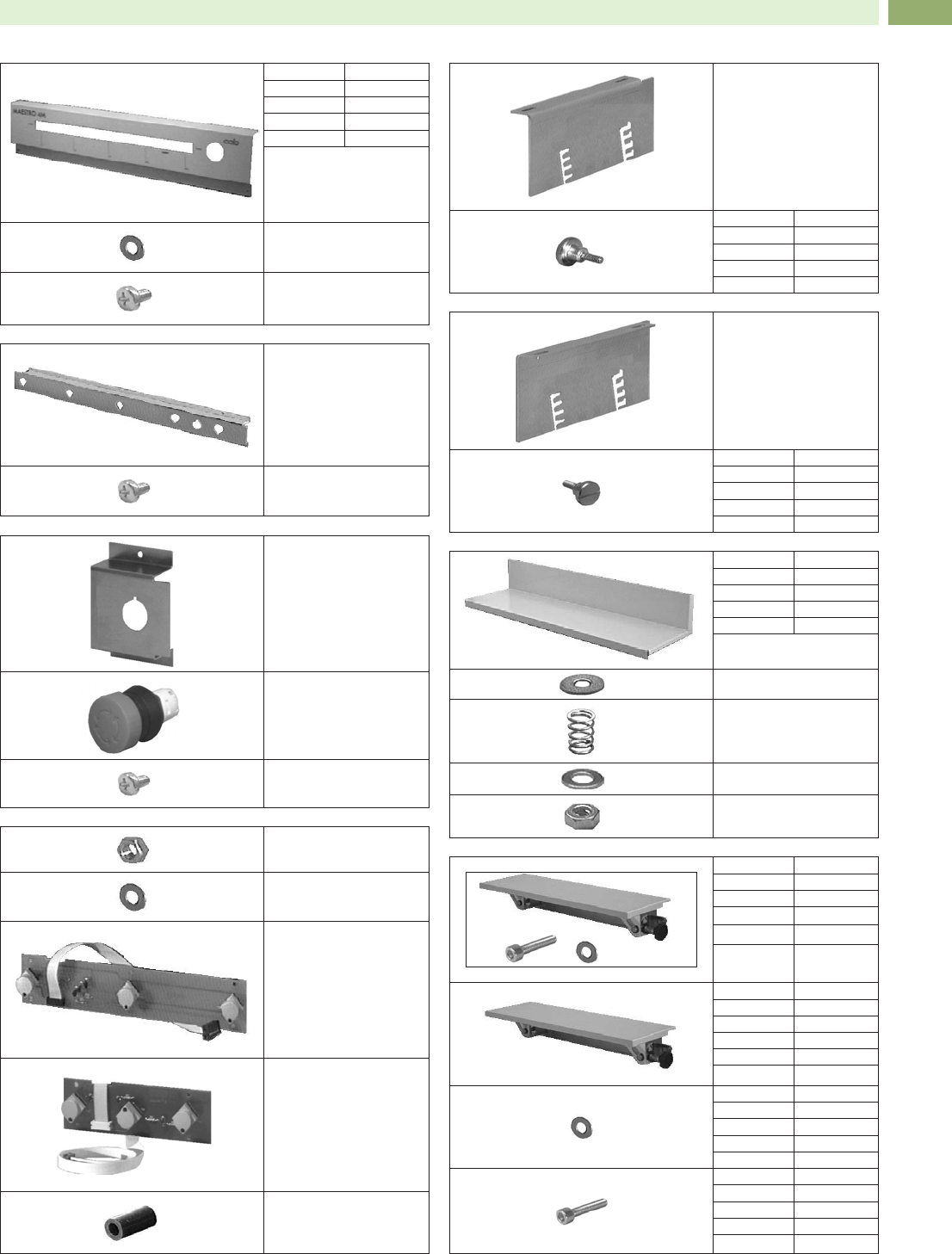

Spare Parts
4M/450 8932497.001
4M/450 clean 8933102.001
4M/70 8932497.001
4M/600 8932526.001
4M/70/520 8932526.001
5903004.001
5902026.001
8932492.001
5902026.001
8932490.001
5917167.001
5902026.001
5902505.001
5903004.001
8930976.001
8932500.001
5900529.001
8930885.001
4M/450 8930646.001
4M/450 clean 8930646.001
4M/70 8930646.001
4M/600 5902121.001
4M/70/520 5902121.001
8930886.001
4M/450 8930646.001
4M/450 clean 8930646.001
4M/70 8930646.001
4M/600 5902121.001
4M/70/520 5902121.001
4M/450 8930884.001
4M/450 clean 8930884.001
4M/70 8930884.001
4M/600 8931182.001
4M/70/520 8931182.001
5903520.001
5905013.001
5903005.001
5902501.001
4M/450 8931120.001
4M/450 clean 8931120.001
4M/70 8931120.001
4M/600
-
4M/70/520 -
4M/450 -
4M/450 clean -
4M/70 -
4M/600 8931186.001
4M/70/520 8931186.001
4M/450 -
4M/450 clean -
4M/70 -
4M/600 5903041.001
4M/70/520 5903041.001
4M/450 -
4M/450 clean -
4M/70 -
4M/600 5902038.001
4M/70/520 5902038.001
10 10

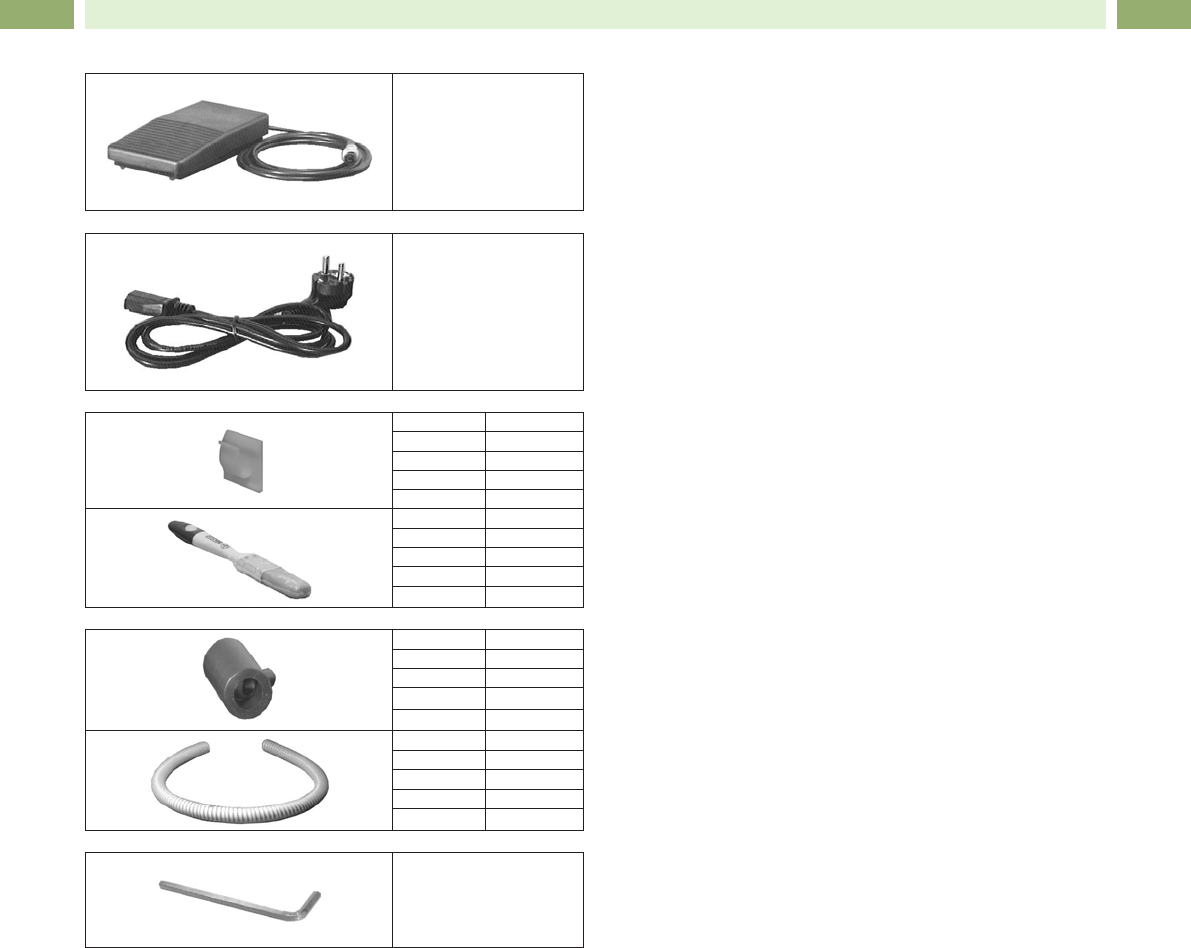

Spare Parts
8930919.001
5550611.001
4M/450 -
4M/450 clean 5901574.001
4M/70 -
4M/600 -
4M/70/520 -
4M/450 -
4M/450 clean 5905536.001
4M/70 -
4M/600 -
4M/70/520 -
4M/450 -
4M/450 clean 8932668.001
4M/70 -
4M/600
-
4M/70/520 -
4M/450 -
4M/450 clean 8932644.001
4M/70 -
4M/600
-
4M/70/520 -
5909002.001
10
11
PU Package unit
SPR Recommendation
A - wearing parts and accessories C - recommended spare parts for distributors
B - recommended spare parts for quick repair D - recommended spare parts for central stores
Pos. Figure/Page Part No. Description PU SPR Serial No.
from to
1 6 5530340.001 Lever 1 C D
2 7 5534176.001 Cable Grounding 1
3 7 5534732.001 Cable Grounding 1
4 8 5900515.001 Spacer Bushing PA M3x10 10 3731
5 9 5900529.001 Spacer Bushing PA M3x14 10
6 8 5900531.001 Spacer Bushing PA M3x12 10 3731
7 3 5901561.001 Cable Clamp 10
8 8 5901720.001 Rectier 1
9 5 5902010.001 Screw DIN912-M3x10 10
10 6 5902014.001 Screw DIN912-M4x14 10
11 5 5902016.001 Flush Screw DIN7991-M4x10 10
12 5 6 5902022.001 Screw DIN7985-M4x10 10
13 8 9 5902026.001 Screw DIN7985-M3x6 10
14 4 5902048.001 Screw DIN912-M4x8 10
15 8 5902056.001 Flush Screw DIN965-M3x8 10
16 6 5902075.001 Flush Screw DIN965-M4x8 10
17 5 5902078.001 Screw DIN933-M4x12 10
18 3 5902082.001 Screw DIN912-M6x30 10
19 9 5902121.001 Screw DIN464-M4x10 10
20 4 5902122.001 Screw DIN923-M6x6 10
21 3 4 5902137.001 Screw DIN912-M6x12 10
22 7 5902157.001 Screw DIN7985-M3x12 10 3731
23 4 5902159.001 Screw DIN912-M5x12 10
24 5
5902168.001 Screw DIN912-M3x5 10
25 3 4 5902169.001 Screw DIN912-M6x14 10
26 3 5902178.001 Screw DIN912-M6x20 10
27 4 5902190.001 Screw DIN912-M6x10 10
28 8 5902233.001 Screw DIN933-M5x55 10
29 8 5902234.001 Screw DIN933-M5x14 10
30 5 8 5902245.001 Screw DIN933-M3x10 10
31 5 5902263.001 Screw DIN912-M6x50 10
32 7 5902321.001 Screw DIN7985-M3x14 10 3731
33 6 7 9 5902501.001 Nut DIN934-M4 10
34 8 9 5902505.001 Nut DIN934-M3 10
35 7 5902510.001 Nut DIN934-M4 10
36 3 5902525.001 Nut DIN557-M6 10
37 6 7 5903003.001 Washer DIN125-A4.3 10
38 5 7 8 9 5903004.001 Washer DIN125-A3.2 10
39 5 9 5903005.001 Washer DIN9021-4.3 10
40 3 4 5903010.001 Spring Washer DIN137-A6 10
41 6 7 5903011.001 Toothed Washer DIN6797-A4.3 10
42 4 5903012.001 Spring Washer DIN137-A5 10
43 3 5903023.001 Lock Washer DIN127-B6 10
44 3 5903026.001 Washer DIN988-15x21x0.1 10
45 3 5903028.001 Washer DIN433-6.4 10
46 6 7 5903033.001 Washer DIN125-A4.3 10
47 8 5903037.001 Washer DIN9021-5.3 10
48 3
5903040.001 Washer DIN125-A3.2 10
49 4 5903047.001 Washer DIN988-4x8x0.1 10
50 8 5903061.001 Lock Washer DIN127-B5 10
51 5 5903062.001 Washer 3.2x9.0x1.5 10
52 6 9 5903520.001 Washer DIN7349-4.3 10
53 6 5903521.001 Snap Ring DIN471-A6 10
54 5 5903527.001 Snap Ring DIN471-10x1 10
55 5 5903540.001 Snap Ring DIN471-15x1 10
56 5 5903542.001 Woodruff Key DIN6888-3x3.7 10
57 9 5905013.001 Spring 10
58 5 5905040.001 Spring 1
59 3 5905183.001 Guide L=640 1
60 3 5905347.001 Guide L=780 1
61 3 5905348.001 Sledge 1
62 6 5916909.001 Fuse 5x20 T1.6A 5 B C D
63 6 5916925.001 Fuse 5x20 T0.8A 5 B C D
64 6 5916940.001 Fuse 5x20 T4A 5 B C D
65 6 5917092.001 Fuse Holder 5x20 1
66 6 5917129.001 Power Input Module 1
Spare Parts Register
