Empower your PLC – Improve the quality and
monitoring of your inside spray operation by connecting
iTrax data to your PLC.
iTrax
®
DataShare Module

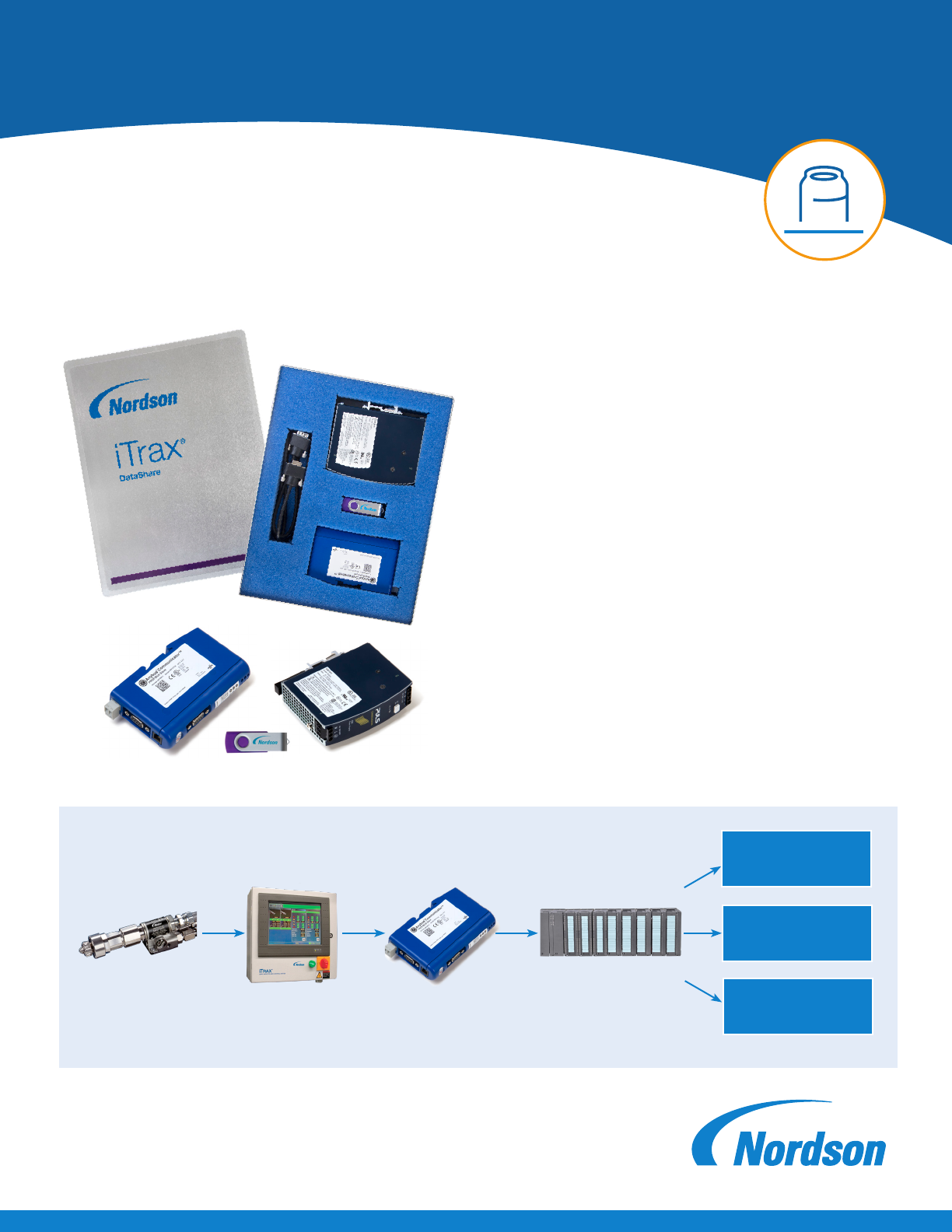

How It Works
Spray and Operating
Data from MEG Gun
iTrax System PC
Running DataShare
Software
Network Gateway
PLC
Quality Management
System (“QMS”)
Email System
Plant Automation
System
Features and Benefits
• Provides enhanced integration and communication between
your iTrax modules and PLC interface, resulting in greater
efficiencies and productivity
• iTrax data to share is selected by the end user
Examples include:
—
Process set-points and real-time readings (gun pressure,
timing, etc.)
—
Warning / alarm configurations and events
• Easily integrated into QMS, email or plant automation systems
—
Allows for enhanced evaluation of system performance and
possible improvements
—
Example: PLC can be configured to have email sent to
specific recipients when iTrax alarms / warnings occur or
when iTrax settings are changed
• Configurable language, auto start-up and user-specific
capabilities / security settings
• Also includes utilities to conveniently back-up or restore iTrax
software and settings
iTrax
®
DataShare Module
Specifications
Power Supply
Dimensions (mm) 124h x 32w x 102d
Input Voltage Rating 100-240 VAC 50/60 Hz
Output Voltage 24 – 28 VDC
Output Current (Maximum) 3.3 A
Gateway
Protocol
PROFINET–IO Slave or
EtherNet/IP Adapter
Dimensions (mm) 120h x 27w x 75d
Typical Data Capacity 248 tags (2-byte)
General Specifications
Operating Temperature
Range
0 – 55° C
Mounting 35 mm DIN rail
Module Components
• Network gateway
— Available in EtherNet/IP
™
or PROFINET
™
• Universal AC input power supply
— 100 to 240 VAC 50/60 Hz
• Serial cable, DB-9 null-modem
• USB flash drive
— DataShare software
— Configuration tool
— Manuals
— Reference documents
