6-Seg. C+P Head ReConfig. Kit X-Serie Page 6 / 8 24.11.2021
6-Seg. C+P Head ReConfig. Kit X-Serie
Page 5 / 8 24.11.2021
6-Seg. C+P Head ReConfig. Kit X-Serie
Page 6 / 8 24.11.2021
6-Seg. C+P Head ReConfig. Kit X-Serie
Page 7 / 8 24.11.2021
Pos. Item no. Description Part marking
00119761-01 6 SEGM. C+P HEAD RECONFIG. KIT
X-SERIES
*
1 03041229-01 6-SEGM. COLLECT+PLACE HEAD
DLM3 CPLT.
2 03018637S03 CO CAMERA C+P (TYPE 29) 27X27,
DIG. RK
SPARE PART
03041494S01 PARTS KIT FOR RECONFIG. X-
SERIE/DLM2
*
03049176-01 UPGRADE KIT /DLM2 16-BITL
3 03037632-01 HEAD BOARD SET /DLM2 COMPL.
16-BIT
4 03019066-03 BOARD: HEAD ADAPTER DLM-X SPARE PART
5 00344488S03 SM BOARD MODULAR SPARE PART
6 03005194-01 CABLE SUPPORT HEAD ADAPTER
DLM2 CPLT.
SPARE PART
03003391-01 AXIS CONTROL FOR DLM2-HEAD
AXES
7 00353445S04 SERVO AMPLIFIER SDS120/2,5S1 SPARE PART
8 03002141S02 SERVO AMPLIFIER SDS60/3Z1 SPARE PART
9 03002142S02 SERVO AMPLIFIER SDS60/1D1 SPARE PART
03004333-01 FLAT RIBBON CABLE SET DLM SPARE PART
10 03014437-01 CABLEHOLDER/ C+P SPARE PART
11 03037822-01 AXIS KSP-A363 SMART DRIVE (2 X
VC03)
Spare Part

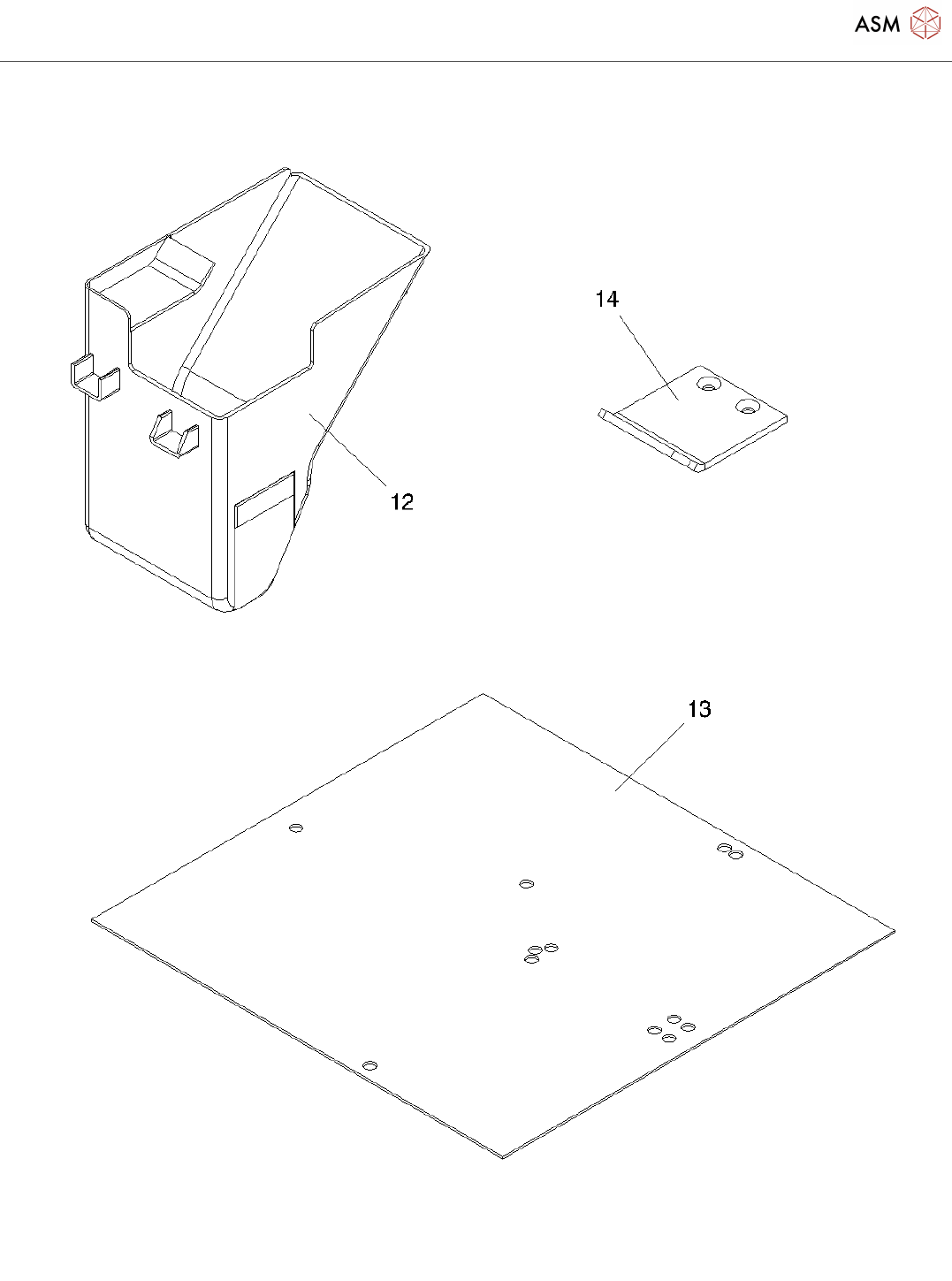

12 03048638-02 BOX SPARE PART
13 03011690-01 STENCIL DLM 2
14 03006050-01 COVER PLATE
03006775-02 PIPING DLM2 HF-/X-SSERIES SPARE PART
03004490-01 TUBE 8X5 HOLDER CIRCLE HF
03004492-01 TUBE 6X4 PLACEMENT CIRCLE HF
03006728S01 PVC CAP TYP D DI8,0 H 15 10X SPARE PART
03006776-01 COOLING AIR TUBE
03006777-01 COOLING AIR TUBE X-MOTOR
00337891-01 PLUG QSC-6H
00330249-01 BLANKING PLUG QSC-4H STANDARD PARTS
03015210-01 STOPFEN QSC-12H
03048638-02 BOX SPARE PART
