Features and Benefits
Allows two different size solder nozzles to operate in tandem
for single pass soldering of various thermal mass components
Each solder nozzle can be individually programmed for solder
volume and wave height for a wide variety of component
types
Fully compatible with 3-25 mm quick change magnetically
coupled bullet nozzles and 4-25 mm mini-wave solder nozzles
Available for tin-lead or lead-free solder alloys with lead-free
solder pot constructed of titanium for resistance to corrosive
alloys
Independent solder pumps and
Z-axis control
Interchangeable with single nozzle and 75 mm wave nozzle
pot and pump assemblies
Overview. The Dual Solder Nozzle Pot and Pump assembly
allows single pass soldering of printed circuit boards with a
diverse array of different size components for greater process
flexibility.
Small components can be soldered using as small as a 3 mm
nozzle and in the same pass larger, multi-row connectors can
be soldered with up to a 25 mm solder nozzle without manual
intervention. Each nozzle is independently powered by its
respective pump allowing solder volume and wave height to be
individually programmed and controlled.

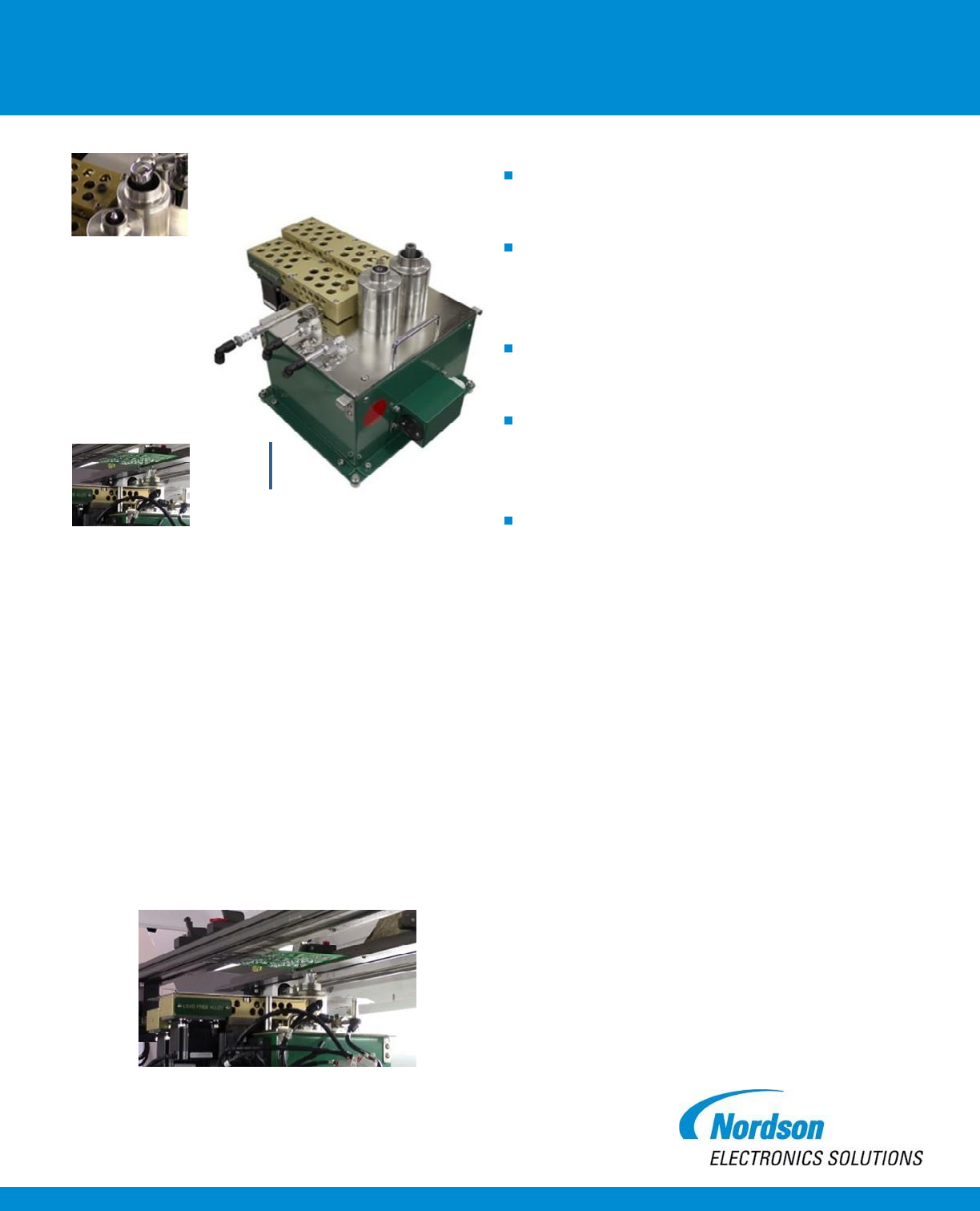

Dual solder nozzles with independent Z-axis control
Integrated Solution. The Dual Solder Nozzle Pot and Pump
assembly fully integrates with closed-loop process controls
embedded in Nordson SELECT’s SWAK-OS 4.0 software
providing seamless operation for your selective soldering
process. Nordson SELECT’s closed-loop process controls
enable successful results for a full range of soldering
applications and ensures stable and repeatable results for
high-yield production.
Experience. With over a decade of selective soldering
experience and more than a thousand systems currently in
production, Nordson SELECT is committed to providing
innovative solutions for all selective soldering needs. Our
global support network, including state-of-the-art application
development labs, provides customers with world-class
Dual Solder Nozzle Pot and Pump
Greater Process Flexibility and Increased Soldering Efficiency
Quick change
nozzles
Page 2 of 2
2021-09-16
Dual Solder Nozzle Pot and Pump
Available Models
Tin-lead solder alloy: Stainless steel construction
Lead-free solder alloy Titanium construction
The Nordson SELECT Dual Solder Nozzle Pot and Pump assembly can be integrated side-by-
side with a standard atomizing spray flux applicator or FluxJet precision flux dispenser to create
a dual soldering and fluxing system capable of both site-specific flux deposition and mass flux
application.
Compatible with Novo
®
102, 103, Cerno
®
102IL, 103IL and Flux & Preheat models
For more information
speak with your local sales
rep or contact your regional
office.
