Gener al Design Basic Cont act Pr obe Family F100HP Pitch [mm/mil] 2.54 / 100 Additional definition HPL Electrical specific ations T ypical cont act resistan…
General
Design Basic Contact Probe
Family F100HP
Pitch [mm/mil] 2.54 / 100
Additional definition HPL
Electrical specifications
Typical contact resistance [mOhm] 40.00
Mechanical specifications
Preload [cN] 130.00
Spring force [cN] 200.00
Nominal travel [mm] 4.30
Maximum travel [mm] 6.40
Dimensions
Total length [mm] 35.40
Tip style diameter [mm] 0.90
Barrel diameter [mm] 1.37
Materials & surfaces
Tip style 21
Plunger material Steel
Plunger plating Progressive
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Tip style 1
Basic Contact Probes
F10021S090P200HPL
Order code 1010318

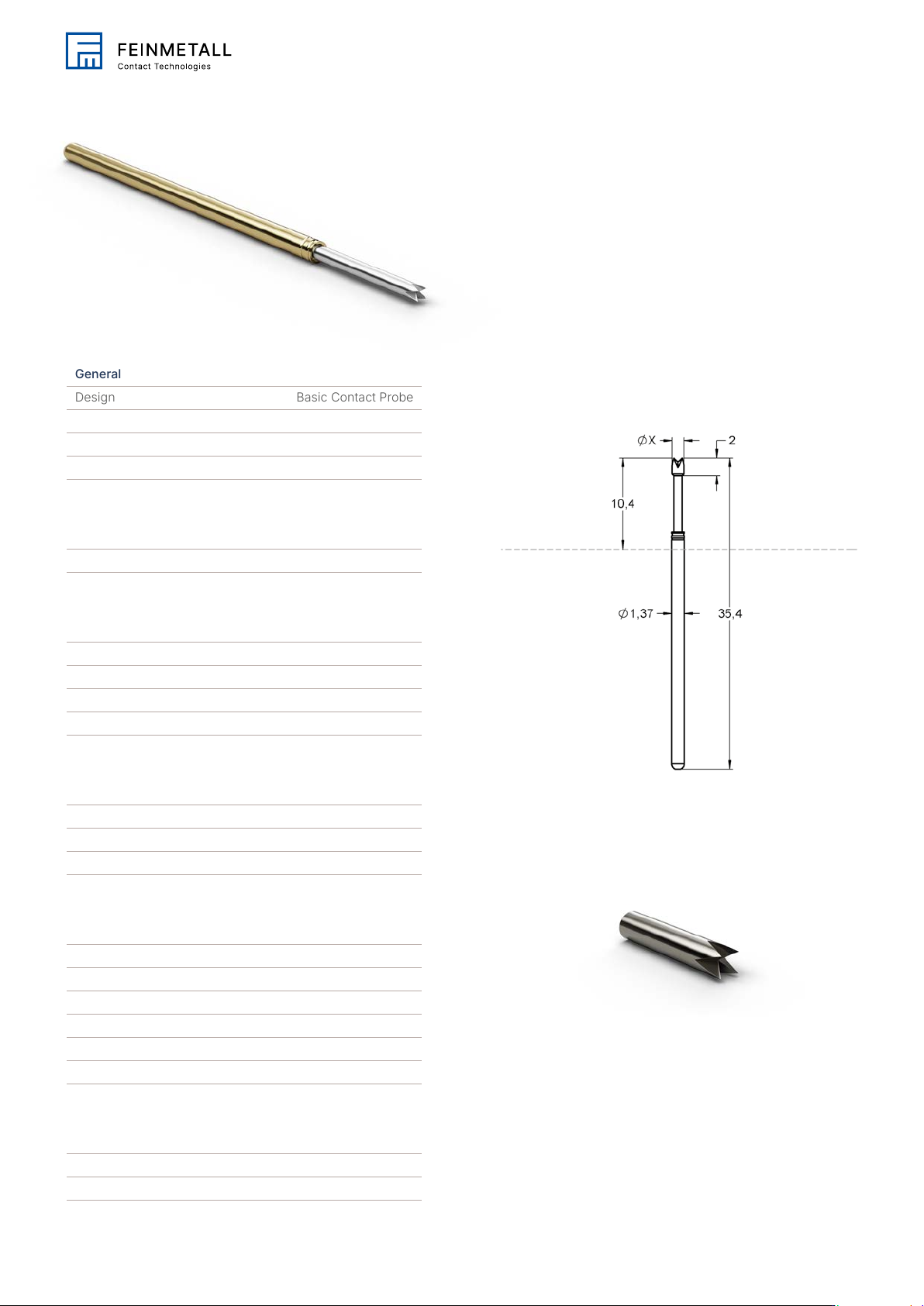

Family drawing
All measurements are in mm.
