4 5 3 HS - Control Panel, Dispense Unit Notes b HS60+, HS120+, HS180+ H HS60, HS60+, HS120, HS120+, HS180+ 60 HS60, HS60+ 120 HS120, HS120+ 180 HS180+ No. Part No. Description PU Note Serial No. from up to 1 5542053.001 …

100%1 / 8
4 4
No. Part No. Description PU Note Serial No.
from up to
2 5902816.001 Screw EJOT-PT-K40x10 10
25 5542567.001 Cable Ground Connection 1
26 5542093.001 Cable Power Supply 1
27.1 5542616.001 PCB DC/DC Converter 1 Ma
27.2 5542667.001 PCB DC/DC Converter 1 Mb
28.1 5542074.001 Cover 1 Na
28.2 5542084.001 Cover 1 Nb
29 5551126.001 Power Supply 1 N
No. Part No. Description PU Note Serial No.
from up to
30 5542094.001 Cable Control Panel 1
31 5542085.001 Cable Ground Connection 1 b
32.1 5542028.001 Sensor 1 H
32.2 5542029.001 Sensor 1 V
33 5952587.001 Cable Motor 1
34 5542571.001 CPU 1
35 5542045.001 Stepper Motor 1

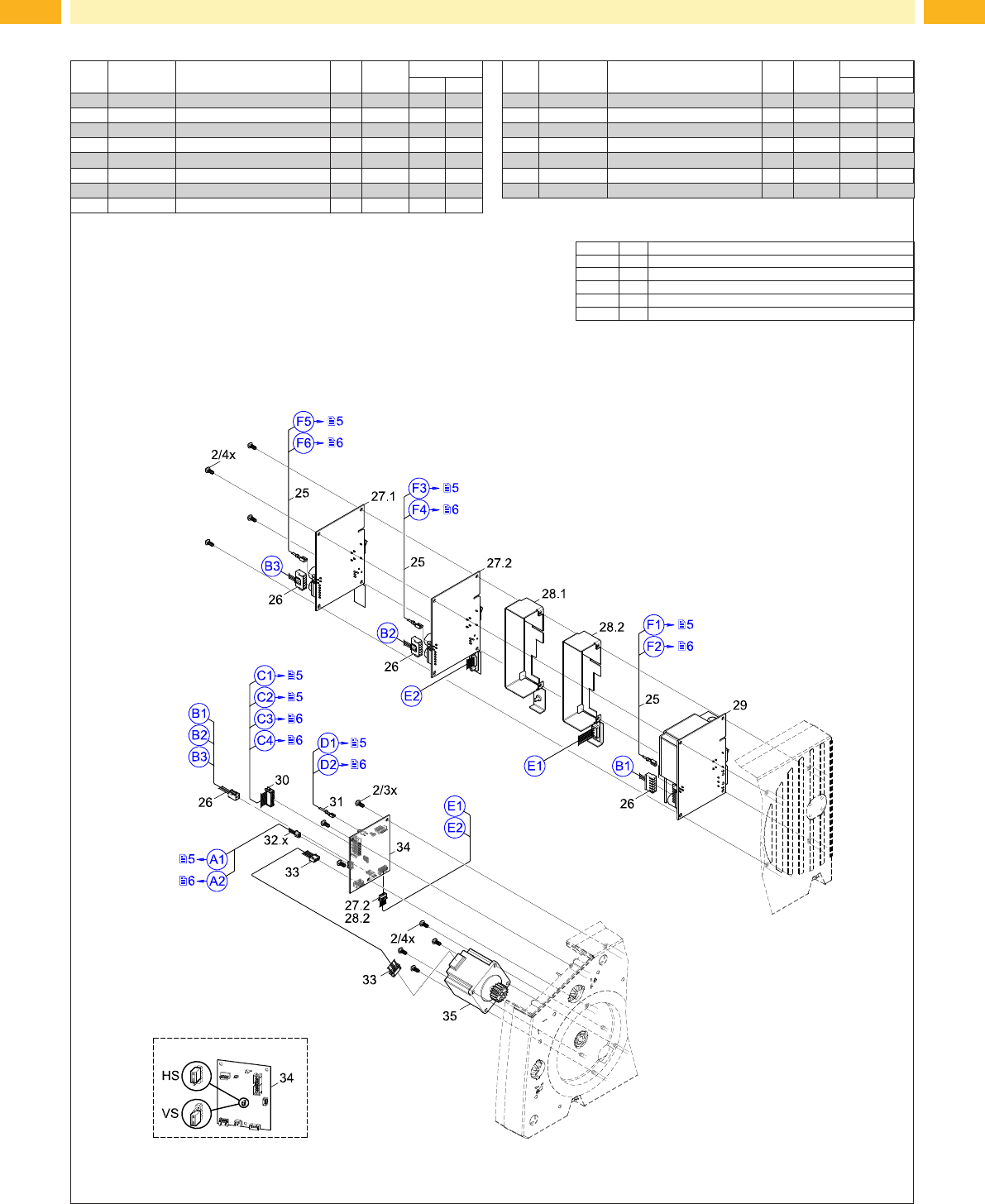

2 HS, VS - Electronics
Notes a HS60, HS120, VS60, VS120
b HS60+, HS120+, HS180+, VS60+, VS120+, VS180+
H HS60, HS60+, HS120, HS120+, HS180+
V VS60, VS60+, VS120, VS120+, VS180+
M HS/VS mobile with battery connection
N HS/VS with mains connection
4 5
3 HS - Control Panel, Dispense Unit
Notes b HS60+, HS120+, HS180+
H HS60, HS60+, HS120, HS120+, HS180+
60 HS60, HS60+
120 HS120, HS120+
180 HS180+
No. Part No. Description PU Note Serial No.
from up to
1 5542053.001 Stopper M12 1
2 5902816.001 Screw EJOT-PT-K40x10 10
6 5906980.001 Screw DIN7500-M4x10 10
25 5542567.001 Cable Ground Connection 1
30 5542094.001 Cable Control Panel 1
31 5542085.001 Cable Ground Connection 1 b
32.1 5542028.001 Sensor 1 H
36.1 5542538.001 Control Panel 1 HS60
36.2 5542056.001 Control Panel 1 HS120
36.3 5542534.001 Control Panel 1 HS60+
36.4 5542037.001 Control Panel 1 HS120+
36.5 5542542.001 Control Panel 1 HS180+
No. Part No. Description PU Note Serial No.
from up to
37 5542581.001 Spring 1
38 5542048.001 Guide Arm 1
39.1 5542518.001 Peel-off Prole 1 60
39.2 5542049.001 Peel-off Prole 1 120
39.3 5542524.001 Peel-off Prole 1 180
40 5542047.001 Guide 1
41 5542052.001 Stopper M20 1
42.1 5542519.001 Dispense Plate 1 60
42.2 5542050.001 Dispense Plate 1 120
42.3 5542525.001 Dispense Plate 1 180
43 5542057.001 Clamping Ring 1
44 5542058.001 Adjusting Knob 1
66 6
4 VS - Control Panel, Dispense Unit
Notes b VS60+, VS120+, VS180+
V VS60, VS60+, VS120, VS120+, VS180+
60 VS60, VS60+
120 VS120, VS120+
180 VS180+
No. Part No. Description PU Note Serial No.
from up to
1 5542053.001 Stopper M12 1
2 5902816.001 Screw EJOT-PT-K40x10 10
6 5906980.001 Screw DIN7500-M4x10 10
25 5542567.001 Cable Ground Connection 1
30 5542094.001 Cable Control Panel 1
31 5542085.001 Cable Ground Connection 1 b
32.2 5542029.001 Sensor 1 V
36.6 5542540.001 Control Panel 1 VS60
36.7 5542061.001 Control Panel 1 VS120
36.8 5542536.001 Control Panel 1 VS60+
36.9 5542042.001 Control Panel 1 VS120+
36.10 5542544.001 Control Panel 1 VS180+
No. Part No. Description PU Note Serial No.
from up to
37 5542581.001 Spring 1
38 5542048.001 Guide Arm 1
39.1 5542518.001 Peel-off Prole 1 60
39.2 5542049.001 Peel-off Prole 1 120
39.3 5542524.001 Peel-off Prole 1 180
40 5542047.001 Guide 1
41 5542052.001 Stopper M20 1
42.1 5542519.001 Dispense Plate 1 60
42.2 5542050.001 Dispense Plate 1 120
42.3 5542525.001 Dispense Plate 1 180
43 5542057.001 Clamping Ring 1
44 5542058.001 Adjusting Knob 1
