Gener al Design Basic Cont act Pr obe Family F083 Pitch [mm/mil] 1.27 / 50 Mechanical specifications Preload [cN] 50. 00 Spring force [ cN] 120. 00 Nominal trav el [mm] 2.00 Maximum trav…
General
Design Basic Contact Probe
Family F083
Pitch [mm/mil] 1.27 / 50
Mechanical specifications
Preload [cN] 50.00
Spring force [cN] 120.00
Nominal travel [mm] 2.00
Maximum travel [mm] 2.90
Pointing accuracy +/- [mm] 0.05
Dimensions
Total length [mm] 21.75
Projection height [mm] 3.90
Tip style diameter [mm] 0.51
Barrel diameter [mm] 0.75
Materials & surfaces
Tip style 18
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Gold
Accessories
Tip style 1
Basic Contact Probes
F08318B051G120
Order code 1129244

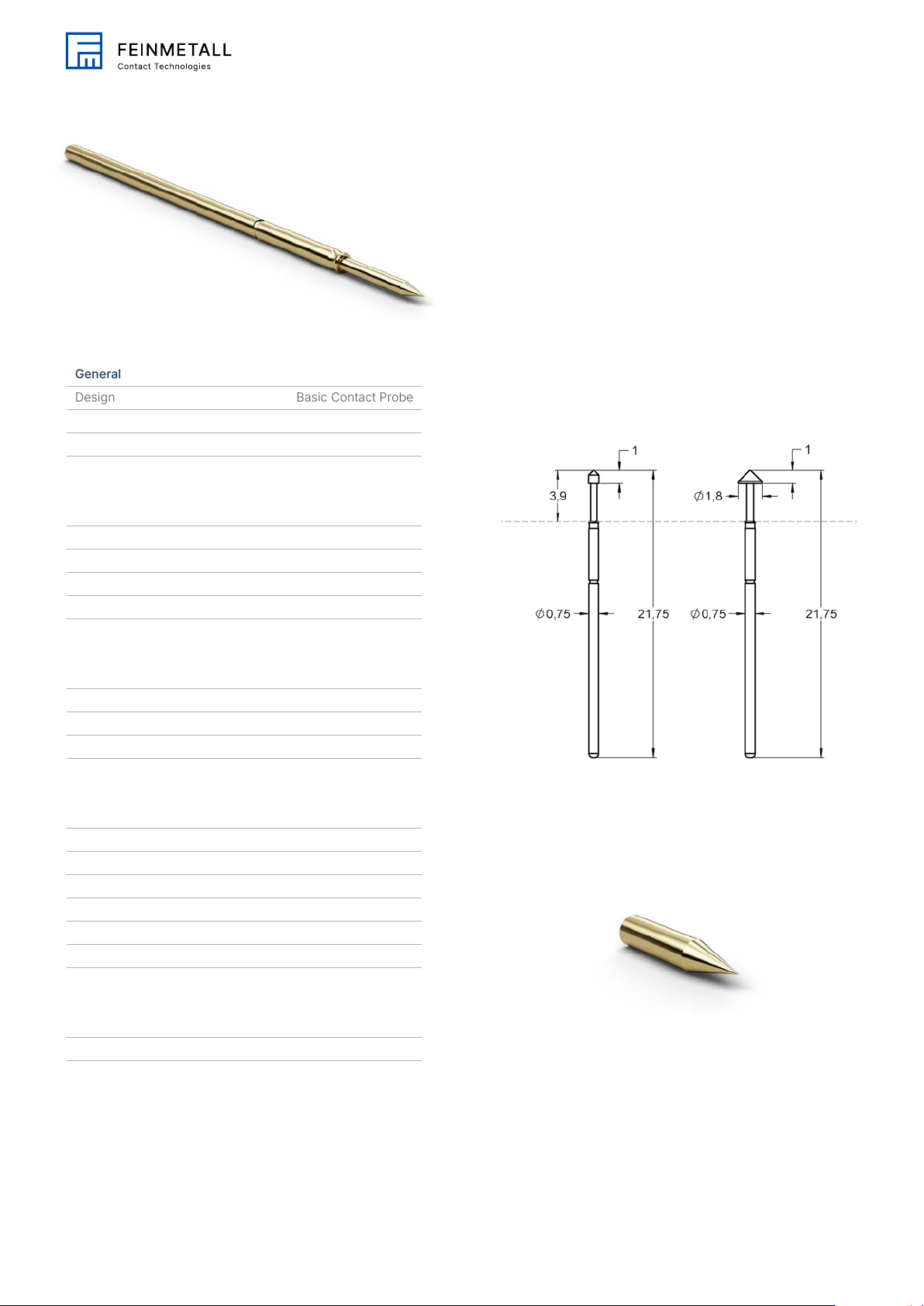

Family drawing
All measurements are in mm.
