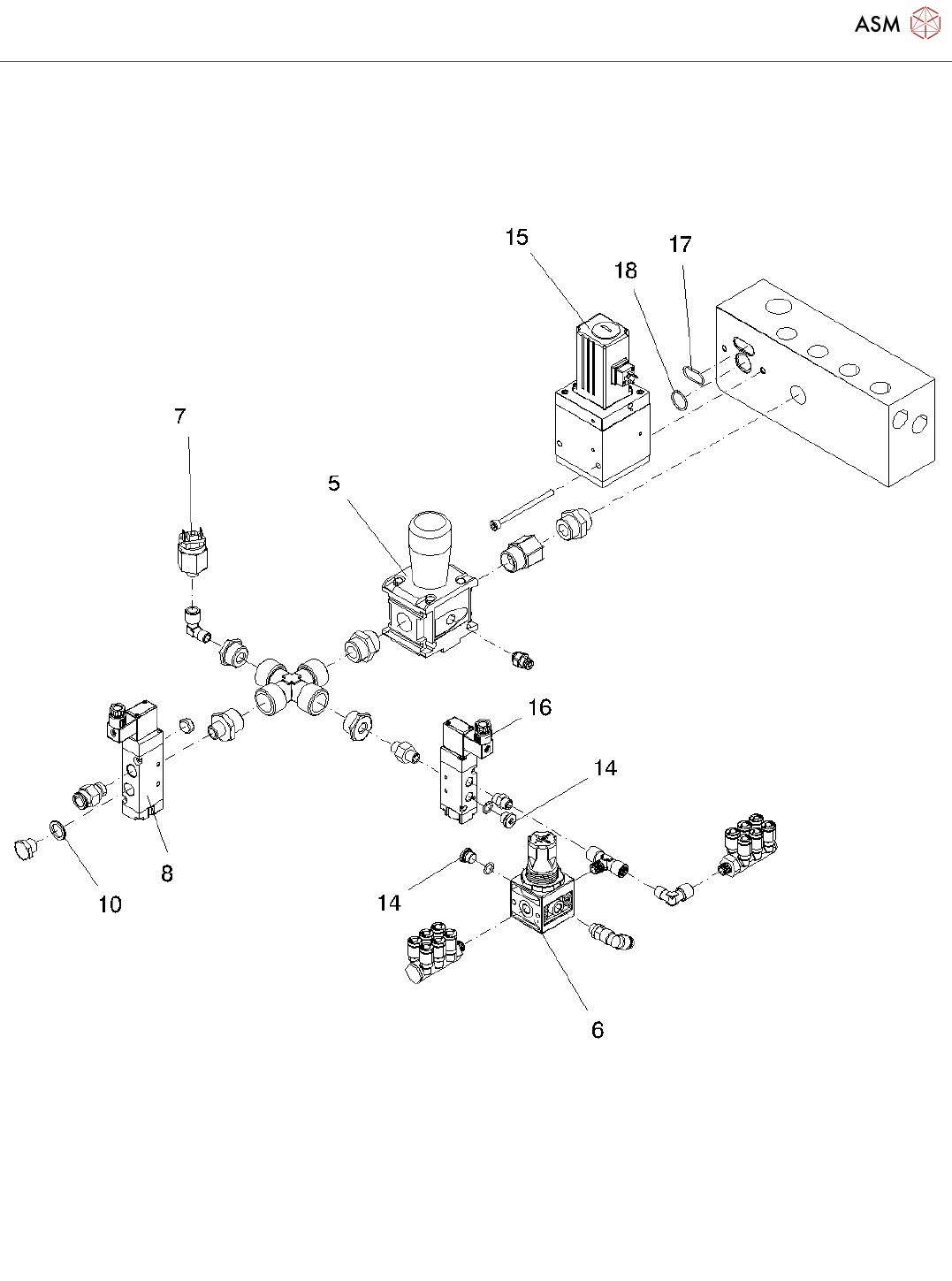

Pos. Item no. Description Part marking
1 03060279S02 PNEUMATIC X-SERIE R3 SPARE PART
2 03060279S02 PNEUMATIC X-SERIE R3 SPARE PART
3 03062098-01 EDGE PROTECTION PNEUMATIC
(090053)
4 03062079-02 PNEUMATIKBLOCK 833-943828
5 03062103-01 PRESSURE REGULATING G1/2
(34203054)
SPARE PART
6 03028263-01 PRESSURE REGUL. VALVE, G1/8,
MOD. 105
SPARE PART
7 03038425-03 PRESSURE SWITCH G1/8, 1-10BAR SPARE PART
8 00344974S01 MAGNETIC VALVE 5/2 G1/4 W/O
MAN.ACTUAT.
SPARE PART
9 00327326-01 PA-SEALING 2661 - 1/2
10 00327327-01 SEALING RING G1/4 INCH*2 PA STANDARD PARTS
11 03038435-01 DOUBLE NIPPLE DETACHABLE G3/4
MS
12 03062237-01 BALL VALUE G3/4 SERIE-20 TYP
500306
13 03062264-01 BALL VALUE G1/2 SERIE:1501 TYP:
500105
14 03028353-01 HEXAGON SOCKET PLUG, G1/8 W.
SEALING
15 03038725-03 PRESSURE REGULATOR SPARE PART
16 03062277-01 5/2 SPOOL VALUE G1/8 DN 4MM SPARE PART
17 03038683-01 SEALING RING 18X1,5 NBR70 WEAR PART
18 03038684-01 SEALING RING 17X1,5 NBR70 WEAR PART
03039840-01 SILENCER 1/8
20 03038691-03 FILTER G3/4 5UM, WITH METAL
SIGHT BOWL
SPARE PART
21 03062178-01 ANGLE + ORING (833-050351_ASM)
22 03062062-01 O-RING 9X1.5 NBR70-LABS FREI
(833-030180
23 00356396-01 SCREWLESS END STOP 6MM
249-116
SPARE PART
24 03062195-01 MANOMETER G1/4 D50MM
0-10BAR+RING
SPARE PART
25 03062197-01 MANOMETER G1/4 D-50MM
0-6BAR+RING
SPARE PART
26 03062382-01 TOP HAT RAIL (833-993264)
