MODEL TCM-3100J
9811-001
カバー部 COVER SECTION

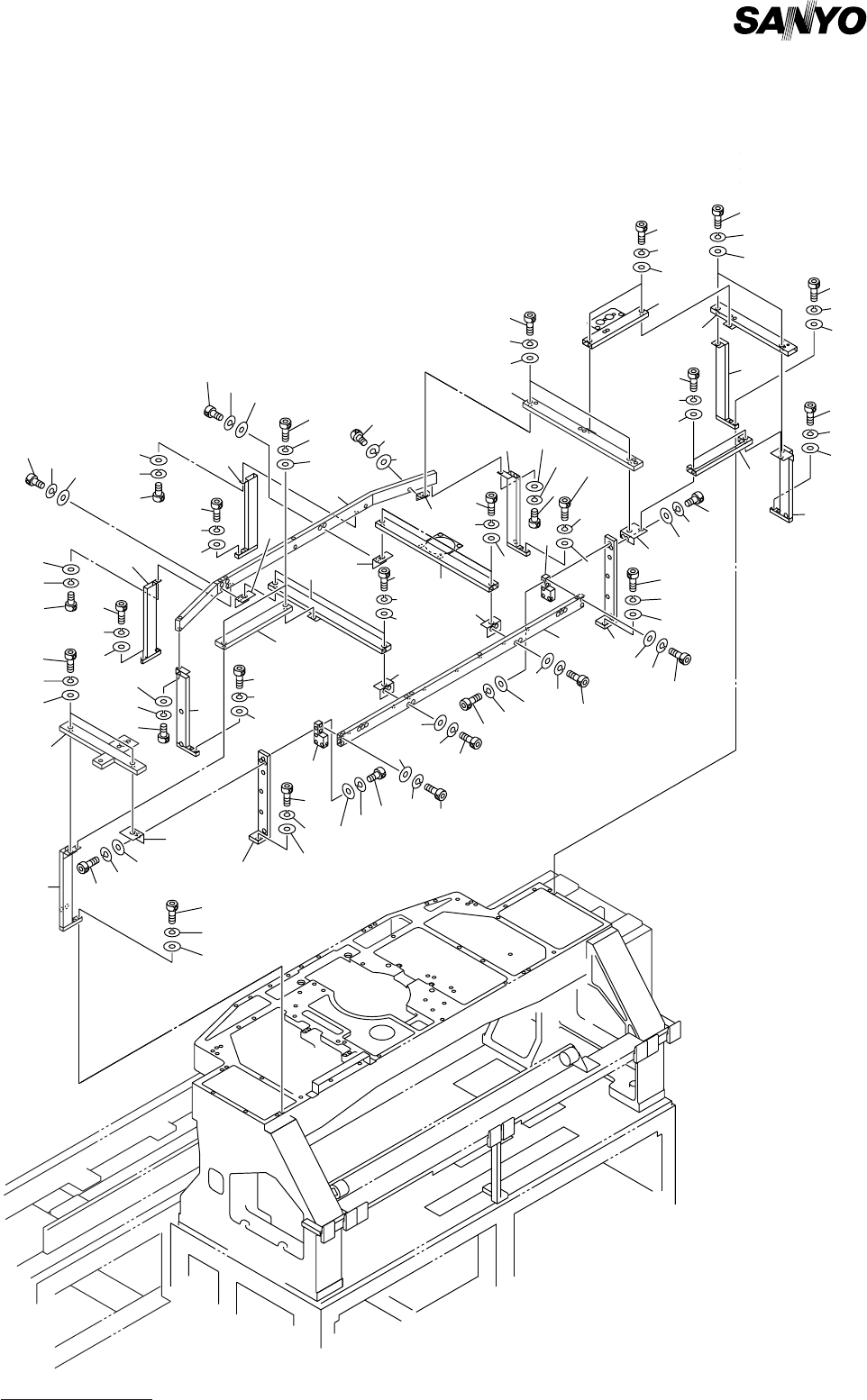

Fig.12-3 上部フレーム Upper Frame
1
2
3
4
5
6
11
12
13
10
7
8
9
63
64
71
72
73
70
51
68
59
69
16
17
18
19
15
30
31
26
55
35
43
47
39
1
2
3
4
9
8
7
65
66
67
65
66
67
52
53
54
32
33
34
71
72
73
26
26
26
36
37
38
23
24
25
23
24
25
23
24
25
23
24
25
11
12
13
27
28
29
27
28
29
32
33
34
20
21
22
71
72
73
60
61
62
20
21
22
20
21
22
46
45
44
20
21
22
40
41
42
48
49
50
56
57
58
27
28
29
27
28
29
MODEL TCM-3100J
9811-001
12- 3
Key No. PART No. PART NAME Q'ty REMARKS
1 630 051 2588 FRAME 2 659R--03B-001
2 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
3 411 141 3001 WASHER SPR 6 4 SW6
4 630 000 7909 BOLT,HEX-SCT 4 M6X25
5 630 038 9555 BLOCK 1 659R--03B-003
6 630 038 9548 BLOCK 1 659R--03B-004
7 411 141 4107 WASHER V 5X10X1 4 FW5
8 411 141 6705 WASHER SPR 5 4 SW5
9 630 000 7800 BOLT,HEX-SCT 4 M5X35
10 630 075 8054 FRAME 1 659R--03B-005
11 411 141 4107 WASHER V 5X10X1 4 FW5
12 411 141 6705 WASHER SPR 5 4 SW5
13 630 000 7756 BOLT,HEX-SCT 4 M5X12
15 630 052 6127 FRAME 1 659R--03B-018
16 630 051 2700 STAY 1 659R--03B-014
17 630 058 0389 STAY 1 659R--03B-015
18 630 058 0747 STAY 1 659R--03B-016
19 630 058 0754 STAY 1 659R--03B-017
20 411 141 4107 WASHER V 5X10X1 4 FW5
21 411 141 6705 WASHER SPR 5 4 SW5
22 630 000 7749 BOLT,HEX-SCT 4 M5X10
23 411 141 4305 WASHER V 6X12.5X1.6 8 FW6
24 411 141 3001 WASHER SPR 6 8 SW6
25 630 000 7909 BOLT,HEX-SCT 8 M6X25
26 630 050 6785 BRACKET 4 659R--03B-021
27 411 141 4107 WASHER V 5X10X1 8 FW5
28 411 141 6705 WASHER SPR 5 8 SW5
29 630 000 7749 BOLT,HEX-SCT 8 M5X10
30 630 063 0411 FRAME 1 659R--03B-019
31 630 052 6141 FRAME 1 659R--03B-020
32 411 141 4107 WASHER V 5X10X1 4 FW5
33 411 141 6705 WASHER SPR 5 4 SW5
34 630 000 7749 BOLT,HEX-SCT 4 M5X10
35 630 075 8641 STAY 1 659R--03B-026
36 411 141 4305 WASHER V 6X12.5X1.6 2 FW6
37 411 141 3001 WASHER SPR 6 2 SW6
38 630 000 7909 BOLT,HEX-SCT 2 M6X25
39 630 051 2571 BRACKET 1 659R--03B-029
40 411 141 4107 WASHER V 5X10X1 2 FW5
41 411 141 6705 WASHER SPR 5 2 SW5
42 630 000 7756 BOLT,HEX-SCT 2 M5X12
43 630 058 0143 FRAME 1 659R--03B-027
44 411 141 4107 WASHER V 5X10X1 2 FW5
45 411 141 6705 WASHER SPR 5 2 SW5
46 630 000 7749 BOLT,HEX-SCT 2 M5X10
47 630 058 0297 FRAME 1 659R--03B-028
48 411 141 4107 WASHER V 5X10X1 2 FW5
49 411 141 6705 WASHER SPR 5 2 SW5
50 630 000 7749 BOLT,HEX-SCT 2 M5X10
51 630 050 6778 BRACKET 1 659R--03B-009
NOTE
MODEL TCM-3100J
9811-001
12- 3
Key No. PART No. PART NAME Q'ty REMARKS
52 411 141 4107 WASHER V 5X10X1 2 FW5
53 411 141 6705 WASHER SPR 5 2 SW5
54 630 000 7756 BOLT,HEX-SCT 2 M5X12
55 630 050 6792 BRACKET 1 659R--03B-022
56 411 141 4107 WASHER V 5X10X1 2 FW5
57 411 141 6705 WASHER SPR 5 2 SW5
58 630 000 7749 BOLT,HEX-SCT 2 M5X10
59 630 058 0419 FRAME 1 659R--03B-011
60 411 141 4107 WASHER V 5X10X1 2 FW5
61 411 141 6705 WASHER SPR 5 2 SW5
62 630 000 7749 BOLT,HEX-SCT 2 M5X10
63 630 050 6563 STAY 1 659R--03B-006
64 630 051 2694 STAY 1 659R--03B-007
65 411 141 4305 WASHER V 6X12.5X1.6 4 FW6
66 411 141 3001 WASHER SPR 6 4 SW6
67 630 000 7909 BOLT,HEX-SCT 4 M6X25
68 630 052 6103 FRAME 1 659R--03B-010
69 630 052 7636 FRAME 1 659R--03B-012
70 630 051 2595 FRAME 1 659R--03B-008
71 411 141 4107 WASHER V 5X10X1 6 FW5
72 411 141 6705 WASHER SPR 5 6 SW5
73 630 000 7749 BOLT,HEX-SCT 6 M5X10
