Fastest Cycle Time • Highest Count Accuracy • Bes t ROI • Global Support Designed for Automation • User-Friendly Interface • Instant MES Updates XQuik III Wi th A cc uCo unt Tec hn olo gy Automatic Component Reco gnition…
Fastest Cycle Time • Highest Count Accuracy • Best ROI • Global Support
Designed for Automation • User-Friendly Interface • Instant MES Updates

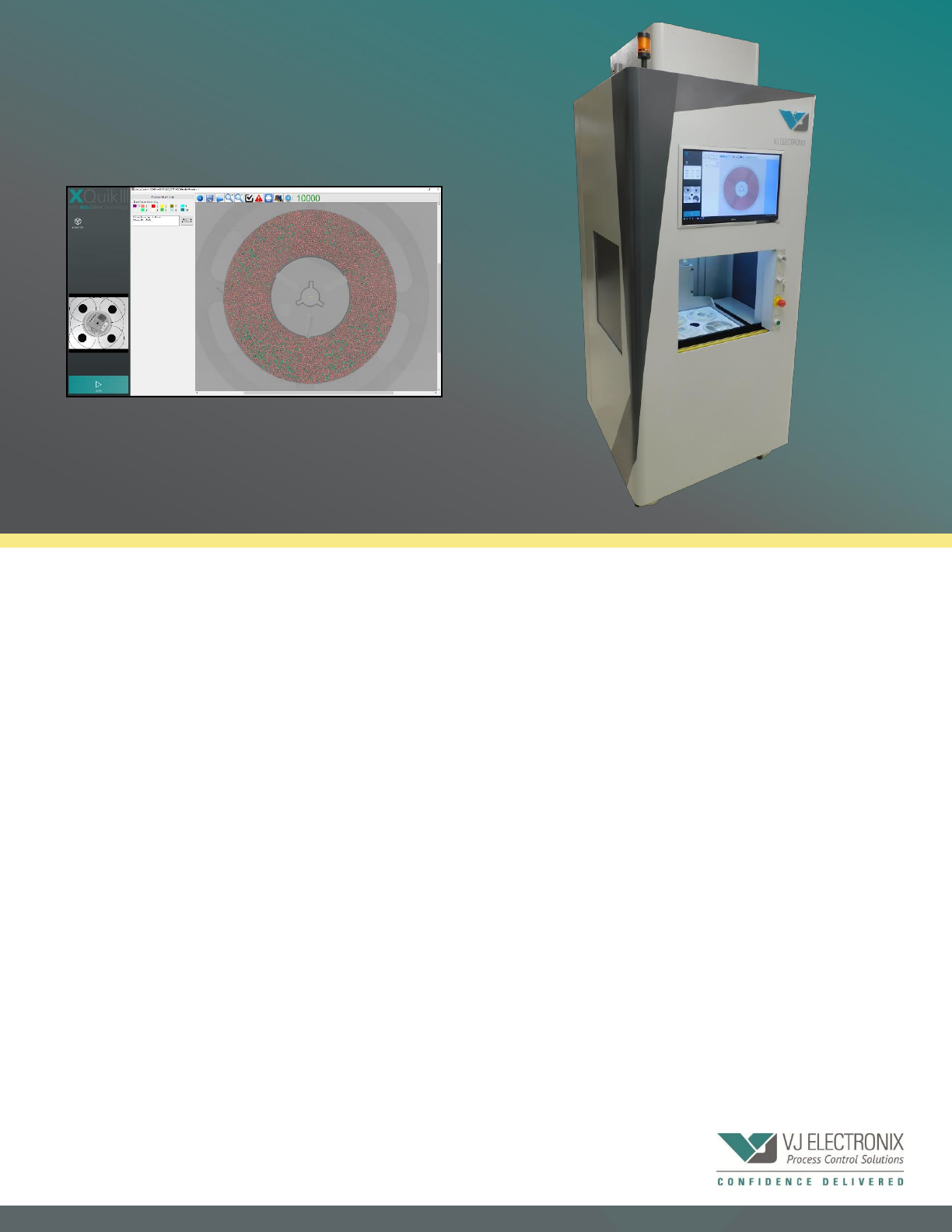

XQuik III
With AccuCount Technology
Automatic Component Recognition
– No
programming or teaching required. System
automatically recognizes components with AI
technology.
Automatic Barcode Reader
– Barcodes and
QR codes are automatically captured by built-in
camera.
Easy Setup
– Fast plug and play setup makes
installation easy. Operator training only takes a
few minutes due to one button operation.
Count Accuracy Check
–
To assist in a review,
the count image may be magnified and displayed in
color coding.
High Accuracy
– Component counting accuracy
of over 99.8% on most components with coverage
of small component types like 01005.
Industry 4.0 Compliant
– Open Interface allows
data to be directly uploaded to your ERP optimizing
resource management.
•
Maximized system utilization
•
Increased knowledge sharing and collaboration
Full Automation
– Robotic reel handling options
available. Your robot or ours.
Maximized Safety
– Meets all global standards
for x-ray safety. Safety curtain sensors ensure
maximum protection for operators.
Why choose VJ Electronix
Technical Specifications
Cycle Time
<10 seconds (including barcode reading)
Max. Reel Diameter
15 in (380 mm)
Max. Reel Height
4 in (100 mm)
Min. Component Size
01005 (0402 mm)
Accuracy
>99.8%
Detector Type
Flat Panel
Component Exposure
<0.1 mR/hr (1.0 uSV/hr)
Electrical Connection
100-250 VAC
System Dimensions
39 x 44 x 92 in (1000 x 1114 x 2340 mm)
System Weight
2400 lbs (1100 kg)
Certification
CE & FDA
Popular Options
Barcode Printer
Robotic Integration
01005 COMPONENTS QUAD COUNT CUT STRIPS
In a highly competitive SMT manufacturing market, quality
and productivity are critical. VJ Electronix develops and
manufactures all their products with this in mind. For
decades, we have secured leading positions in a variety of
markets through technological firsts and a variety of
innovative customer-specific solutions.
VJ Electronix is the leader in x-ray counting, x-ray
inspection and rework systems. VJ Electronix’s equipment
help improve manufacturing costs and product quality.
VJ Electronix
19 Alpha Road Phone: +1 978 486 4777
Chelmsford, MA, 01824 www.vjelectronix.com
USA
VJ Offices:
Bohemia NY
East Haven CT
Suzhou, China
Shenzhen, China
Suzhou, China
15” REELS AUTOMATIC BARCODE READER ESD AND MOISTURE SENSITIVE BAGS
Hartzviller, France
Bengaluru, India
Budapest, Hungary
