E-by SIPLACE Smart Feeder
24 mm E
Removing the Roller Axle
Part Exchange
3/12
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool:
T1,T3,T5
Wear Part: Consumables:

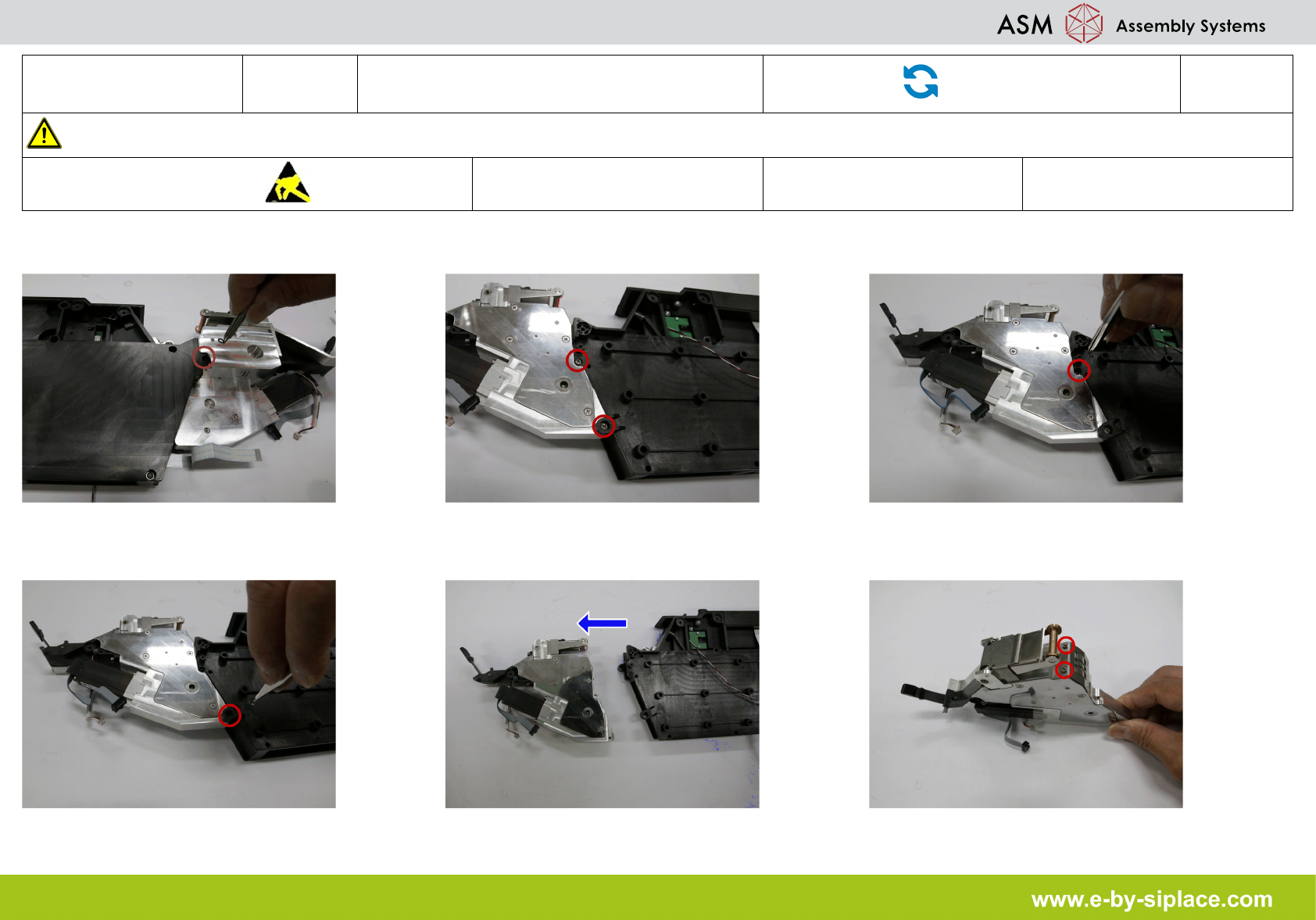

13. Remove the washer with T5. 14. Remove the 2 screws with T3. 15. Remove the washer with T5.
16. Remove the washer with T5. 17. Remove the Foil Disposal Drive. 18. Remove the 2 screws with T1.
E-by SIPLACE Smart Feeder
24 mm E
Removing the Roller Axle
Part Exchange
4/12
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool:
T3,T5,T6
Wear Part: Consumables:

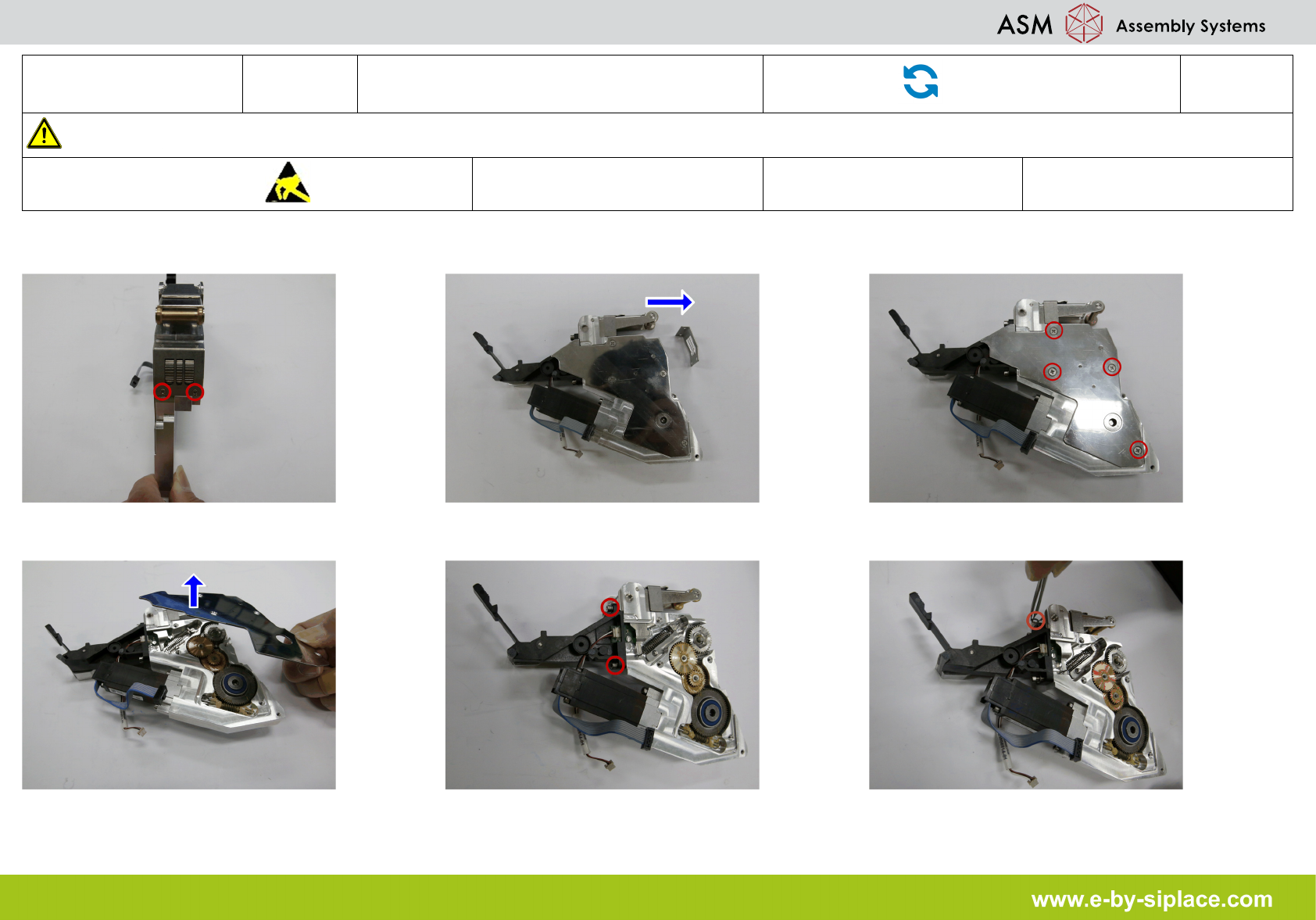

19. Remove the 2 screws with T3. 20. Remove the Stripping Device. 21. Remove these 4 screws with T3.
22. Lift up the cover. 23. Remove the 2 screw with T6. 24. Remove the washer with T5.
E-by SIPLACE Smart Feeder
24 mm E
Removing the Roller Axle
Part Exchange
5/12
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool:
T1,T5
Wear Part: Consumables:
25. Remove the washer with T5. 26. Remove the connector. 27. Remove the ratchet.
28. Remove the spring with T5. 29. Loosen the bearing shaft with T1. 30. Remove the bearing shaft.
