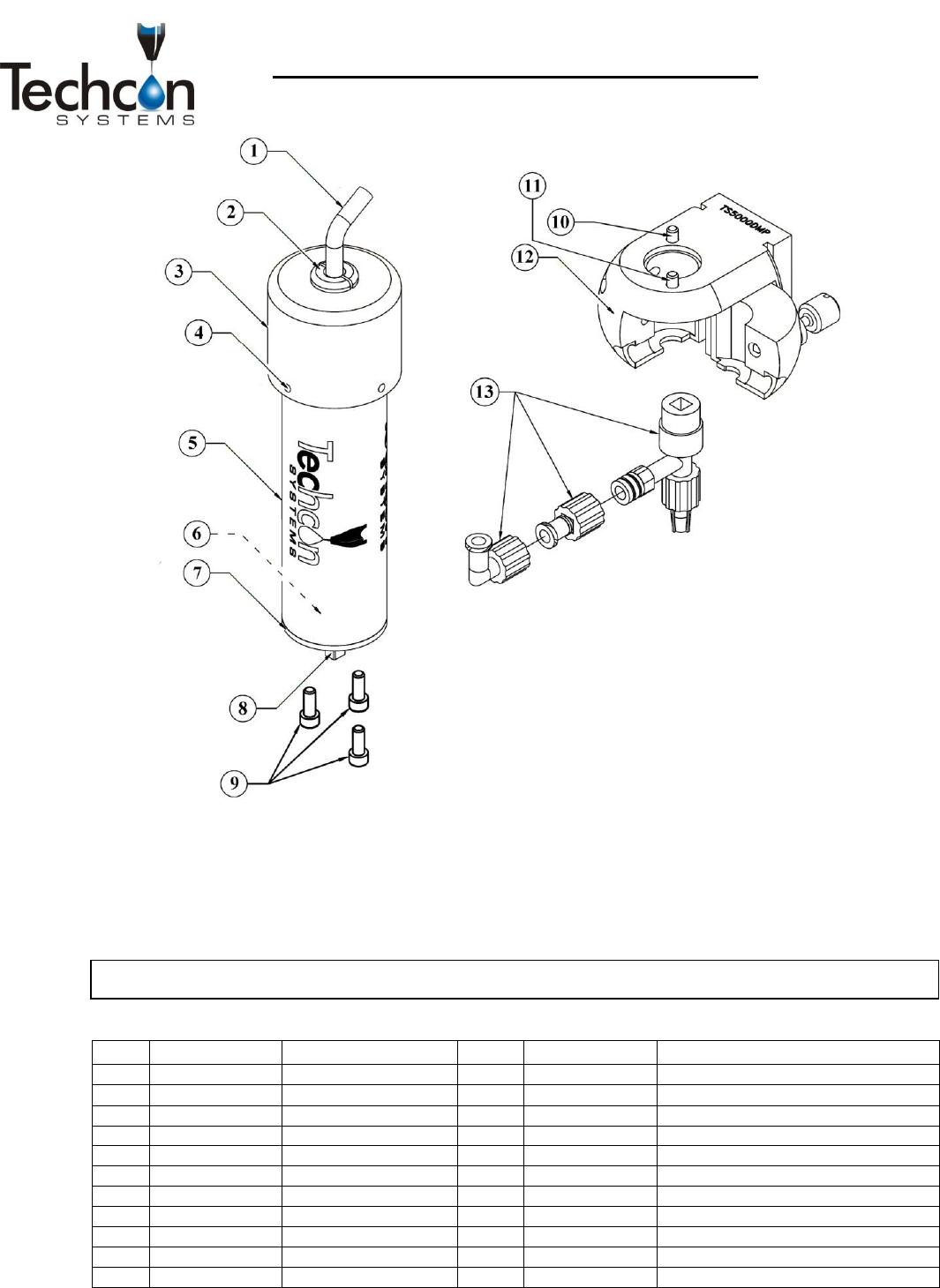

TS5000DMP-DCX Series Rotary Valve
Item
Part Number
Description
Item
Part Number
Description
1
TSD1415-12
Cable
12
A0100167
Body For TS5000DMP
2
TSD1401-7
Bushing
12*
A0100184
Body For TS5000DMPL
3
5000-000-171
Sleeve Cap
13
DMP6-10
6 Pitch DMP Assy, Fixed Red Collar
4
TSD1103-334
Cap Screw
13*
DMP6R-10
6 Pitch DMP Assy, Rotating Red Collar
5
5000-000-346
Motor Sleeve
13*
DMP8-10
8 Pitch DMP Assy, Fixed Black Collar
6
TSD1412-61
Motor, 14W 19:1
13*
DMP8R-10
8 Pitch DMP Assy, Rotating Black Collar
7
T1000295
Motor Mounting Plate
13*
DMP16-10
16 Pitch DMP Assy, Fixed Blue Collar
8
2200-000-011
Square Drive
13*
DMP16R-10
16 Pitch DMP Assy, Rotating Blue Collar
9
TSD1103-330
Mounting Plate Screw
14
5000-000-005
Mounting Bracket (Not Shown)
10
TSD1103-14
Body Screw, Long
15
TS3706
Syringe Bracket (Not Shown)
11
TSD1103-10
Body Screw, Short
Lubrication: The Viton® feed path o-ring is lubricated with Parker -O-Lube.
