Gener al F amil y H887 Pitch [mm/mil] 4 .0 / 157 Mechanical specifications Internal thread M3X 0 .35 Dimensions T otal length [mm] 13.40 Press ring diameter [mm] 3. 70 Outer diameter [mm] 3. 50 Collar height [mm] 0.20 Ac…
General
Family H887
Pitch [mm/mil] 4.0 / 157
Mechanical specifications
Internal thread M3X0.35
Dimensions
Total length [mm] 13.40
Press ring diameter [mm] 3.70
Outer diameter [mm] 3.50
Collar height [mm] 0.20
Accessories
H887RD
Order code 1004903

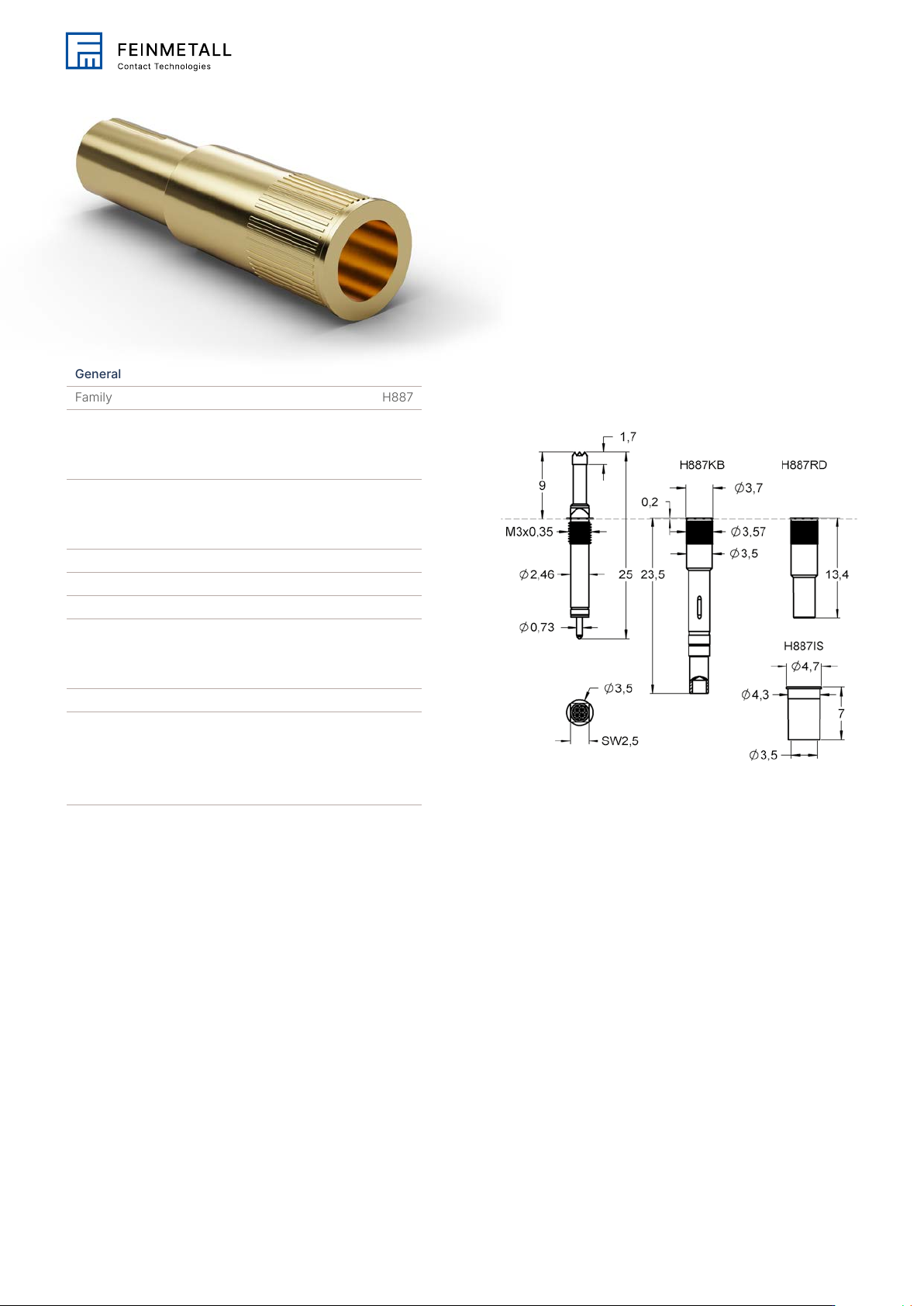

Family drawing
All measurements are in mm.
