Part # Description Size Pressur e Regulator 7010004 615DTH Tank 1.0 liter 7.0 bar (100 psi) 7020186 626DTH Tank 5.0 liter 7.0 bar (100 psi) 7020189 626DTL Tank 5.0 liter 1.0 bar (15 psi) 7362776 5L Tank with capacitive l…
Part # Description Size
Pressure
Regulator
7010004 615DTH Tank 1.0 liter 7.0 bar (100 psi)
7020186 626DTH Tank 5.0 liter 7.0 bar (100 psi)
7020189 626DTL Tank 5.0 liter 1.0 bar (15 psi)
7362776 5L Tank with capacitive level sensor 5.0 liter 7.0 bar (100 psi)

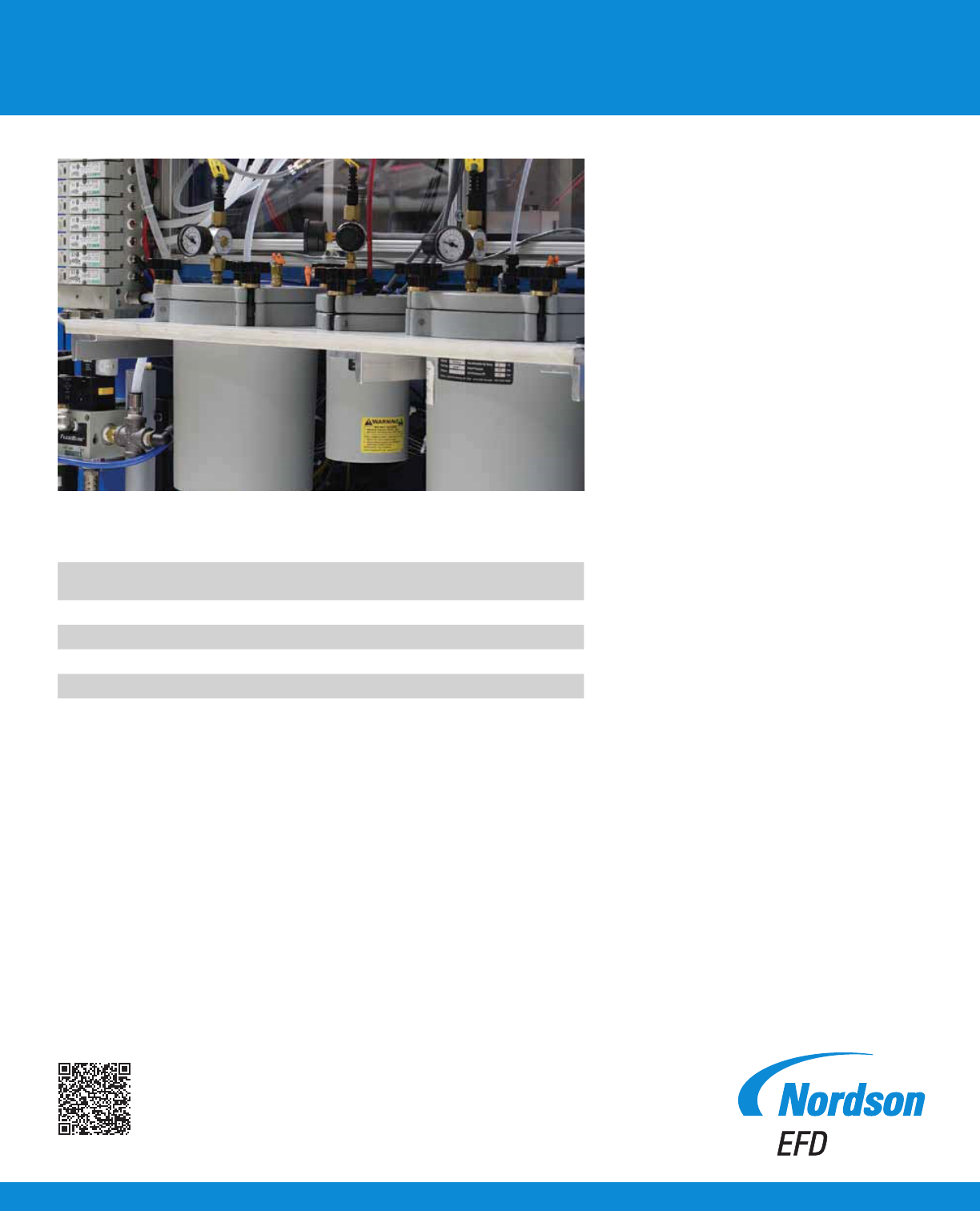

615 and 626 Series tanks
Analog Gauge Fluid Reservoirs
Prevent uid contamination and evaporation, and contain fumes with 615 and 626 Series tanks.
Nordson EFD uid tanks maintain steady uid
pressure, prevent uid contamination and
evaporation, and contain fumes. Tanks are
available with 0–1.0 bar (0–15 psi) or 0–7.0 bar
(0–100 psi) constant-bleed air regulators
to handle different uid viscosities.
The air regulator is selected based on uid
viscosity. Watery uids require the 0–1.0 bar
(0–15 psi) regulator, while thicker uids need
the 0–7.0 bar (0–100 psi) regulator. Since
tanks are charged by plant air, we recommend
the 5-micron lter/regulator (#7002002) to
lter contaminants.
Each uid tank is shipped complete with
constantbleed precision air regulator and
gauge, air hose with shutoff valve, liner,
and uid feed tubing.
more info
Model 615DTH / 615DTL Tanks 626DTH / 626DTL Tanks
Tank body Cast aluminum Cast aluminum
Replaceable liner Polyethylene (0.95 liter capacity) Polyethylene (3.8 liter capacity)
Inside diameter 9.7 cm (3.82") 17.3 cm (6.81")
Inside depth 17.4 cm (6.87") 24.8 cm (9.75")
Overall width 17.3 cm (6.81") 28.3 cm (11.14")
Overall height 35.6 cm (14.01") 40.6 cm (15.98")
Regulator & gauge 615DTH: 7.0 bar (100 psi)
615DTL: 1.0 bar (15 psi)
626DTH: 7.0 bar (100 psi)
626DTL: 1.0 bar (15 psi)
Maximum operating
pressure
7.0 bar (100 psi) 7.0 bar (100 psi)
Approvals TUV, CE, UKCA

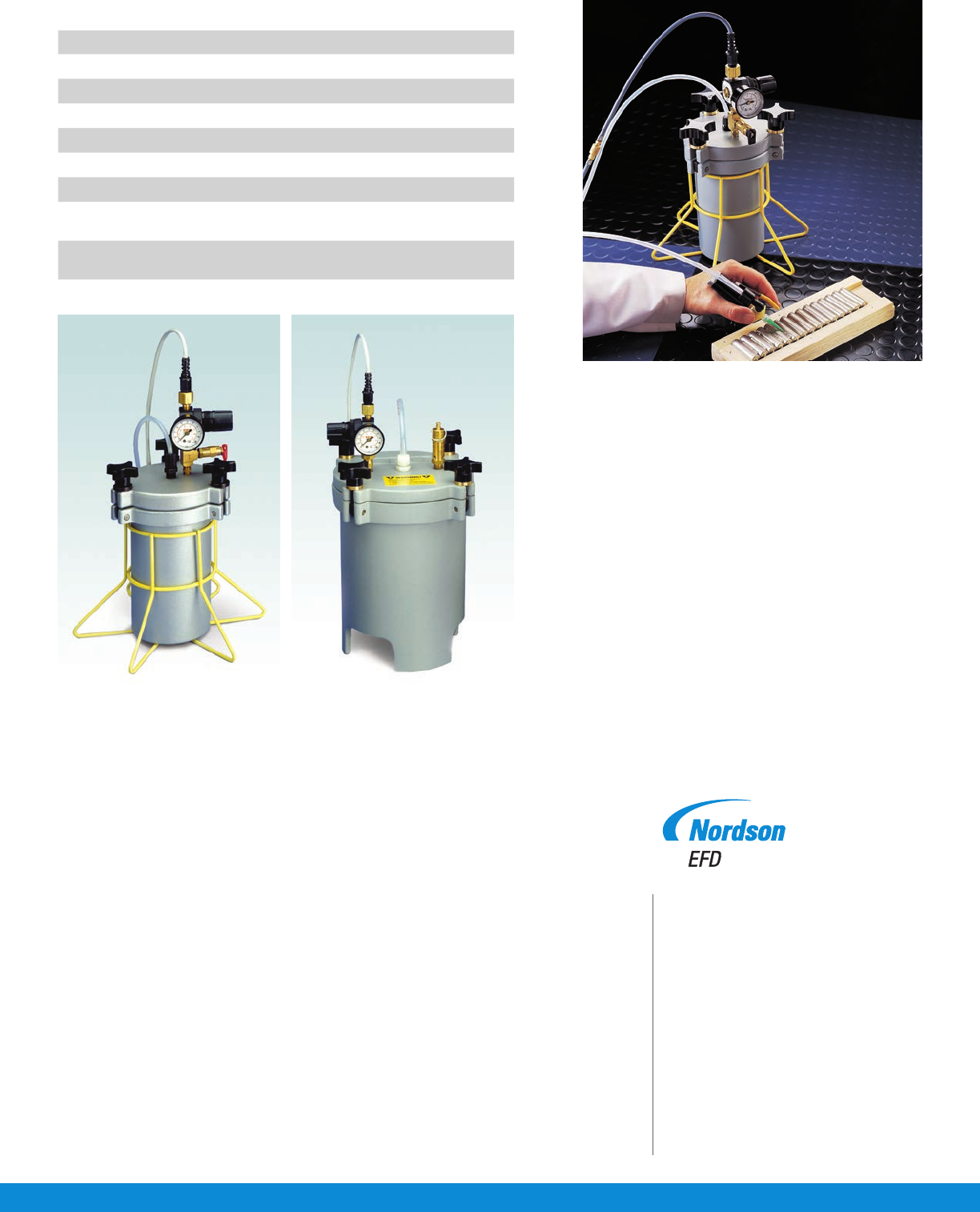

615 Series 1.0 Liter Tanks
Accommodates one pound/one liter
bottles. Recommended for pourable
uids only.
626 Series 5.0 Liter Tank
Fluid can be poured into the liner or
the uid container may be put into
the reservoir for direct dispensing.
