Gener al Design Basic Cont act Pr obe Family F100 Pitch [mm/mil] 2.54 / 100 Additional definition HP Electrical specific ations T ypical cont act resistance …
General
Design Basic Contact Probe
Family F100
Pitch [mm/mil] 2.54 / 100
Additional definition HP
Electrical specifications
Typical contact resistance [mOhm] 40.00
Mechanical specifications
Preload [cN] 130.00
Spring force [cN] 200.00
Nominal travel [mm] 4.30
Maximum travel [mm] 6.40
Dimensions
Total length [mm] 33.30
Tip style diameter [mm] 1.50
Barrel diameter [mm] 1.37
Materials & surfaces
Tip style 05
Plunger material Beryllium copper
Plunger plating Progressive
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Basic Contact Probes
F10005B150P200HP
Order code 1135348

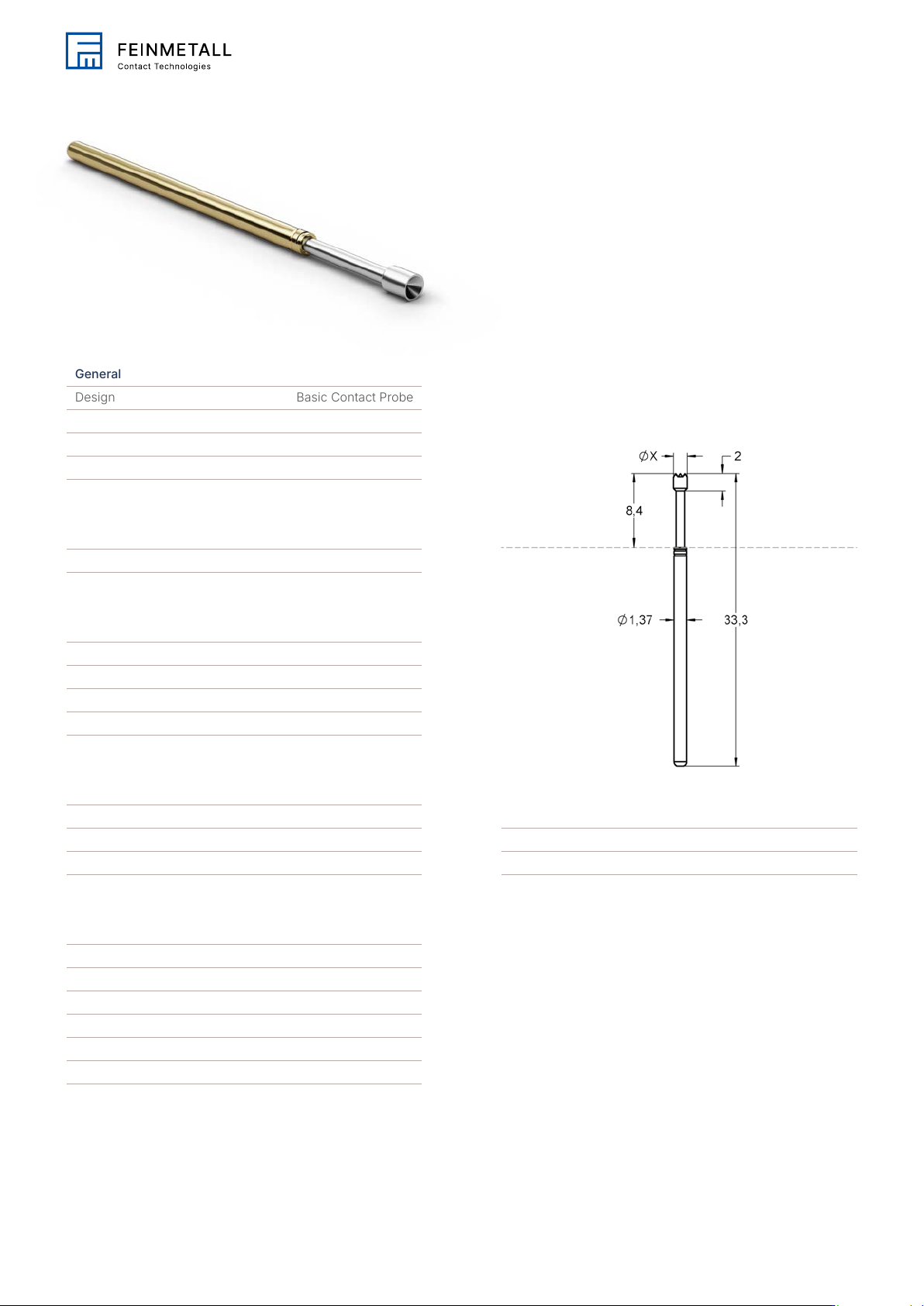

Family drawing
All measurements are in mm.

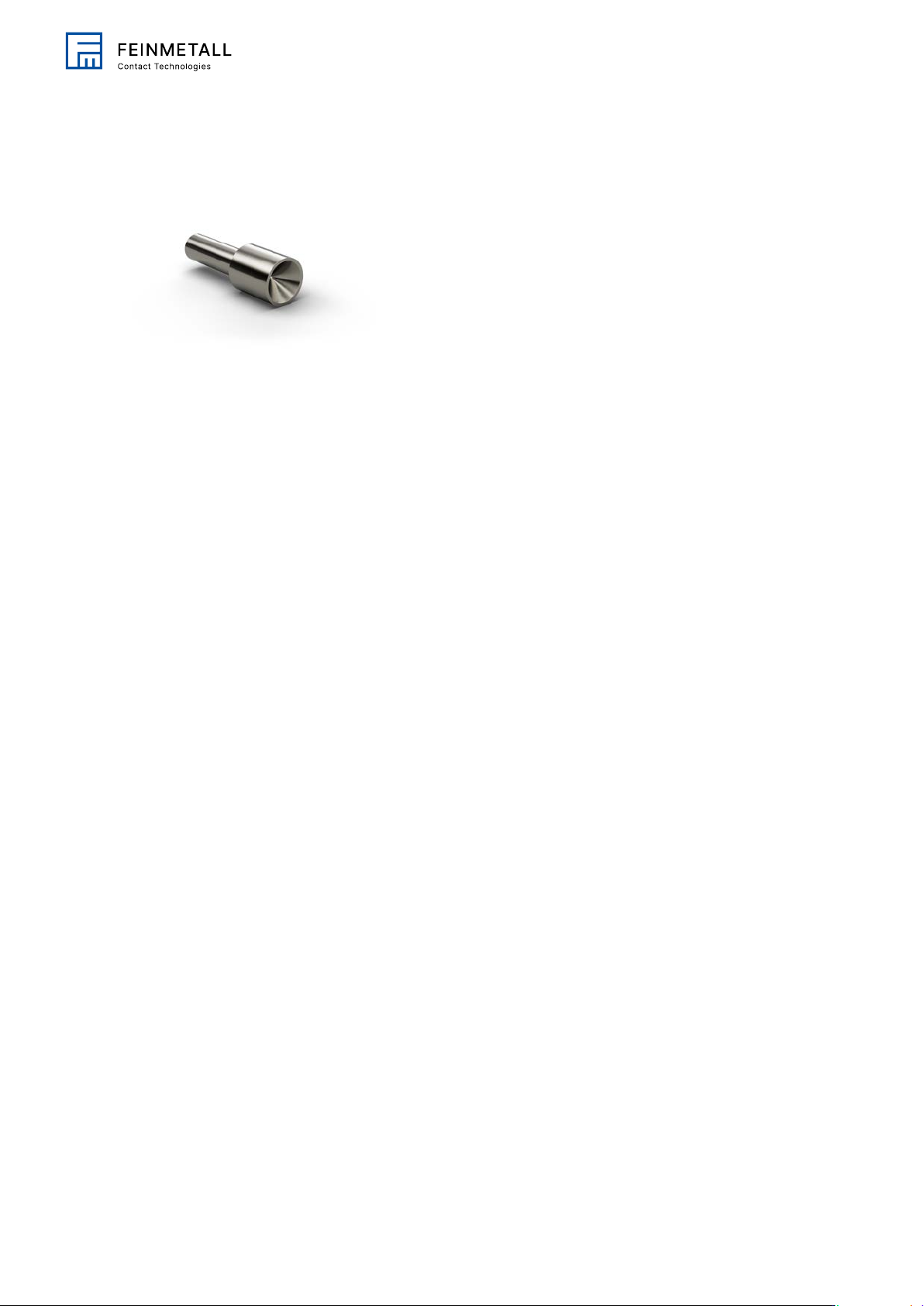

Tip style 1
