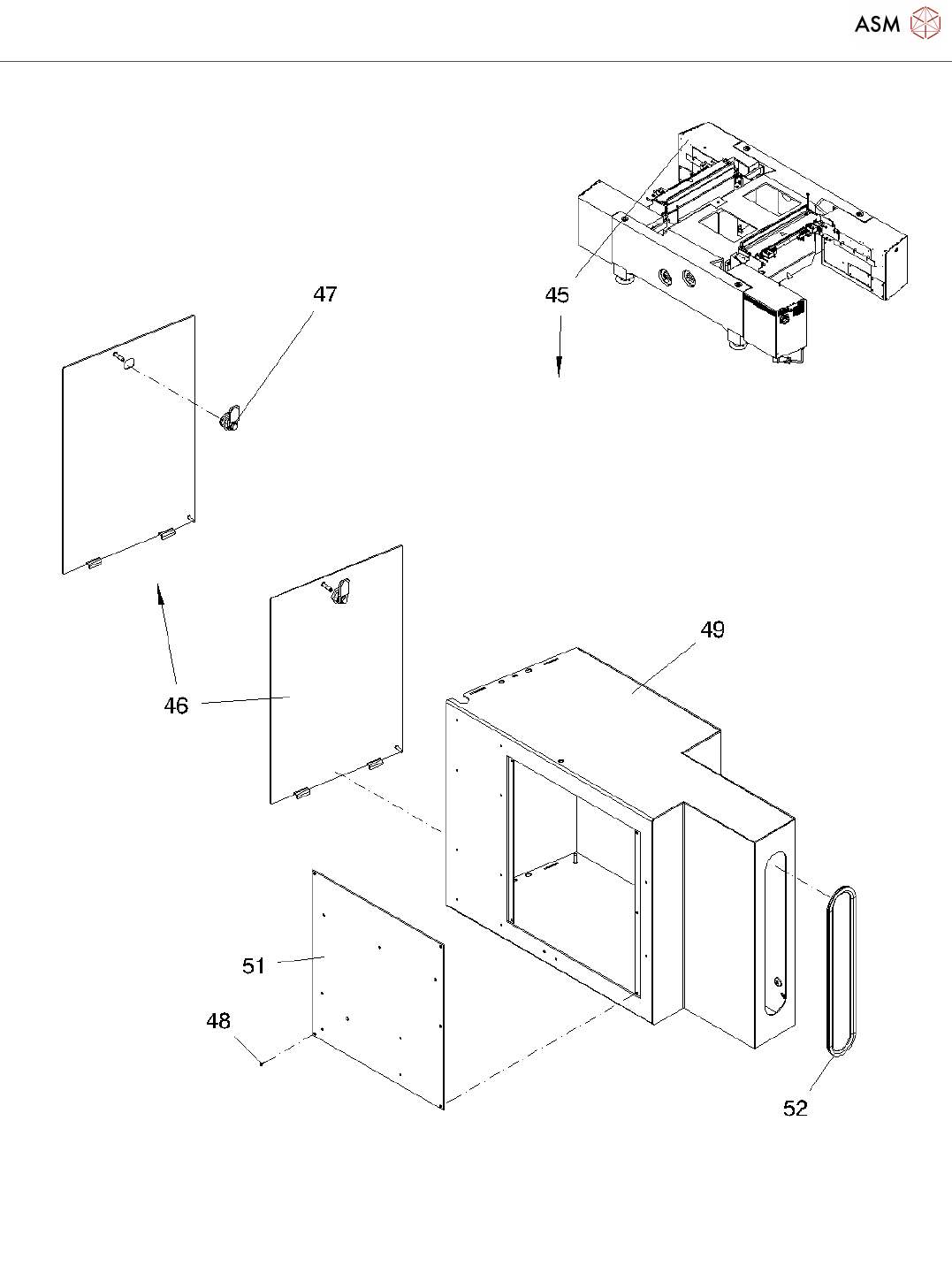

Chassis Page 9 / 12 23.11.2021
Chassis
Page 8 / 12 23.11.2021
Chassis
Page 9 / 12 23.11.2021
Chassis
Page 10 / 12 23.11.2021
Pos. Item no. Description Part marking
1 03059789-2 ML BASE FRAME /P001
03052240-01 GR SMEMA INTERFACE TERMINAL
/P001
03065159-02 SMEMA INTERFACE TERMINAL
03058260-02 CABLE: UPSTREAM, SMEMA INT.
TRK 1
00303076-01 CPC CABLE CLAMP KIT SIZE 17
03058259-02 CABLE: DOWNSTREAM, SMEMA INT.
TRK 1
00303076-01 CPC CABLE CLAMP KIT SIZE 17
03067273-02 CABLE: UPSTREAM, SMEMA INT.
TRK 2
00303076-01 CPC CABLE CLAMP KIT SIZE 17
03067274-02 CABLE: DOWNSTREAM, SMEMA INT.
TRK 2
SPARE PART
00303076-01 CPC CABLE CLAMP KIT SIZE 17
00805141-01 CABLE TIE W=3.6MM L=140MM TY
24M
STANDARD PARTS
03077808-01 COVER LEFT COMPLETE
14 03006518-02 VENTILATOR PLATE DR.130
15 03122436-01 COVER PLATE TRAFO CPL. / P001
16 03062774-01 SPRING
17 03075621-01 GROUNDING COMPLETE
18 03007366-01 COVER FOR WIRING DIAGRAM SPARE PART
19 03073034-01 HOLDER TAPE CUTTER LEFT CPL.
20 03073054-01 HOLDER TAPE CUTTER LEFT
WELDING ASSY
21 03072672-01 HOLDER TAPE CUTTER CPL. RIGHT
22 03072674-01 HOLDER TAPE CUTTER RIGHT
WELDING ASSY
23 03072642-01 EARTHING STRAP 10 QMM L.300
24 03072733-01 EARTHING STRAP KPL.
25 03068979-01 HOLDER LEFT CPL. SPARE PART
26 03068974-02 HOLDER LEFT MACHINED
03068881-01 REWORK DIN912 M12X120-A2-70
28 03067744-01 HOLDER RIGHT COMPLETE
29 03067751-02 HOLDER RIGHT MACHINED
