General
Design Basic Contact Probe
Family F075
Pitch [mm/mil] 1.90 / 75
Electrical specifications
Typical contact resistance [mOhm] 20.00
Mechanical specifications
Preload [cN] 110.00
Dimensions
Tip style diameter [mm] 1.00
Barrel diameter [mm] 1.02
Materials & surfaces
Tip style 06
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Bronze
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Basic Contact Probes
Order code 1134050
Family drawing

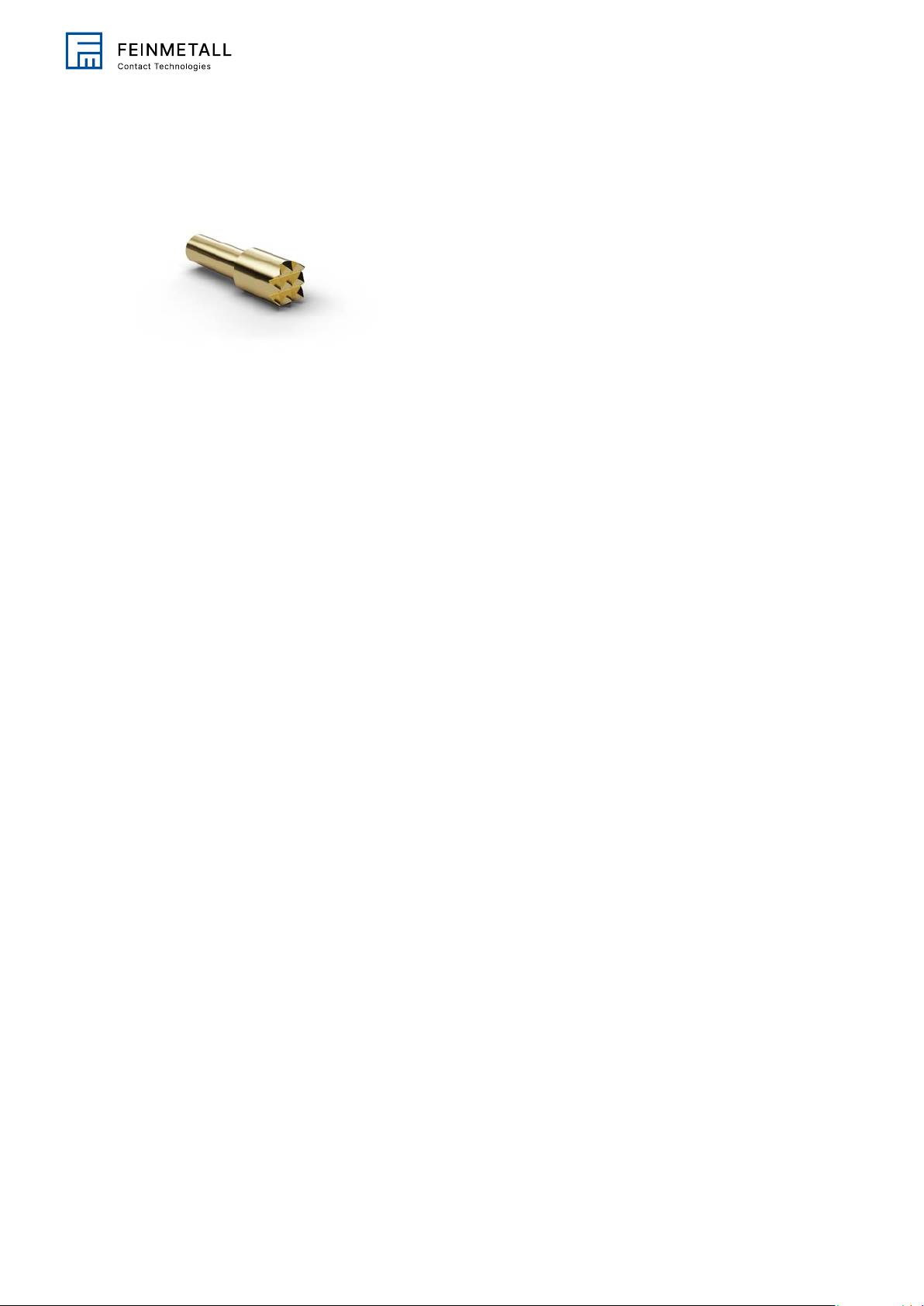

Tip style 1
