E-by SIPLACE Smart Feeder
32 mm E
Removing the Foil Rocker
Part Exchange
1/12
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool:
T1,T2,T3.T4
Wear Part: Consumables:

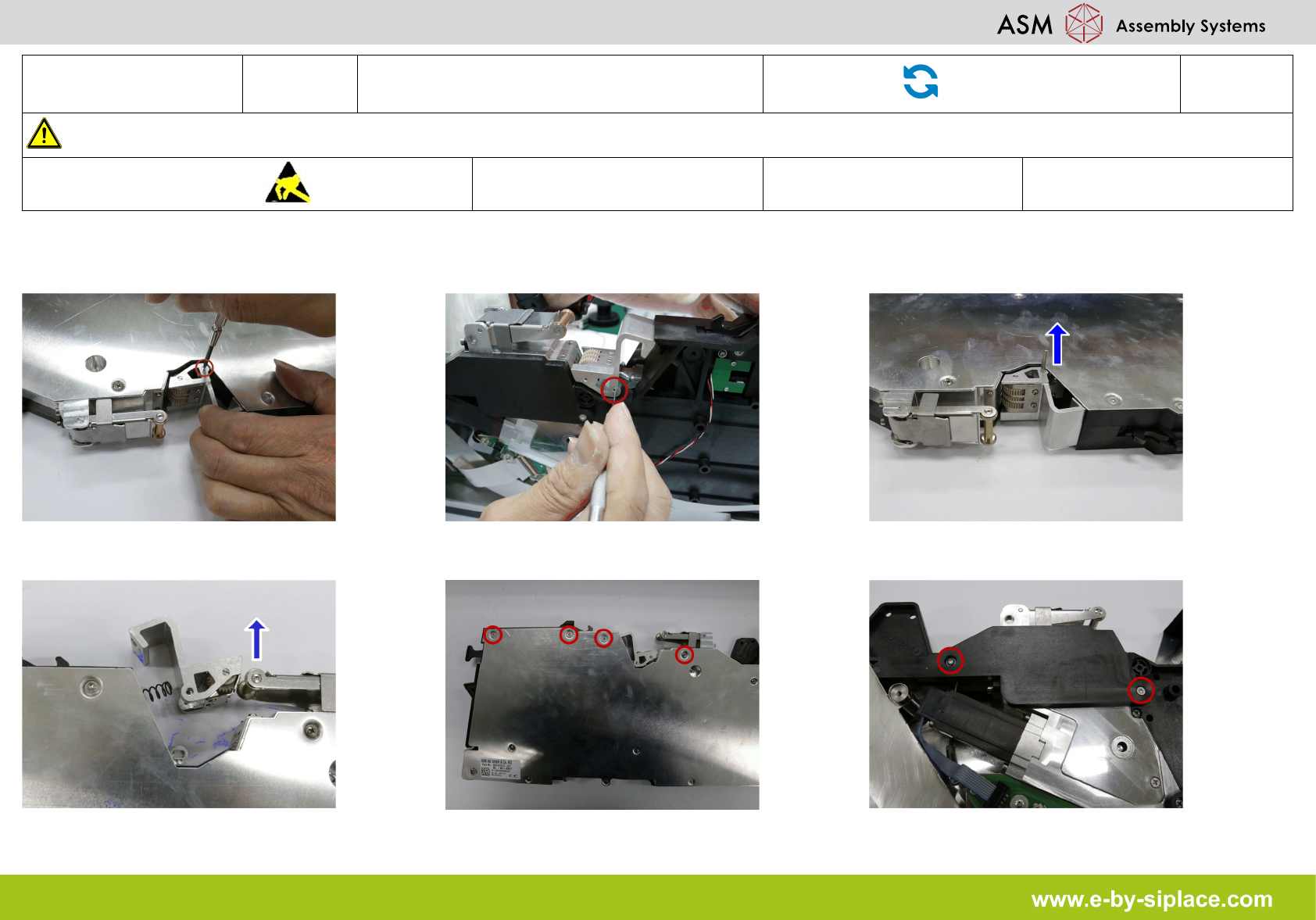

1. Loosen the rocker axle with T1. 2. Press the rocker axle from the left side with
T2.
3. Remove the rocker axle.
4. Lift up the rocker. 5. Remove these 4 screws with T3 and T4. 6. Remove these 2 screws with T3.
E-by SIPLACE Smart Feeder
32 mm E
Removing the Foil Rocker
Part Exchange
2/12
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool:
T3
Wear Part: Consumables:

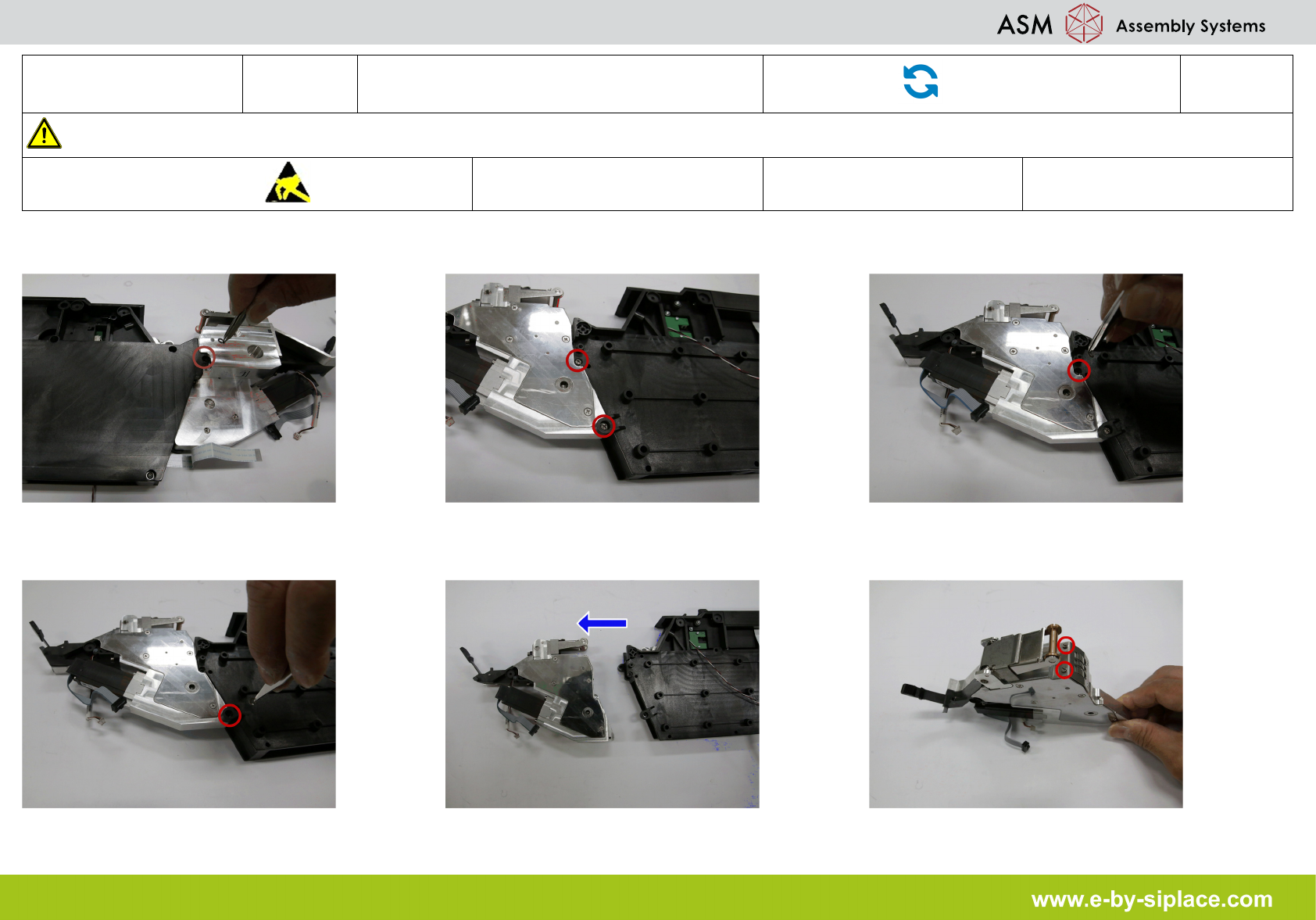

7. Lift up the spacer. 8. Remove the connector. 9. Remove the connector.
10. Remove these 2 connectors. 11. Slide out the Foil Disposal Drive. 12. Remove the screw with T3.
E-by SIPLACE Smart Feeder
32 mm E
Removing the Foil Rocker
Part Exchange
3/12
CAUTION! Refer to safety instructions in user manual before working on the machine.
ESD guidelines are to be followed
Tool:
T1,T3,T5
Wear Part: Consumables:
13. Remove the washer with T5. 14. Remove the 2 screws with T3. 15. Remove the washer with T5.
16. Remove the washer with T5. 17. Remove the Foil Disposal Drive. 18. Remove the 2 screws with T1.
