MODEL CS-G100 1012-003 9 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE FD-2 101 6301393902 UNIT(V .STICK FEEDER) 1 804FD-1 10-101 227A0198 101 -01 6300974744 PLA TE 1 21 1D671 1 101 -02 6301 152691 BRACKET 2 …
MODEL CS-G100
0506-001
8
101-60
101-73
101-57
101-61
101-61
101-22
101-44
101-45
101-46
101-24
101-23
101-25
101-35
101-21
101-84
101-74
.
101-58
.
101-43
101-36
101-83
101-72
.
101-56
101-17
101-19
101-19
101-82
101-82
101-82
101-82
.
101-82
101-71
.
101-53
.
101-82
101-71
.
101-53
.
101-81
101-71
.
101-52
.
101-83
101-72
.
101-55
.
101-83
101-72
.
101-56
.
101-56
101-83
101-72
.
101-55
.
101-81
101-71
.
101-51
.
101-81
101-71
.
101-51
.
101-59
101-02
101-04
101-06
101-02
101-09
101-14
101-15
101-10
101-16
101-12
101-07
101-18
101-03
101-09
101-11
101-01
101-05
101-18
101-81
101-71
.
101-51
.
101-54
101-81
101-71
.
101-51
.
101-08
101
振動スティックフィーダ
CS-G100

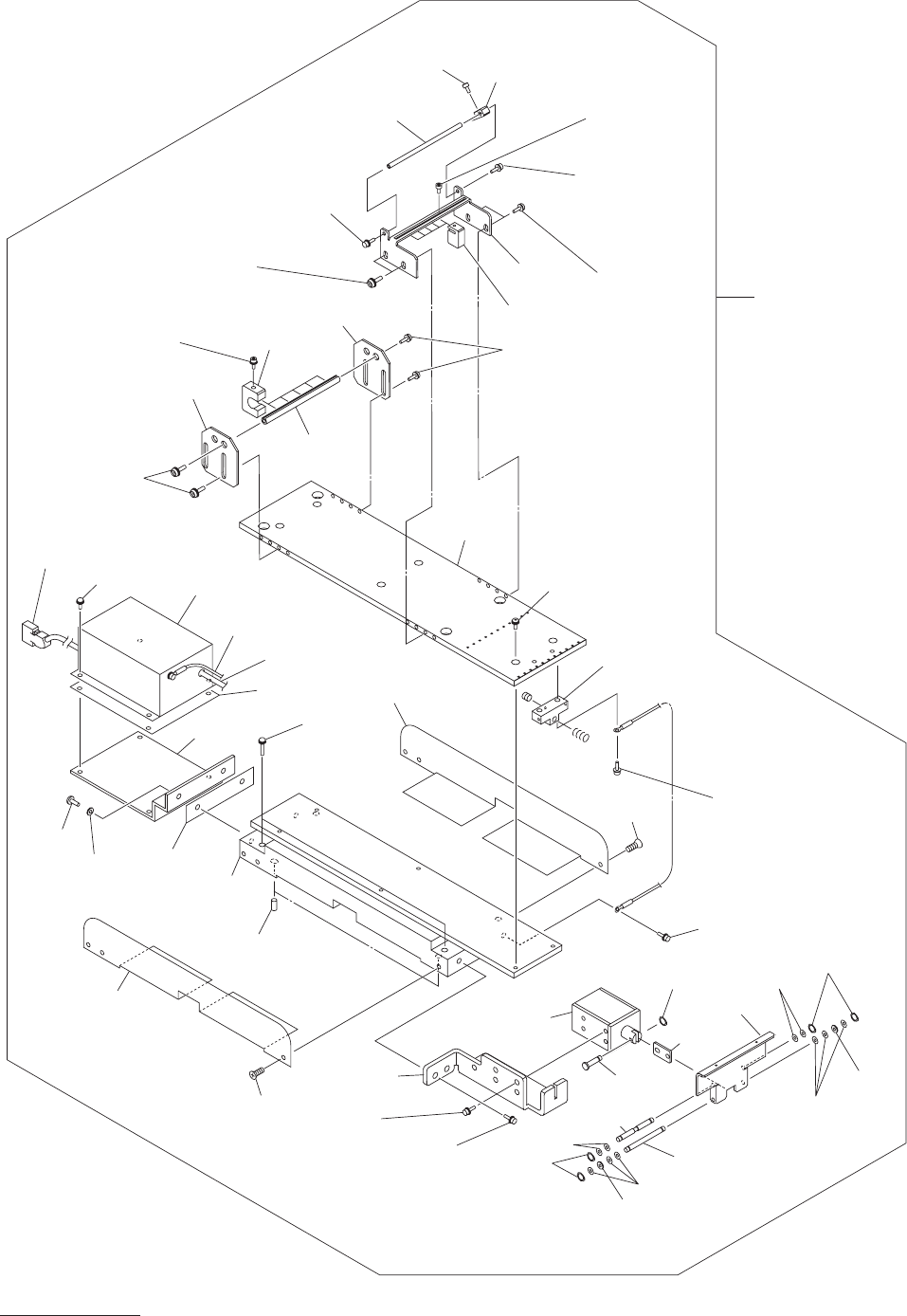

Vibratory Stick Feeder CS-G100
Fig. FD-2
フィーダユニット
Feeder Unit
MODEL CS-G100
1012-003
9
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
FD-2
101 6301393902 UNIT(V.STICK FEEDER) 1 804FD-110-101 227A0198
101 -01 6300974744 PLATE 1 211D671
1
101 -02 6301152691 BRACKET 2 211F7158
101 -03 6301152707 BRACKET 1 211F7159
101 -04 6301399249 BLOCK 6 211G4294
101 -05 6301439723 BLOCK 1 211G4506
101 -06 6301152721 SHAFT 2 213A0931
101
-07 6301399324 SHAFT 1 213A1247
101
-08 6301399331 SHAFT 1 213A1248
101
-09 6301399256 BLOCK 6 211G4295
101 -10 6301399263 BLOCK 6 211G4296
101 -11 6301399294 BRACKET 1 211F
A081
101 -12 6301399317 PIN,HINGE 1 216D0520
101
-13 6301399300 PLATE 1 211DA968
101 -14 6301399232 PIN,GUIDE 1 216F0944
101
-15 6301399225 COVER 1 211AA1
11
101 -16 6301399287 SOLENOID 1 4L800040
101
-17 4110160203 RING E 2.5 1 221K0114
101 -18 6301439761 COLLAR 2 216A1353
101
-19 6300010534 RING 4 221K0001
101
-21 6301399218 UNIT 1 227A0199
101
-22 6301152509 UNIT,I/O(CONTROLLER) 1 4U250129
101
-23 6301152660 BRACKET 1 211F7157
101 -24 6301152677 SHEET 1 211H0271
101 -25 6301152684 SHEET 1 211H0272
101 -35 6301152783 COVER 1 211A7606
101 -36 6301399270 COVER 1 211AA1
12
101 -43 6301152882 PIN,LOCATE 2 216E1365
101
-44 6301152899 CORD(CABLE ASSY) 1 4W202497
101
-45 6301399362 CORD 1 4W203280
101
-46 6301399379 CORD 1 4W203281
101
-51 6301442686 BOLT,HEX-SCT(BUTTON HEAD) 10 221A0356
101 -52
4111404108 BOLT,HEX-SCT 4X16 2 M4X16 SUS 221A0464
101
-53 4111403903 BOLT,HEX-SCT 4X12 3 M4X12 SUS 221A0455
101
-54 4111403507 BOLT,HEX-SCT 3X10 6 M3X10 SUS 221A0462
101
-55 4111316302 BOLT,HEX-SCT 3X8 2 M3X8 SUS 221A0453
101
-56 4111379000 BOLT,HEX-SCT 3X6 16 M3X6 SUS 221A0452
101
-57 4111406409 SCR PAN 5X16 2 M5X16 PAN 221E0512
101 -58 4110982805 SCR PAN 6X30 4 M6X30 PAN 221E0523
101 -59 6301439785 MACHINE SCREW 6 221D0181
101
-60 6301439792 MACHINE SCREW 4 221D0182
101
-61 4110347208 SCR FLT 3X8 6 M3X8 FLT
221D0218
101 -71 4110081706 WASHER SPR 4 15 SW4 F 221H0283
101
-72 4110864408 WASHER SPR 3 12 SW3 F 221H0280
101
-73 4110082109 WASHER SPR 5 2 SW5 F 221H0286
101
-74 4110082505 WASHER SPR 6 4 SW6 F 221H0288
101
-81 4111192104 WASHER V 4X9X0.8 12 FW4 F 221H0316
101
-82 4111192005 WASHER F 4X8X0.8 13 FWS4 F 221H0339
101
-83 4111191909 WASHER V 3X7X0.5 12 FW3 F 221H0311
101 -84 4111414206 WASHER V 6X12.5X1.6 4 FW6 F 221H0319
MODEL CS-G100
1012-002
10
See Fig.FD-1
Key No.2
VIEW "A"
508
501
515
515
515
514
A
503
502
504
514
514
506
507
513
512
511
.
.
518
振動スティックフィーダ
CS-G100
Vibratory Stick Feeder CS-G100
Fig. FD-6
電装部
Electrical Section
