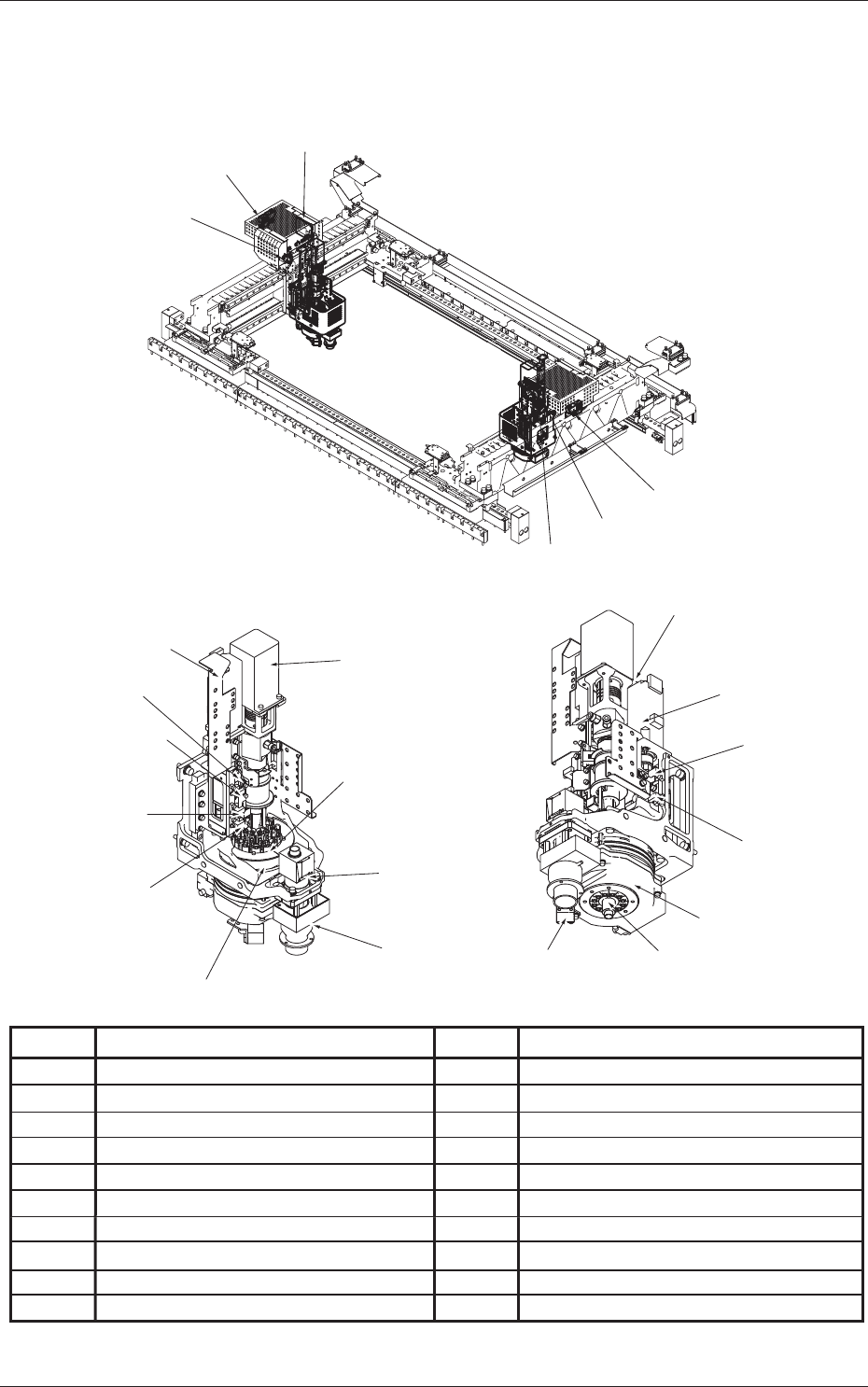

2-7 0606-001 传感器 / 负载配置图 安装头 传感器 / 负载配置图 安装头 Symbol Name Symbol Name -B3101 Nozzle Selection Position -B3102 Nozzle U/D Interlock -B3103 Head U/D (+) Limit -B3104 Nozzle U/D (+) Limit -B3105 Nozzle U/D (-) Limit -B3106 H…
2-60606-001
传感器 / 负载配置图 切割器
-B6301
-M63
-B6302
-B6301
-M63
-B6302
Symbol Name Symbol Name
-B6301 Cutter Origin (+)
-B6302 Cutter Origin (-)
-M63 Cutter Motor
传感器 / 负载配置图 切割器
2-70606-001
传感器 / 负载配置图 安装头
传感器 / 负载配置图 安装头
Symbol Name Symbol Name
-B3101 Nozzle Selection Position
-B3102 Nozzle U/D Interlock
-B3103 Head U/D (+) Limit
-B3104 Nozzle U/D (+) Limit
-B3105 Nozzle U/D (-) Limit
-B3106 Head U/D (-) Limit
-B0413 Linear Measure Light Reception
-B0413T Linear Measure Light Emission
-B36 PEC Recognition Camera
-E39 PEC Recognition Lighting
-M31 Head Rotation Motor
-M32 Nozzle Selection Motor
-M33 Nozzle U/D Motor
-M34 Head U/D Motor
-U03 Linear Measure Sensor Amplifier
-U04 I/O Board (Head Movable Section)
-U37 Slip Ring
-Y0401 to Y0412 Vacuum Changeover Valve 1 to 12
-Y0901 Air/Vacuum Selector
-Y0902 Air Blow
-M33
-B3101
-B3105
-B3102
-B3104
-E39
-B36
-Y0401 to Y0412
-U37
-B0413
-U03
-B0413T
-M31
-B3103
-M32
-M34
-B3106
-Y0901
-Y0902
-Y0901
-Y0902
-U03
-U04
2-8
传感器 / 负载配置图 传送带 (NL、NR)
0606-001
传感器 / 负载配置图 传送带 (NL、NR)
Symbol Name
-M51 NL-W1 Chute Width Changeable Servomotor
-M52 NL-W2 Chute Width Changeable Servomotor
-M51 NR-W1 Chute Width Changeable Servomotor
-M52 NR-W2 Chute Width Changeable Servomotor
-B4101 NL Transferred PCB Detection Sensor (Deceleration)
-B4102 NL Transferred PCB Detection Sensor (Stop)
-B4401 NR Transferred PCB Detection Sensor (Deceleration)
-B4402 NR Transferred PCB Detection Sensor (Stop)
-B5101 NL Chute Width Changeable 1 Limit (+)
-B5201 NL Chute Width Changeable 2 Limit (-)
-B5101 NR Chute Width Changeable 1 Limit (+)
-B5201 NR Chute Width Changeable 2 Limit (-)
-M41 Transfer Servomotor (NL)
-M44 Transfer Servomotor (NR)
Symbol Name
-M41
-B4102
-B4101
-B4402
-B4401
-B5201
-M51
-B5201
-M44
-B5101
-M52
-M52
-B5101
-M51
