MODEL EG-100 1004-004 9 Key No. P AR T No. P AR T NAME Q’ty REMARKS New Code NOTE 151 63014741 13 ASSY ,SCOPE UNIT 1 846B--010-051 0Z100027 151 -01 6301474120 SCOPE UNIT 1 4Z100152 151 -02 6301474137 UNIT ,CAMERA 1 B01 4…

100%1 / 28
MODEL EG-100
0609-001
8
151-02
151-01
153-02
160
.
165
.
168
165
.
168
.
170
See Fig. B-1
Key No.1
See Fig. B-1
Key No.2
151
162
153-01
153
本体部
MAIN BODY SECTION

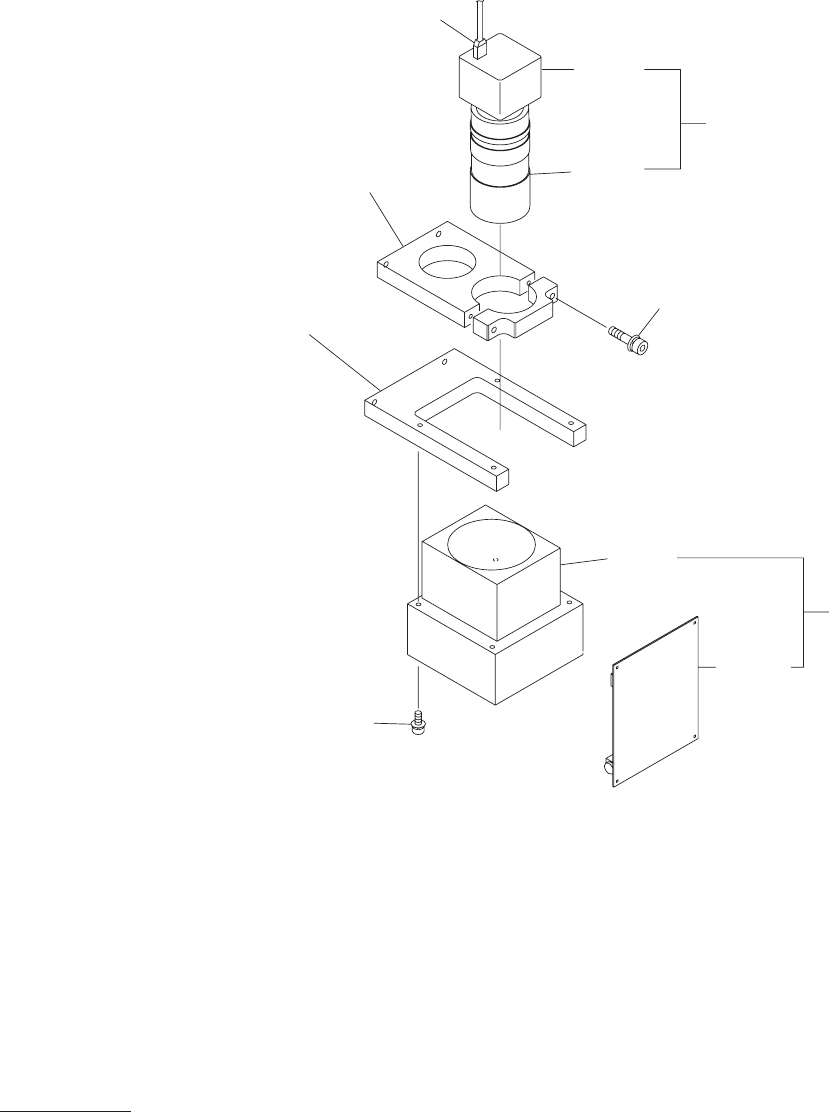

Fig. B-2
照明ユニット
Lighting Unit
MODEL EG-100
1004-004
9
Key No. PART No. PART NAME Q’ty REMARKS New Code
NOTE
151 6301474113 ASSY,SCOPE UNIT 1 846B--010-051 0Z100027
151 -01 6301474120 SCOPE UNIT 1 4Z100152
151 -02 6301474137 UNIT,CAMERA 1 B01 4U220099
153 6301675510 ASSY,P.C.B.MOUNT 1 846B--010-053 0B110015
153 -01 6301474083 P.C.B,MOUNT 1 U01 4B111561
153 -02 6301675503 LIGHTING UNIT 1 E01 4Z110225
160 6300007626 BOLT,HEX-SCT 4 846B--010-010 221A0017
162 6301486062 CORD 1 846B--010-062 4W203645
165 4111412905 WASHER SPR 4 6 846B--010-015 221H0284
168 4111414008 WASHER V 4X9X0.8 6 846B--010-018 221H0315
170 6300007688 BOLT,HEX-SCT 2 846B--010-020 221A0023
B-2
MODEL EG-100
0712-002
10
See Fig. B-1
Key No.3
240
237
.
238
.
239
234
.
235
.
236
231
230
232
233
234
.
235
.
236
237
.
238
.
239
263
254
261
259
260
256
255
257
VIEW "A"
See Fig. B-2
Key No.153-01
A
本体部
MAIN BODY SECTION
Fig. B-3
電装部
Electrical Section
