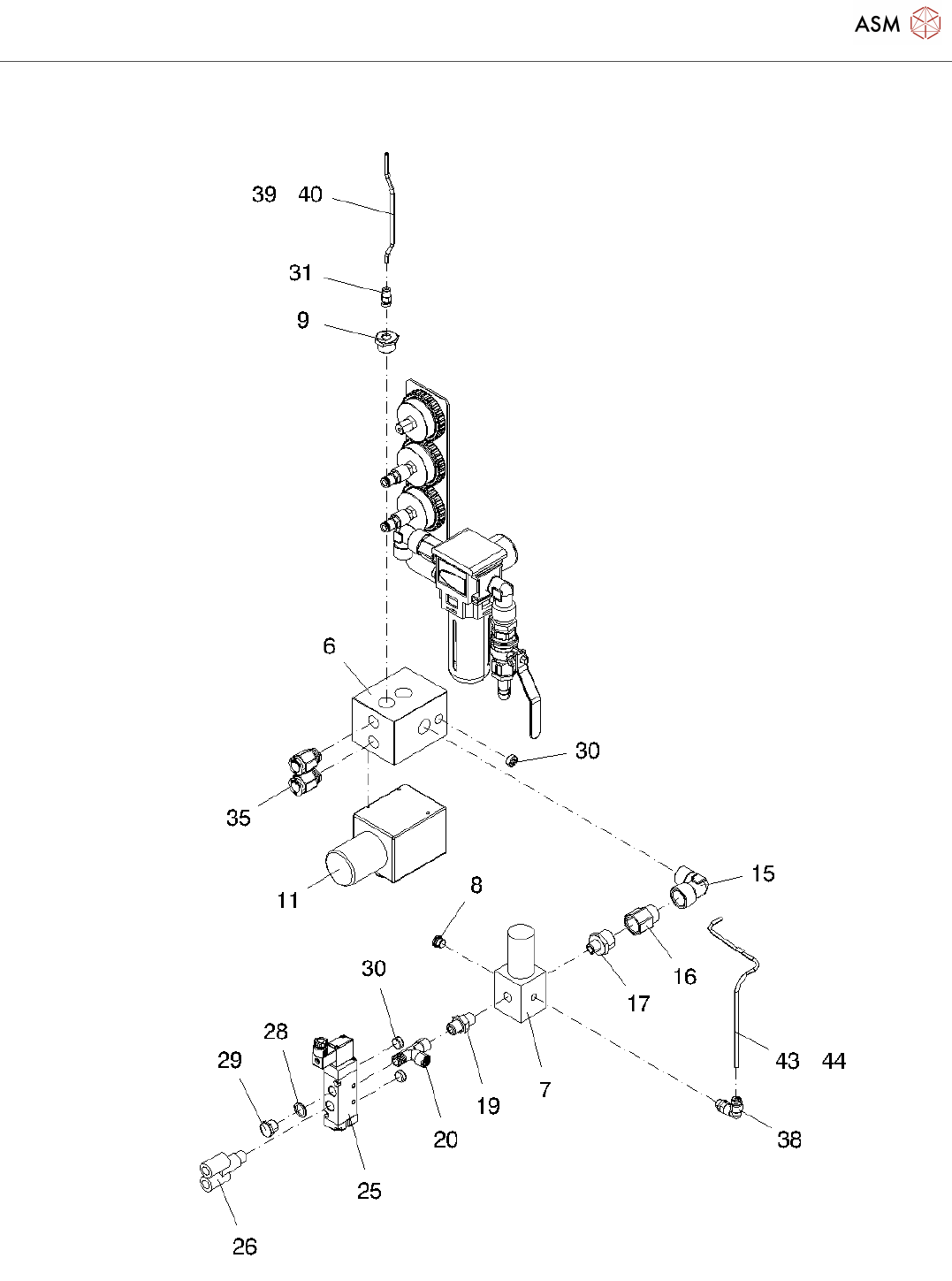

Pneumatic unit
Page 4 / 6 24.11.2021
Pneumatic unit
Page 5 / 6 24.11.2021
Pos. Item no. Description Part marking
1 03056289S06 GR PNEUMATICS /P001 SPARE PART
2 03062197-01 MANOMETER G1/4 D-50MM
0-6BAR+RING
SPARE PART
3 03062277-01 5/2 SPOOL VALUE G1/8 DN 4MM SPARE PART
4 03065169-01 SHEET FOR PRESSURE GAUGE
5 03028263-01 PRESSURE REGUL. VALVE, G1/8,
MOD. 105
SPARE PART
6 03065186-01 CONTROL BLOCK (833-943852)
7 03167425-01 RGULATOR G1/4 0.5-10BAR SPARE PART
8 03028353-01 HEXAGON SOCKET PLUG, G1/8 W.
SEALING
9 03028275-01 REDUCER
10 03062062-01 O-RING 9X1.5 NBR70-LABS FREI
(833-030180
11 03065425S06 SENTRONIC-D DN8 SUBB1/4 10BAR Spare Part
12 00349311S01 FILTER 112 G 1/2 INCH WIH GAUGE SPARE PART
13 03050213-01 FILTER ELEMENT 5UM
14 03065266-01 BALL VALVE G1/2 TYP 500305
15 00336901-01 ANGLE INSIDE/OUTSIDE 1/2
INCH-1/2 INCH
Spare Part
16 03062269-01 REDUCING NIPPLE
17 03062069-01 DOUBLE NIPPLE 1/4-1/2
(2510-1/4-1/2)
18 03065265-01 BUSHING G 1/2 LV 46.0211
19 03028344-01 NIPPLE-D R1/4 - R1/4 SPARE PART
20 03065277-01 T-PIECE (SCREW CONNECTION)
2070-1/4
21 03028348-01 DOUBLE NIPPLE R1/8 - R1/4
22 03044962-01 SILENCER 1/8
23 03062072-01 T-PIECE G1/8 (2060-1/8)
24 03062059-01 DOUBLE IPPLE DETACHABLE G1/8 (
AJ252.75)
25 00344974S01 MAGNETIC VALVE 5/2 G1/4 W/O
MAN.ACTUAT.
SPARE PART
26 03065329-01 Y-PLUG G1/4 ASQSY1410G
27 03062065-01 6 WAY DISTRIBUTOR G1/8-6/4
(AJIQSLV6186)
28 00327327-01 SEALING RING G1/4 INCH*2 PA STANDARD PARTS
Pneumatic unit
Page 6 / 6 24.11.2021
Pos. Item no. Description Part marking
29 03028284-01 SCREW PLUG G1/4
30 03028349-01 SILENCER G1/4
31 03038436-01 DOUBLE NIPPLE DETACHABLE
R1/2-R1/
03062178-01 ANGLE + ORING (833-050351_ASM)
03062062-01 O-RING 9X1.5 NBR70-LABS FREI
(833-030180
33 03062063-01 REDUCING PLUG IN AJIQSG60H40
34 03062064-01 PLUG TUBE D6MM AJQSC60H
35 03065344-01 STRAIGHT SCREW CONNECTION
AJIQSG3812G
03038682-01 STRAIGHT SCREW CONNECTION
G1/4
03038558-01 STRAIGHT QUICK RELEASE
FASTENER G1/8, D=6
38 03062071-01 L-FITTING (AJQSL184)
39 03066082-01 TUBE PORTAL AJ259.01
40 03062402-01 POLYETHYLEN HOSE AJ259 10-8
41 03066085-01 TUBE BULK AJ259.01
42 03062402-01 POLYETHYLEN HOSE AJ259 10-8
43 03066083-01 TUBE MASCHINE 259.01
44 03062402-01 POLYETHYLEN HOSE AJ259 10-8
03015210-01 STOPFEN QSC-12H
