- - 17. O PTI ON C OM P ONE NTS (R X-6 FI TTING ) (FOR T R8S ) 1 3 1 2 9 9 5 7 1 2 1 4 3 6 3 6 1 7 2 2 2 2 1 4 2 2 2 0 2 0 2 0 2 0 2 0 2 0 2 2 1 7 1 6 1 6 1 8 1 8 1 8 1 8 2 5 2 0 2 1 2 0 1 0 1 7 1 5 1 5 4 3 5 2 6 3 3 6…
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-54638 SW_BOX_BASE_8S 1
2 401-54640 SW_BOX 1
3 400-42218 TRAY LED (15) PCB ASM 2
4 E5746-723-000 COLLER L13.3 16
5 NM-3034000-SF FLANGE NUT 16
6 SM-0040601-SC SCREW M4X0.7 L=6 4
7 HX-0005500-0N RUBBER BUSHING 1
8 400-73830 TAG INSERT(T) KIT 30
9 SM-4031001-SC SCREW M3X0.5 L=10 30
10 WP-0320500-SC WASHER M3 30
11 WS-0310002-KN SPRING WASHER M3 30
12 NM-6030001-SC NUT M3X0.5 TYPE1 30
13 401-55867 FRONT_COVER_U_RFID 1
14 401-55809 ANTENNA_BR_8S 1
15 SM-0040601-SC SCREW M4X0.7 L=6 6
16 401-54604 STK_SENSOR_BR 1
17 SL-4040891-SC SCREW M4 L=8 2
18 400-73667 ANTENNA ARRAY 14MM PITCH / 15 POSITION 2
19 400-81313 SHIELD BRACKET 6D 2
20 SM-4030801-SC SCREW M3X0.5 L=8 4
21 NM-3034000-SF FLANGE NUT 6
22 401-54622 SENSOR_BR_SUPPORT 1
23 SL-4040891-SC SCREW M4 L=8 1
24 SL-6040692-TN SCREW M4 L=6 2
25 401-54736 RFID_Z_SENSOR_DOG 1
26 SL-6040692-TN SCREW M4 L=6 1
27 401-55945 RECONSTRUCTION IS SCN PCB ASM 1
28 HD-0022300-00 PHOTO SENSOR 2
29 SM-4041001-SC SCREW M4X0.7 L=10 2
- -

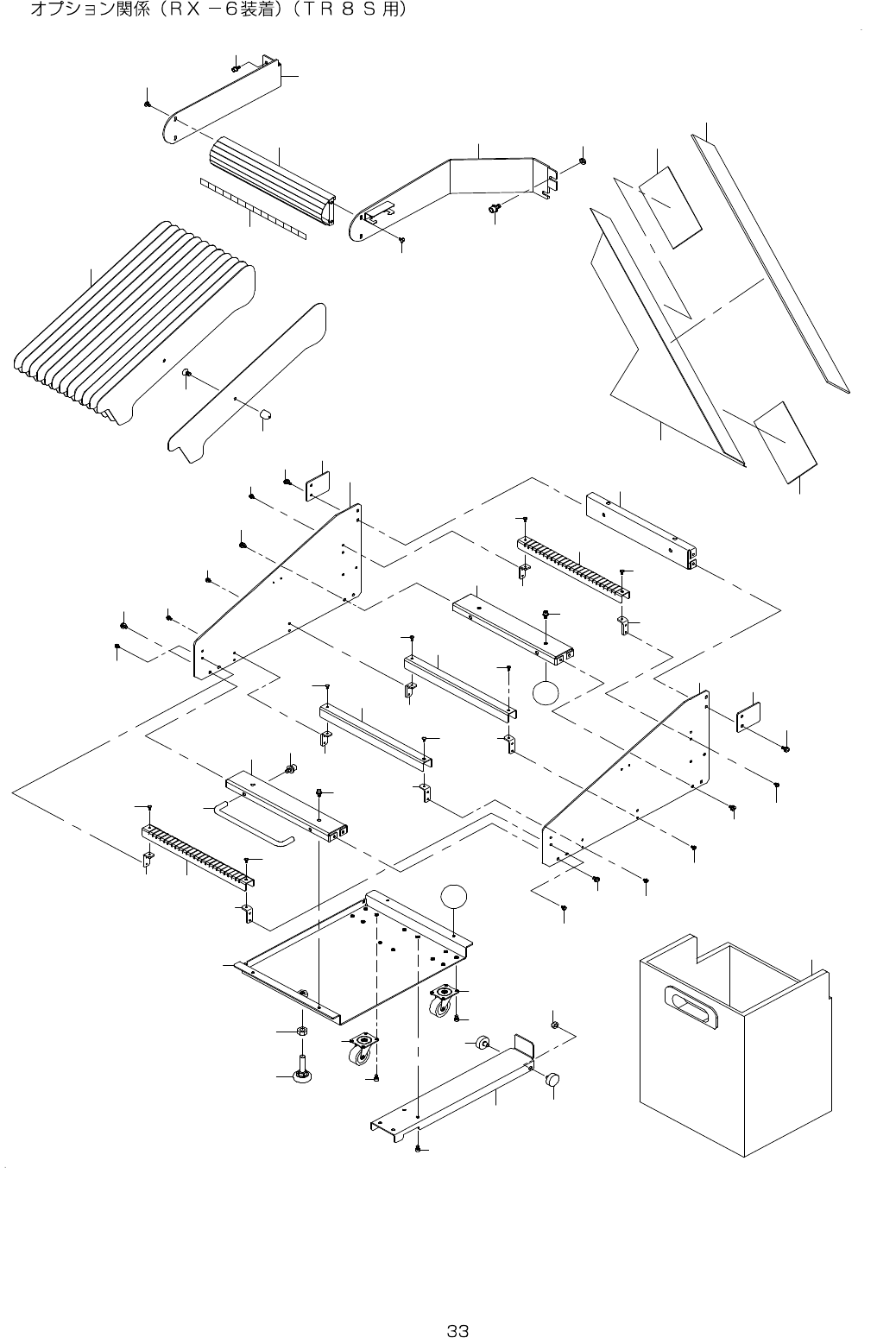

17. OPTION COMPONENTS (RX-6 FITTING)(FOR TR8S)
1 3
1 2
9
9
5
7
1
2
1 4
3 6
3 6
1 7
2 2
2 2
1 4
2 2
2 0
2 0
2 0
2 0
2 0
2 0
2 2
1 7
1 6
1 6
1 8
1 8
1 8
1 8
2 5
2 0
2 1
2 0
1 0
1 7
1 5
1 5
4
3
5
2 6
3 3
6
8
1 1
2 1
2 5
2 6
2 6
2 1
2 1
2 1
2 1
2 1
2 1
2 2
2 2
2 2
2 2
2 3
2 4
2 7
2 7
2 8
2 9
3 0
3 1
3 2
3 2
A
A
1 9
1 9
3 4
3 5
- -
REF.NO NOTE PART NO D E S C R I P T I O N Qty
1 401-28000 TAPE_GUIDE_BR_R_FB 1
2 401-54743 TAPE_GUIDE_BR_L_HARF 1
3 401-54693 TAPE_GUIDE_BR_HALF_BANK 1
4 401-54713 FEEDER_POSITION_LABEL_14 1
5 SM-0040601-SC SCREW M4X0.7 L=6 4
6 SL-6041092-TN SCREW 1
7 SL-6061292-TN SCREW 2
8 400-84676 SEPARATION_PLATE 13
9 401-28045 TRASH_BOX_HOLDER_S 2
10 400-94864 TAPE_HOLDER_HANDLE 1
11 SL-6061292-TN SCREW 2
12 400-98844 ADJUSTER_FOOT 1
13 NM-6080001-SC NUT M8X1.25 1
14 401-10285 TAPE_HOLDER_PL 2
15 401-54694 REEL_FIXING_BAR14 2
16 401-54695 TAPE_SUPPORT_HALF 2
17 401-54696 TAPE_HOLDER_BR_HALF 3
18 SL-4040891-SC SCREW M4 L=8 8
19 SL-6040892-TN BOLT 4
20 400-84674 REEL_SUPPORT_ANGLE 8
21 SM-0030601-SC SCREW M3X0.5 L=6 8
22 SL-4030691-SC SCREW M3 L=6 16
23 401-54698 CASTER_BRACKET_HALF 1
24 401-54699 TRASH_BOX_HOLDER_HALF 1
25 400-94860 TH_CASTER 2
26 SM-6040602-TN BOLT 12
27 401-10284 TH_ROLLER 2
28 NM-6060001-SC NUT M6 2
29 401-54697 TRASH_BOX_ASM_HALF 1
30 401-54689 TAPE_TRASH_GUIDE 1
31 401-54746 TAPE_TRUSH_GUIDE_PLATE 1
32 E2506-716-000 MOP MAGNET 2
33 WP-0641601-SC WASHER 1
34 SM-1031001-SC SCREW M3X0.5 L=10 13
35 E1612-706-C00 REEL SH 13
36 SL-4041091-SC SCREW M4 L=10 4
