Gener al Design Basic Cont act Pr obe Family F7 33 Pitch [mm/mil] 4 .00 / 157 Electrical specific ations T ypical cont act resistance [mOhm] 25. 00 Mechani…
General
Design Basic Contact Probe
Family F733
Pitch [mm/mil] 4.00 / 157
Electrical specifications
Typical contact resistance [mOhm] 25.00
Mechanical specifications
Preload [cN] 80.00
Spring force [cN] 300.00
Nominal travel [mm] 4.00
Maximum travel [mm] 5.00
Pointing accuracy +/- [mm] 0.10
Thread M2
Tool size [mm] 3.0
Dimensions
Total length [mm] 28.30
Projection height [mm] 10.30
Tip style diameter [mm] 2.30
Barrel diameter [mm] 2.65
Collar diameter [mm] 3.60
Press ring diameter [mm] 3.60
Materials & surfaces
Tip style 05
Plunger material Beryllium copper
Plunger plating Gold
Barrel material Brass
Barrel plating Gold
Spring material Spring steel
Spring plating Silver
Accessories
Basic Threaded Probes
F73305B230G300
Order code 1001644

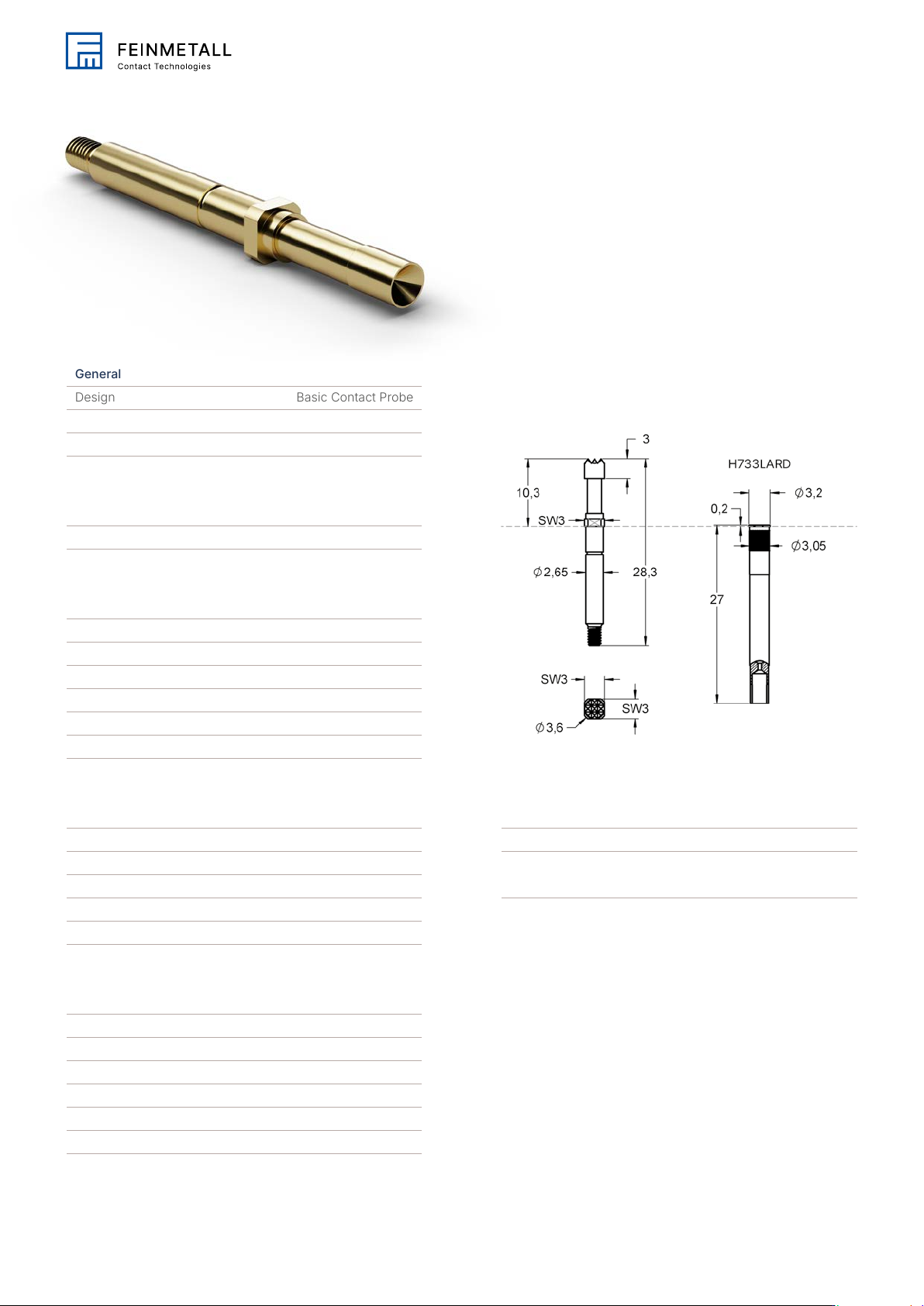

Family drawing
Tip style 1
