Cencorp 1300 BR Depaneling

Cencorp 1300 BR provides best flexibility and efficiency in

the PCB separating process

Cencorp’s first depaneling product was a

manually fed shearing machine that was

introduced in the early 1980’s. Now with more

than 30 years’ experience in manufacturing

depaneling equipment, with pride we launch a

new generation in-line depaneling cell, the

Cencorp 1300 bottom router. Cencorp 1300 BR

has extremely high accuracy and speed to cut

PCB panels. It utilizes the most advanced linear

motor technology for the PCB separating

process; thus, providing high speed and high

accuracy, but keeping the maintenance costs

low.

Low cost of the product exchange

The fully automated Cencorp 1300 BR is designed for high volume mass-production. The fast product

change over increases flexibility while guaranteeing a high through-put and, thus, minimizing production

loss. Moreover, we recognize a growing need for ESD protection and a clean cutting process (less dust),

which have been very carefully incorporated to our depaneling solutions. Also, the known Cencorp user-

and service-friendliness has been taken into account when designing the 1300 BR, allowing easy access

inside to cell on both sides front and rear. The Cencorp depaneling machines are equipped with software

interface that will allocate required information pertaining to daily production. In addition, we have very

useful software options available like, PCB quality verification, bit height and diameter verification, CAD file

download, off-line programming and others, which also increase productivity.

Modular platform

Our standard solution is based on modular product construction, which includes a wide variety of PCB

handling solutions needed after the depaneling process, such as, tray conveyors, flat belt conveyors, PCB

shuttle and palette conveyors.

Cencorp Automation Ltd •

Joensuunkatu 7 I

, FI

24100 Salo, Finland • tel +358

717 0811, fax +358

551

1220 •

www.cencorpautomation.com • VAT no. FI26385367

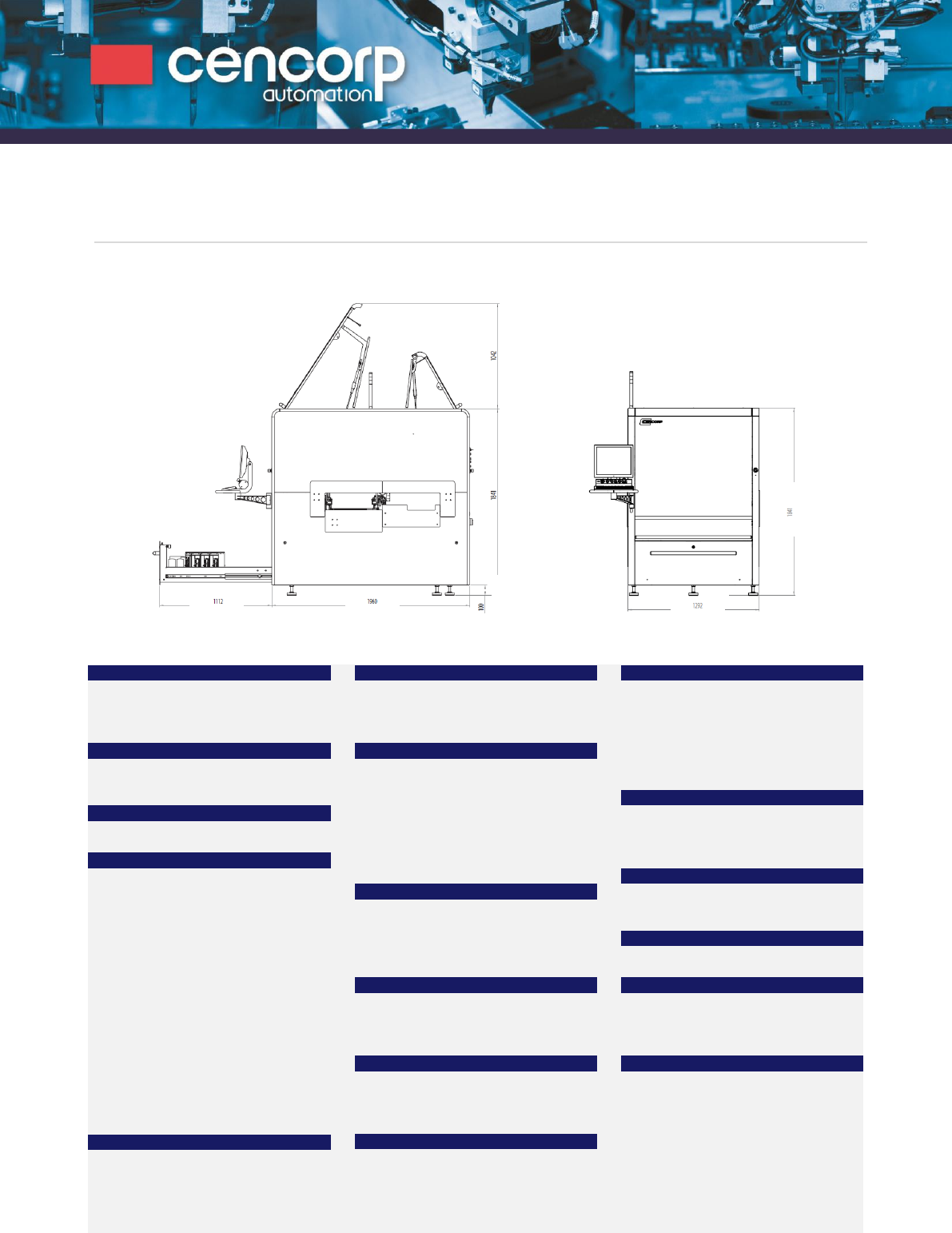

Cencorp 1300 BR Technical Data

Pick & Place Work Envelope

X-travel: 850 mm

Y-travel: 1275 mm

Z-travel: 160 mm

W-travel: 360 degg

Router Work Envelope

X-travel: 480 mm

Y-travel: 490 mm

Z-travel: 50 mm

Accuracy

Repeatability (X,Y):±0.02 mm

Repeatability (W): ±0.05o

Board Handling (panel)

Min. PCB size L x W: 50x50 mm

Max. PCB size L x W: 500 x 400 mm

 Oversized PCB dimensions can be

handled upon request

PCB transfer time: 1s (depending on run

mode)

Transfer protocol: SMEMA

Transfer height: 900 ±30 mm

2nd locating pin: Programmable

Automatic conveyor width adjustment**:

Programmable

PCB conveyor type: Two segments

Max. PCB board weight: 4.0kg

Top clearance: 100 mm

Bottom clearance: 40 mm

PCB stopper position: programmable / fixed

(option)

Pick & Place Performance

Max. Axis speed: 2500mm/s

Max. Acceleration: X-axis 20000mm/s2, Y-

axis 12000mm/s2, Z-axis 25000mm/s2

Recommend routing speed: 20-40mm/sec

Basic features

Product teaching (CATS): Camera-Assisted

Teaching System

Broken bit detection

Routing bit storage: 10 pieces

Gripper System

PCB pick & place: servo gripper

Gripper finger width: programmable 0-

100mm

Gripper finger change: Automatic

Gripper type identification

Tool rack for product specific fingers: 8

positions

Multi gripper: Optional

Graphical User Interface

Operating system: Windows 7

USB memory: Standard

Touch screen: Standard

Network connection: Optional

Dual Monitors: Optional

Machine Vision

Correction of PCB position: Optional

Downward looking camera: Optional

2D-code reading: Optional

Routing verification: Optional

External Vacuum System

Nilfisk: Optional

Ruwac: Optional

Others: Optional

Dust Flow Control: Optional

Electrical Service Requirements

Voltage EU (USA): 400 (208) VAC 10%

Frequency EU (USA): 50 (60) Hz

Branch circuit size: 16 A

Average Power cons.: 2 kW / phase

Software Options

CMS (cell monitoring system): Optional

Automatic Program Change Over: Optional

Finger validation system: Optional

Good/bad board separation: Optional

Router bit high verification: Optional

Router bit diameter verification: Optional

Offline Editor: Optional

Machine Dimensions

Width: 1300mm

Depth: 1900mm

Height: 1850mm

Weight: 1800kg

Pneumatics Service Requirements

Pressure: 5-7 bar

±10%, dry clean air

Approx. air consumption: 100 l/min

Environmental Requirements

Operating temperature: 10 ... 40°C

Operating humidity (RH): 30% ... 85%

Output conveyor and other solutions

Flat belt conveyor: 1500mm x 250mm

Tray conveyor: tray width from 100mm to

400mm

Shuttle: maximum product width 400mm

Other

Centering unit on rear conveyor rail

Ionizer: Optional

Waste conveyor: Optional

** Patented: US6222629,FI105315,Pending

1112

1960

1292

100

1841
