Gener al F amil y H7 56 Mechanical specifications Internal thread 1.6 Dimensions T otal length [mm] 30. 50 Press ring diameter [mm] 2.20 Outer diameter [mm] 2.00 Collar height [mm] 0.20 Accessories T ool for r eceptacle …
General
Family H756
Mechanical specifications
Internal thread 1.6
Dimensions
Total length [mm] 30.50
Press ring diameter [mm] 2.20
Outer diameter [mm] 2.00
Collar height [mm] 0.20
Accessories
Tool for receptacle FAWZ756
Twist-Proof Probes
H756
Order code 1001846

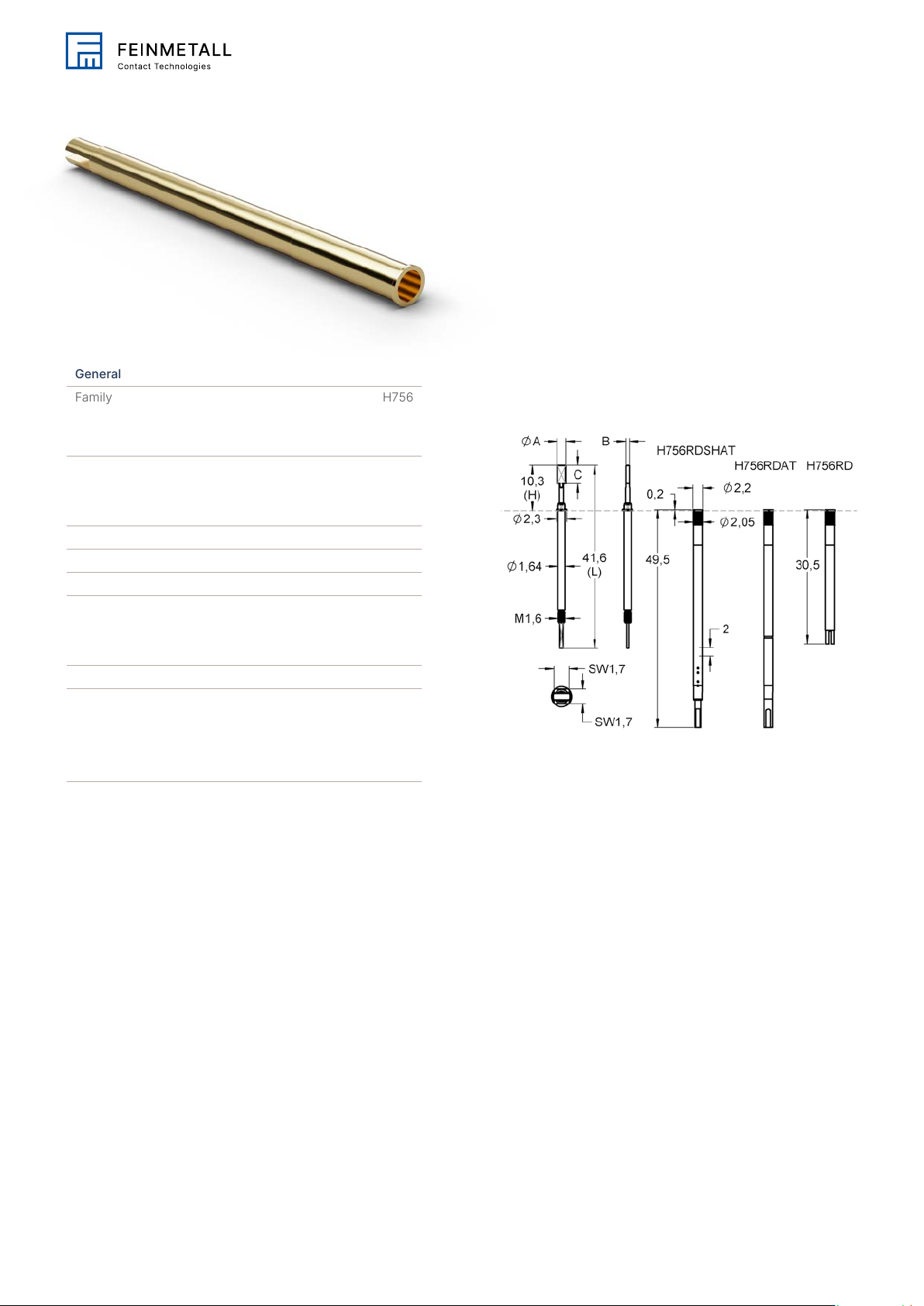

Family drawing
All measurements are in mm.
