Cassette and cassette XL
Page 4 / 6 18.11.2021
Cassette and cassette XL
Page 5 / 6 18.11.2021
Cassette and cassette XL
Page 6 / 6 18.11.2021
Pos. Item no. Description Part marking

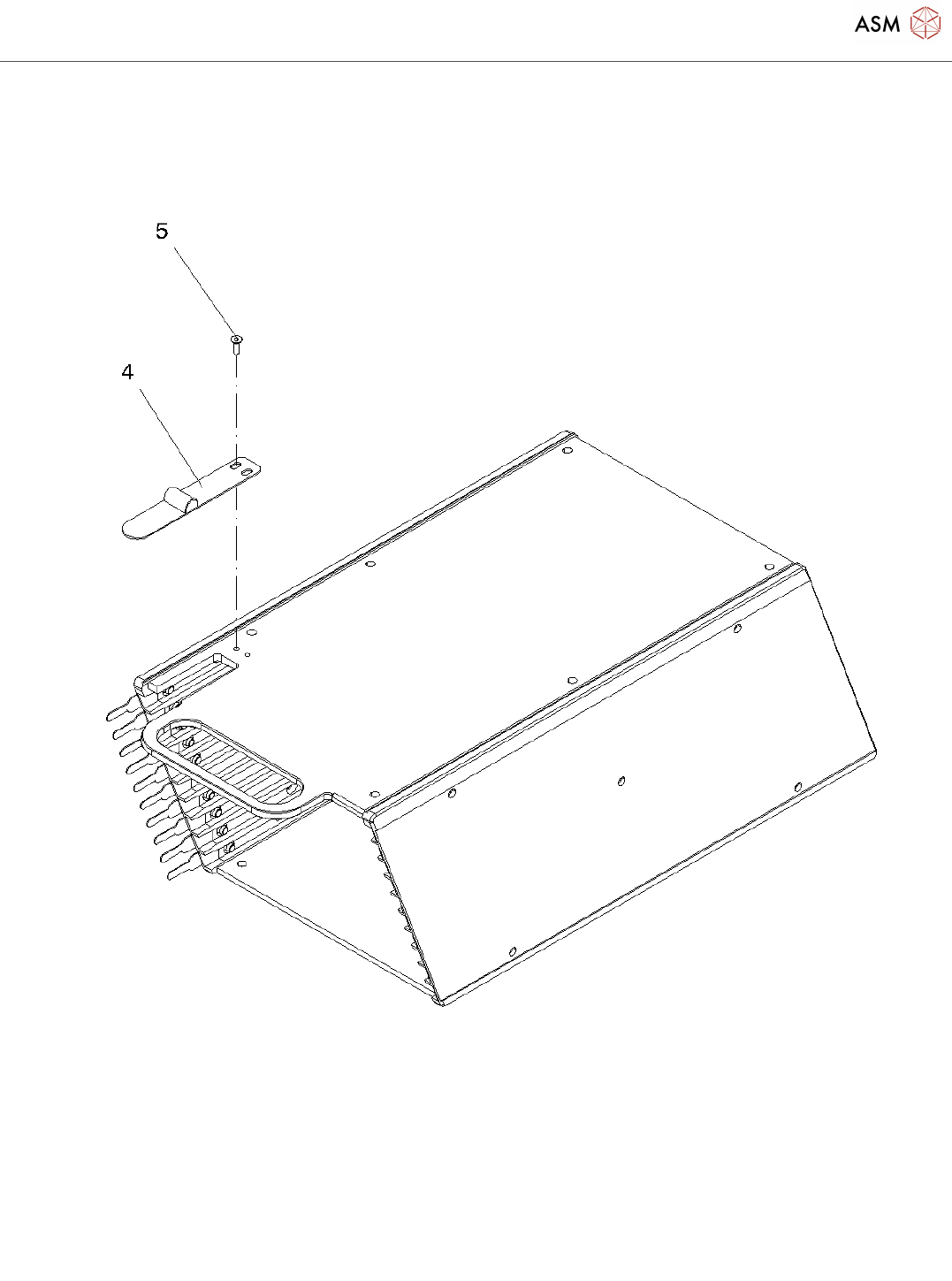

1 00359418-03 MTC CASSETTE COMPLETE SPARE PART
2 00359419-05 INTERLOCK WTC SPARE PART
3 M2003143 HEXAGON SOCKET COUNTERSUNK
SCREW 8.8 ZINC-C. M3X5
4 00370735-02 LOCKED BOX SPARE PART
5 M2003144 CROSS RECESSED RAISED CHEESE
HEAD SCREW 10.9 ZINC-C. M3X2

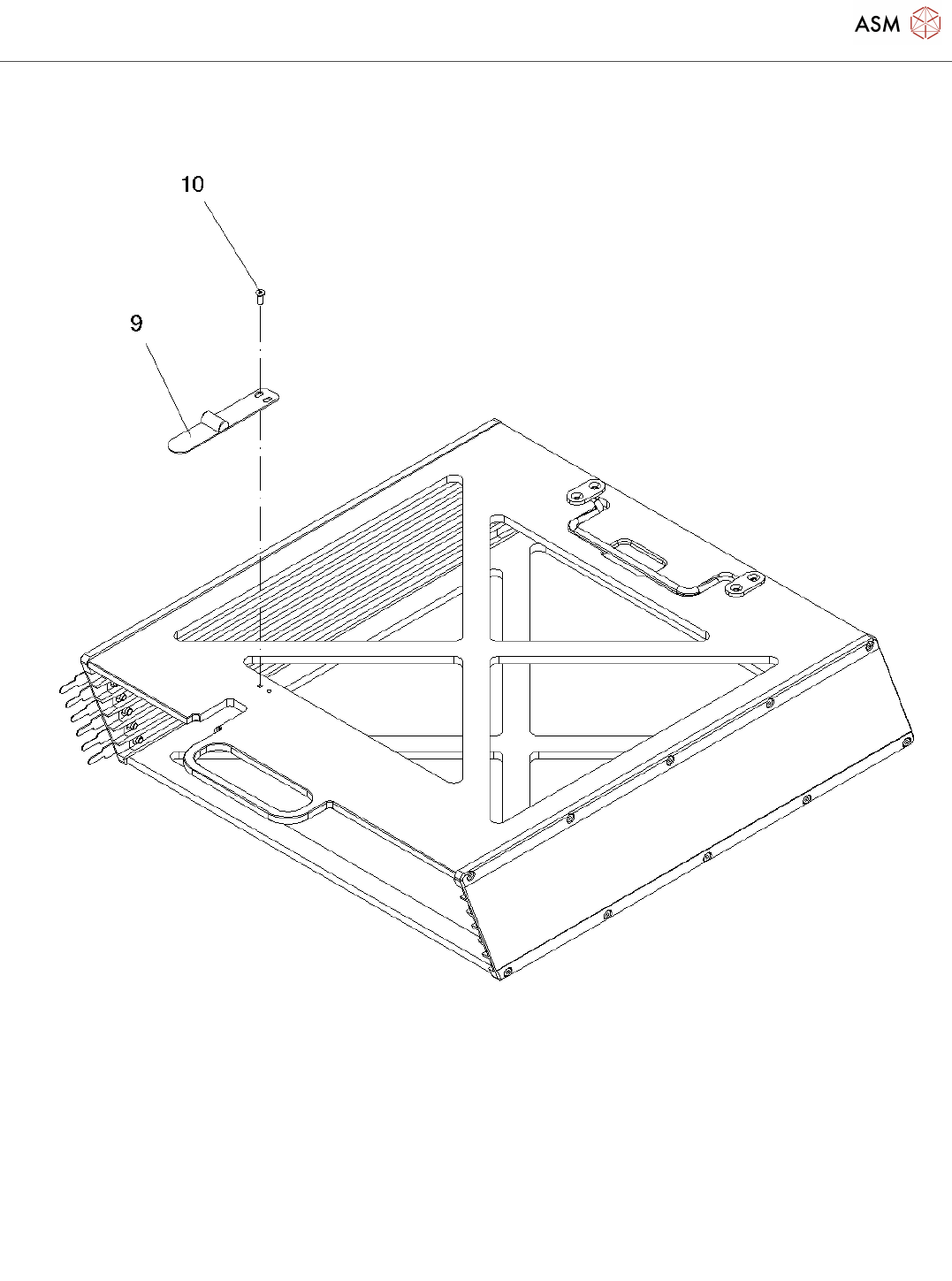

6 00372607-02 CASSETTE XL SPARE PART
7 00372613-04 INTERLOCK WTC MTC2 SPARE PART
8 M2003145 HEXAGON SOCKET COUNTERSUNK
SCREW 8.8 ZINC-C. M3X6
9 00370735-02 LOCKED BOX SPARE PART
10 M2003146 CROSS RECESSED RAISED CHEESE
HEAD SCREW 10.9 ZINC-C. M3X2
