ﾛｰﾀﾞ･ｱﾝﾛｰﾀ ﾞ部(ﾛｰ ﾀﾞｶﾊﾞｰ部) LOADER & UN LOADER SE CT.(LOADER C OVER SECT. ) 5 FN610128961AA_04 M45
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
5
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(切欠き基板対応部)
LOADER & UNLOADER SECT.(P.C.B. CUTTING TYPE SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610088541AA
NOTCH TYPE P. C. BOARD UNIT ｷﾘｶｷｷﾊ
ﾞﾝﾀｲｵｳﾕﾆｯﾄ
1
001 N210099758AA
BRACKET ﾌﾞﾗｹｯﾄ
1
002 N210147862AA
SLIDER ｽﾗｲﾀﾞ
1003 N210108317AA
SLIDER ｽﾗｲﾀ
ﾞ
2004 1041305952
PLATE ﾌﾟﾚｰﾄ
2
005 1041305953
PLATE ﾌﾟﾚｰﾄ
M4X12-10.9 A2J (Triva
4
N501
N510017346AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M4X10-10.9 A2J (Triva
4
N502
N510017344AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M3X8-10.9 A2J (Trival
14
N503
N510017341AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
3 10H A2J (Trivalent)
10
N504
N510018494AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
4 10H A2J (Trivalent)
2
N505
N510018497AA
ROUND PLAIN WASHER ﾐｶﾞｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M4X8-10.9 A2J (Trival
2
N506
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎ
ﾞﾙﾄ
M4X5-10.9 A2J (Trival
2
N507
N510017372AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
P919T
2
N001
N310P919T
SWITCH ｽｲｯﾁ
CQSB16-40DC
1
N002
N510044707AA
CYLINDER ｼﾘﾝﾀﾞ
KQ2S06-M5
2
N003
KXF0DZ7YA00
FITTING ﾂｷ
ﾞﾃ
M4
6
N004
N510020099AA
WASHER ﾜｯｼｬ
CTAM1
4
N005
KXFP6F86A00
CLAMP ｸﾗﾝﾌﾟ
M44
FN610088541AA_02
ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(LOADER COVER SECT.)
5
FN610128961AA_04
M45
PART No.
ｲﾗｽﾄ
No.
REF
No.
PART NAME
REMARKS
Q'TY
5

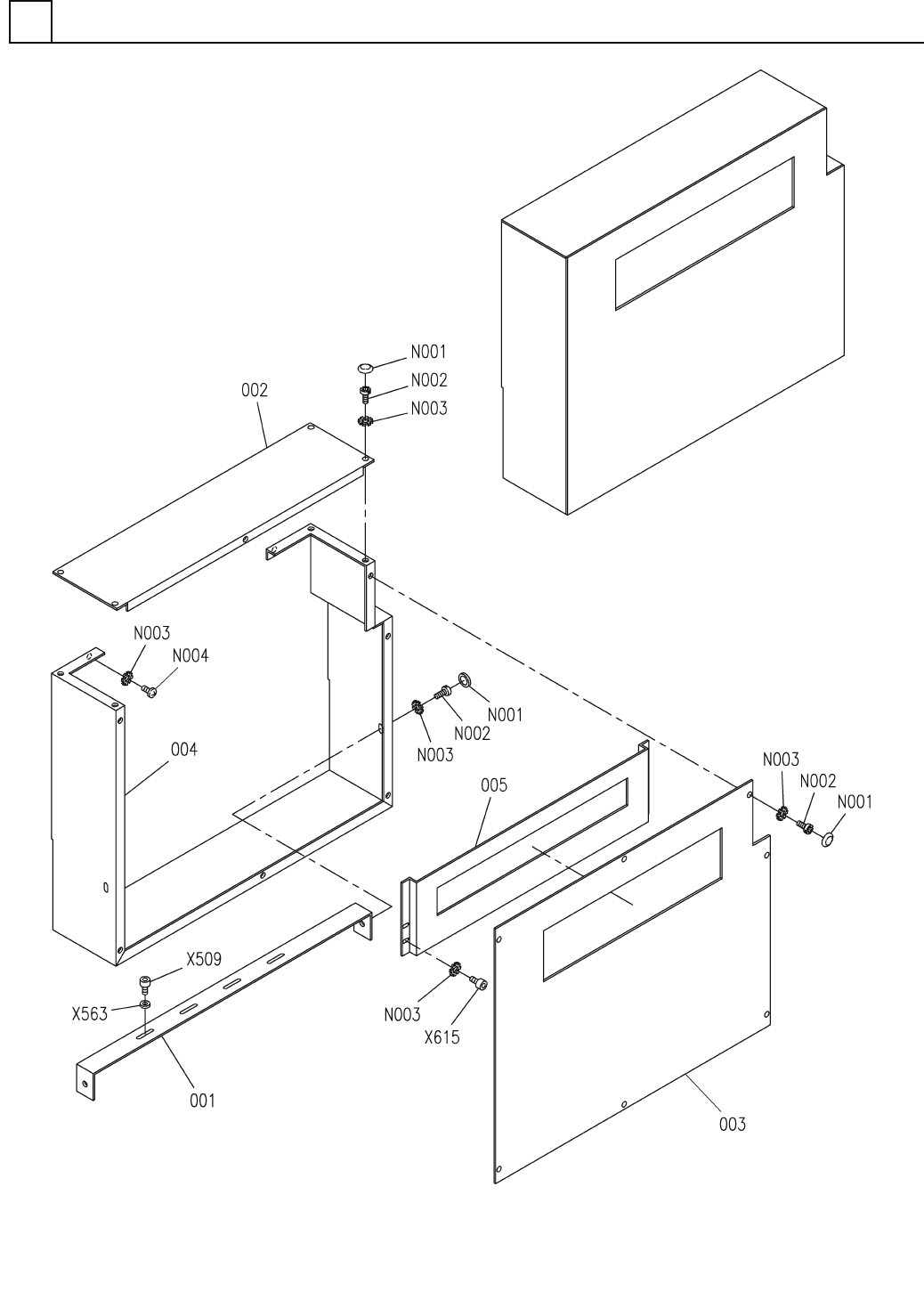

ﾛｰﾀﾞ･ｱﾝﾛｰﾀﾞ部(ﾛｰﾀﾞｶﾊﾞｰ部)
LOADER & UNLOADER SECT.(LOADER COVER SECT.)
部 品 名 品 番 個数
備 考
R
1
R
2
1 N610128961AA
LOADER COVER UNIT ﾛｰﾀ
ﾞｶﾊﾞｰﾕﾆｯﾄ
1
001 N210149551AC
BRACKET ﾌﾞﾗｹｯﾄ
1
002 N210149552AF
COVER ｶﾊﾞｰ
1003 N210149713AF
COVER ｶﾊ
ﾞｰ
1004 N210149717AG
COVER ｶﾊ
ﾞｰ
1
005 N210152244AD
COVER ｶﾊﾞｰ
M5X12
13
N001
N986YYYY-814
CAP ｷｬｯﾌﾟ
JB-A M5X8 +
13
N002
N510038044AA
BOLT ﾎ
ﾞﾙﾄ
5 External toothed St
19
N003
N510018765AA
TOOTHED LOCK WASHER ﾊﾂｷｻ
ﾞｶﾞﾈ
M5X8-4.8 A2J (Trivale
2
N004
N510018302AA
TRUSS HEAD SCREW ﾄﾗｽｺﾈｼﾞ
M5X16-10.9 A2J (Triva
4
X509
N510017395AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
5 10H A2J (Trivalent)
4
X563
N510018499AA
ROUND PLAIN WASHER ﾐｶﾞ
ｷﾏﾙﾋﾗｻﾞｶﾞﾈ
M4X8-10.9 A2J (Trival
4
X615
N510017381AA
HEX. SOCKET HEAD CAP BOLT ﾛｯｶｸｱﾅﾂｷﾎﾞﾙﾄ
M46
