QUICK A ND EA SY NEW PR ODUCT INT RODUCTION With the SIPLACE Vision T each Station, quick new product introductions are no longer a problem. The sy st em detects the shapes and dimensions of new components w ith its auto…
QUICK AND EASY NEW PRODUCT INTRODUCTION
With the SIPLACE Vision Teach
Station, quick new product
introductions are no longer a
problem. The system detects the
shapes and dimensions of new
components with its auto-learn
function and makes the
information available to the
SIPLACE Pro programming
system. The highlight: since the
new component is specified at
the external teach station, there is
no production interruption.
When new products are introduced, manufacturers
frequently encounter component shapes for which
no description is available in the programming
system. If the component is highly complex, or no
data sheet is available, creating such a new
package shape can be quite involved. With the
SIPLACE Teach Station, this no longer poses a
problem since it makes new component
descriptions significantly easier and faster.
The benefits at a glance:
Offline description of components at an
external teach station
Easy to use user interface
Auto-learn function for easy description of
component shapes
Export function for SIPLACE Pro
The SIPLACE Vision Teach Station reduces the
effort required to add new components significantly.
This tool is an ideal solution for electronics
manufacturers who operate in a high-mix
environment and for contract manufacturers who
must be able to handle lots of new products with
many different components in the shortest possible
period of time.
SIPLACE Options
SIPLACE
Vision Teach Station
The information in this specification consists only of general descriptions and / or performance features, which is not contractually binding.
Any specific performance features / capabilities will only be binding if contractually agreed. Subject to changes without notice.
A10011-ASM-G64-X-7600 Edition 4-05/2014
ASM Assembly Systems GmbH & Co. KG
Rupert-Mayer-Str. 44
81379 Munich, Germany
Phone: +49 89 20800-27819
Fax: +49 89 20800-36692
smt-solutions.de@asmpt.com
www.asm-smt.com
SIPLACE
Vision Teach Station
Functionality of the SIPLACE
Vision Teach Station
The SIPLACE Vision Teach Station creates
descriptions of components offline with the same
digital camera and software that are installed in the
machine. The SIPLACE vision software supports
the description of the package shape based on an
image of the actual component. With the auto-learn
function, all that’s left for the user to do is to define
the component type and make the image area that
contains the connectors.
The SIPLACE Vision Teach Station automatically
analyzes all relevant component data – with a BGA,
this would include the package dimensions, the
number of solder balls along with their size,
arrangement and pitch.
When done, the system transfers the new record to
the SIPLACE Pro database for permanent storage.
With the SIPLACE Vision Teach Station,
the entire process often takes less than a minute.
SIPLACE Pro can immediately use the new record
for its placement program and reliably identifies
the new component during the placement process.
And since the new component is specified at an
external teach station, there is no production
interruption.
The SIPLACE Vision Teach Station includes:
Camera
X, Y, Z tables
Prepared computer (including monitor)
Software (SIPLACE PRO and SIPLACE Vision)
Focus height calibration tool
Documentation
Camera type
23 25 28 30 33 36 41
Min. comp. size [mm]
0.4 x 0.2 0.6 x 0.3 1.0 x 0.5 0.4 x 0.2 1.0 x 0.5 1.6 x 0.8 0.12 x 0.12
Max. comp. size [mm]
6 x 6 16 x 16 18.7 x 18.7 27 x 27 55 x 45
32 x 32
6 x 6
Illumination level
5 6 4 5 6 6 5

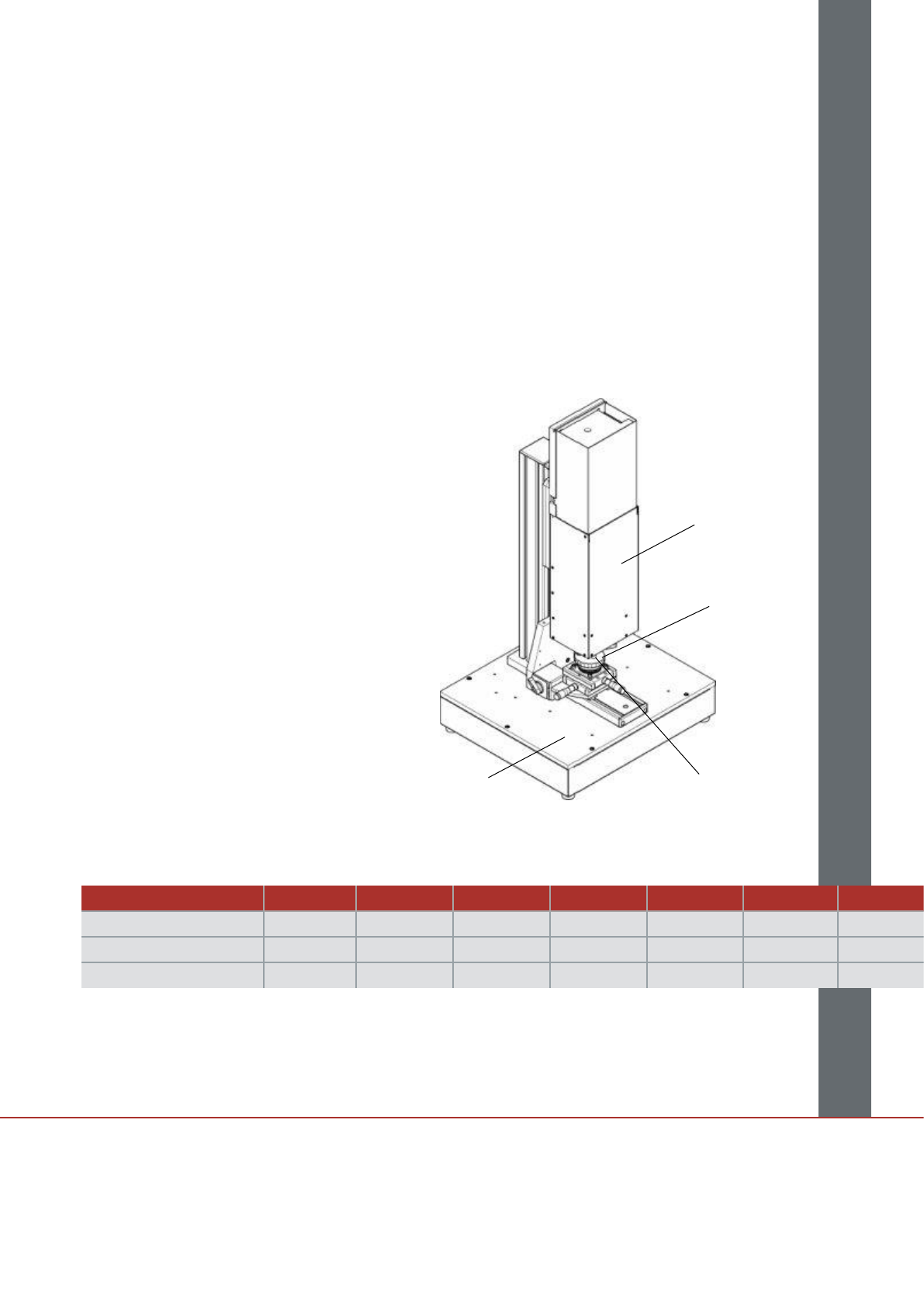

Camera e.g.
TwinHead
Camera
Base Plate
X, Y, Z Table
Component
SIPLACE Vision Teach Station is compatible with the following cameras:
