TS-DSAD Series
Dual Syringe Dispenser
Part Number
Description
TS-DSAD-50-11
50ml Dual Syringe Dispenser, 1:1
TS-DSAD-50-21
50ml Dual Syringe Dispenser, 2:1
TS-DSAD-50-41
50ml Dual Syringe Dispenser, 4:1
TS-DSAD-50-101
50ml Dual Syringe Dispenser, 10:1
TSR-DSB50ML-3
Robot Bracket

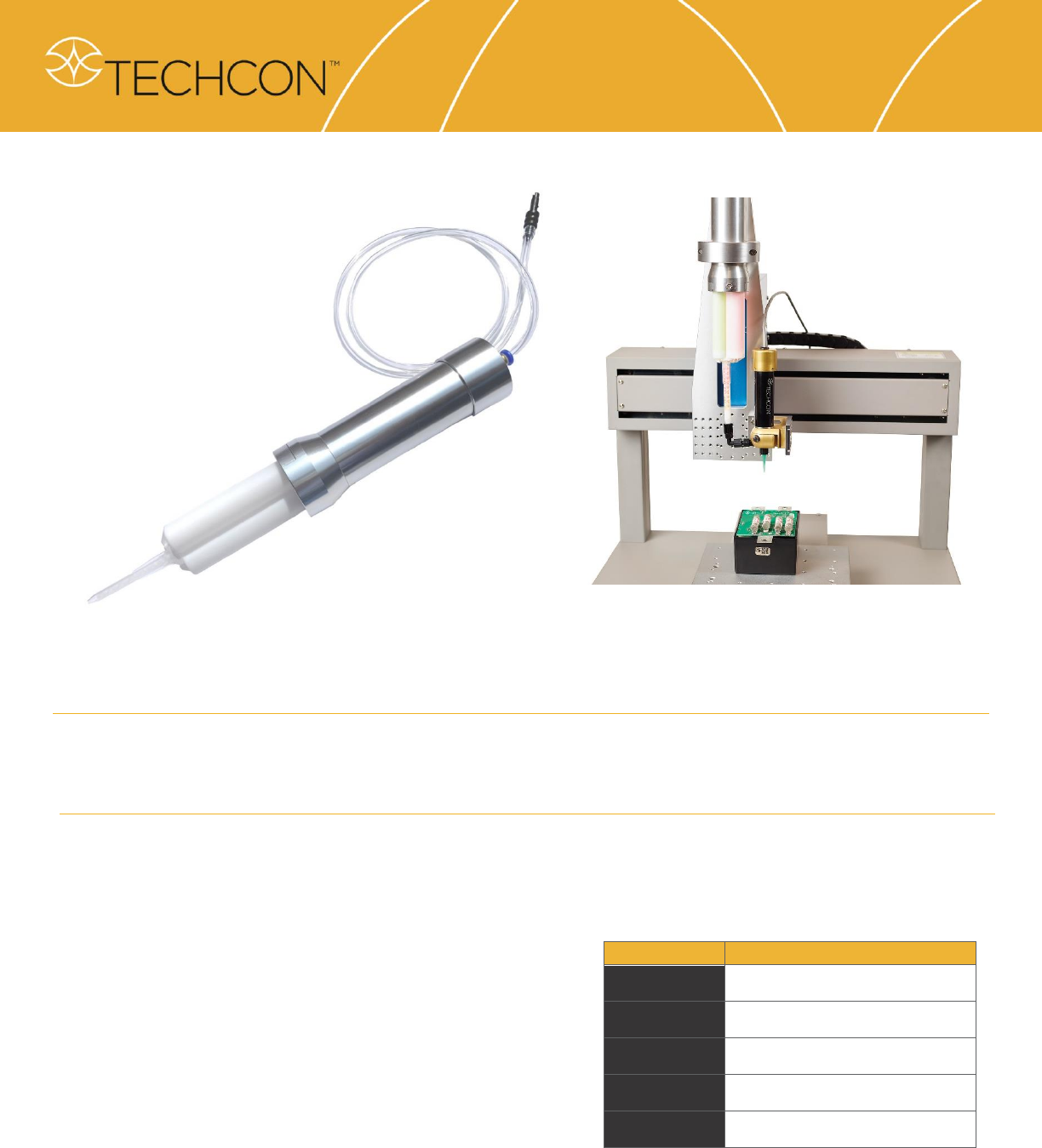

50ml Dual Syringe Dispenser
Hassle free dispensing of 50ml dual syringes
Techcon’s Dual Syringe Dispenser is designed to accommodate
conveniently packaged 50ml side-by-side syringes, in ratios 1:1,
2:1, 4:1 and 10:1.
A secure attachment adaptor ensures quick change over when
the dual syringe is empty.
Operation is achieved through pulsed air pressure from a TS250
or TS350 Series dispenser. The dispensers on board vacuum
function can be activated when the dual pistons require
retraction for syringe change over.
The multi configurable robot integration bracket allows
effortless semi-automated use, with the option of using the
system with any of Techcon’s disposable path valves - TS1212,
TS5624DMP or TS5000DMP-DCX-SR and touch screen
controllers.
In addition, a hanging ring is provided to store the dual syringe
dispenser, when not in use and the system is supplied with and
air hose, with bayonet fitting.
TS-DSAD Series
Dual Syringe Dispenser
Use
Controller
Valve
Misc.
Vacuum
Hand-Held
TS250/TS350
N/A
N/A
N/A
Robot + Pinch
Valve
TS550R
TS1212
TSR-1212BKIT
TS8120
Robot +
Diaphragm Valve
TS550R
TS5624DMP
5624DMP-FLB
TS8120
Robot + Rotary
Valve
TS570R
TS5000DMP-DCX-SR
N/A
TS8120
ROBOT INTEGRATION BRACKET – TSR-DSB50ML-3
• Robust, stainless steel
construction
• Hand-held, or robot mounted
• Quick attachment/detachment
of 50ml dual syringes
• Hanging ring
Key Features & Benefits
Dispensing:
• Gap filler
• Encapsulant
• Structural Adhesive
Typical Applications
For Sales & Support
Techcon Corporate Headquarters
10800 Valley View Street
Cypress, CA 90630 USA
Tel: 1-714-230-2398
E-mail: oemorders@okinternational.com
Techcon European Corporate Office
Eagle Close, Chandler’s Ford Industrial Estate,
Eastleigh, Hampshire, SO53 4NF, UK.
Tel: +44 2380 489 100
E-mail: europe-orders@okinternational.com
Or visit www.techcon.com
CONFIGURATION (use table on page 1 and table below)
Use
Dispenser
Controller
Valve
Bracket
Misc.
Hand-Held
TS-DSAD-50-XX
TS250/TS350
N/A
N/A
N/A
Robot + Pinch Valve
TS-DSAD-50-XX
TS550R
TS1212
TSR-DSB50ML-3
TSR-1212BKIT
Robot + Diaphragm Valve
TS-DSAD-50-XX
TS550R
TS5624DMP
TSR-DSB50ML-3
5624DMP-FLB
Robot + Rotary Valve
TS-DSAD-50-XX
TS570R
TS5000DMP-DCX-SR
TSR-DSB50ML-3
N/A
CONFIGURATION
TDS-DSD-EN-1907
Part Number:
TS-DSAD Series
Size (Imperial):
2.13'' W x 6.3'' L
Size (Metric):
54mm x 160mm
Weight:
0.94 lb (425g)
Air Inlet:
1/8'' NPT female
Activation Pressure:
0 – 100psi (0 – 6.9bar)
Mounting Port:
N/A

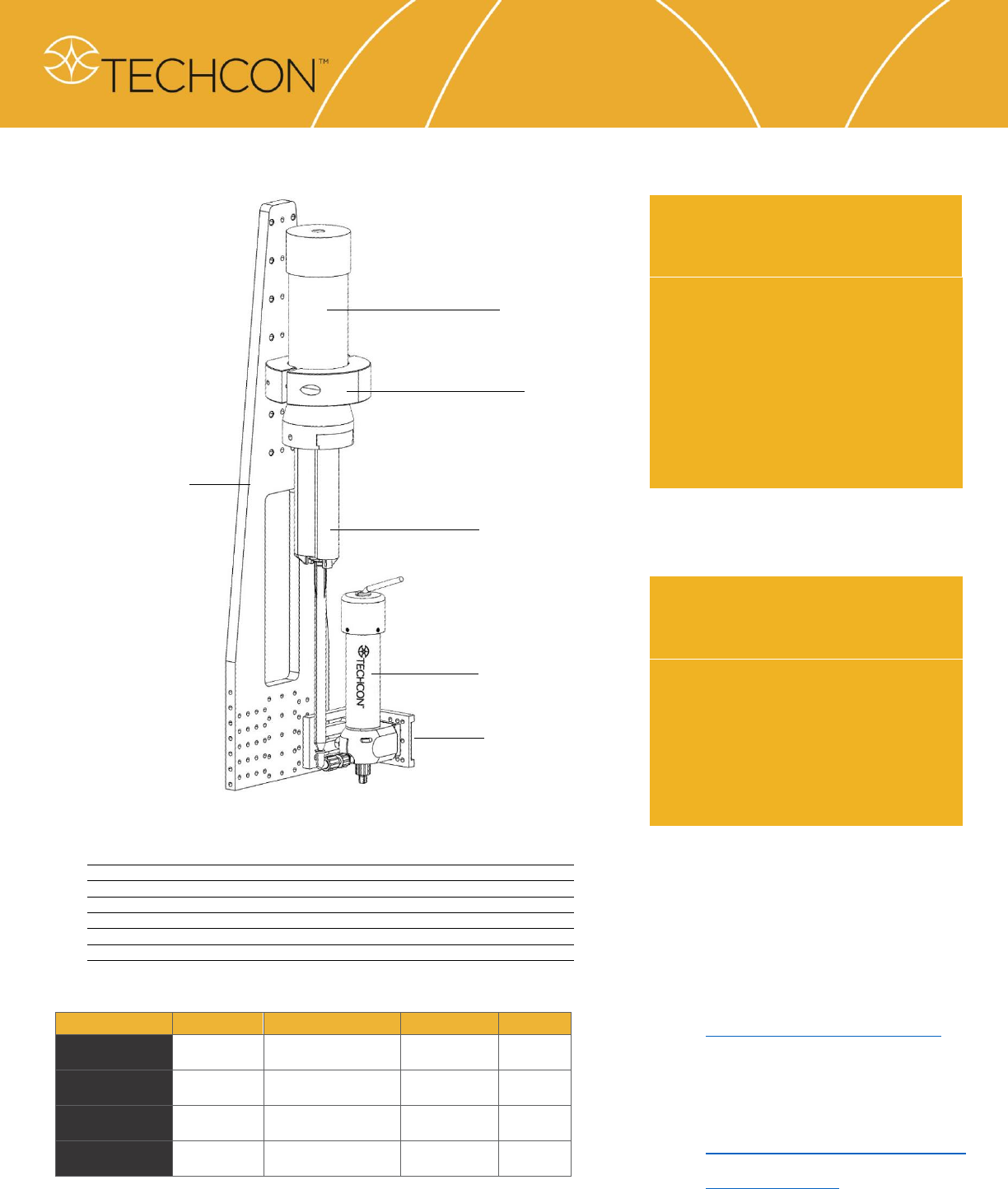

Dual Syringe
Dispenser
Clamp
50ml Syringe
Dispense Valve
Universal Valve
Bracket
Multi-Position
Back Bracket
SPECIFICATIONS & PART NUMBERS
