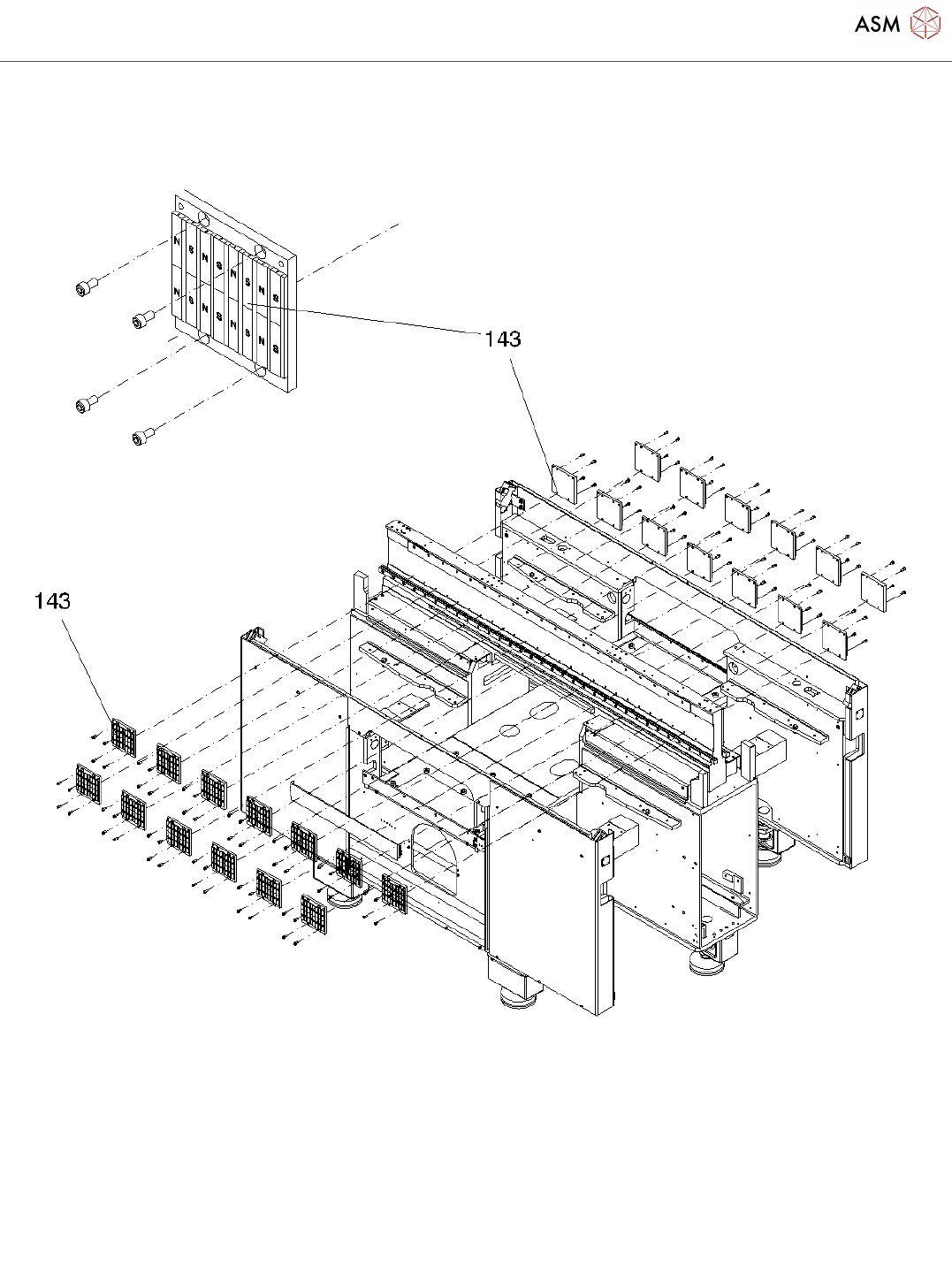

Machine frame D4i
Page 7 / 13 23.11.2021
Machine frame D4i
Page 8 / 13 23.11.2021
Pos. Item no. Description Part marking
1 03097608-01 D4 FRAME SYSTEM (F. DTC)
2 03097607-01 D4 FRAME W. PROTECTIVE COVER
(F. DTC)
3 03097605-01 MACHINE FRAME D4 (F. DTC)
4 00334922-02 MACHINE BASE S50 SPARE PART
5 00306732-01 PUSH BUTTON INNER HALF PS-1,
10.3MM
6 03038822-01 SET OF SHEET METAL PARTS /HS-D
7 03039716-02 EXTENSION OUTPUT SIDE/HS-D
8 03036231-02 BASE-EXTENSION HS-D
9 03009350-01 WARNING LABEL NO. 210
10 03038119-01 DOOR,CPL./HS-D SPARE PART
11 03003576-01 HANDLE COVER STRIP
12 03039518-01 QUARTER TURN W. DOUBLE BIT
13 00304188-01 MOUNTING FOOT 22*4,3*14 STANDARD PARTS
14 00349458-01 ON-OFF PUSHBUTTON 3SB3
WT(I)/BL(0)
SPARE PART
15 00334073-01 MUSHROOM PUSHBUTTON 3SB3
RED 40MM
SPARE PART
16 03039044-03 COMPONENT PARTS FOR OUTLET
COVER/D4
17 03038383-02 ENTRY/EXIT-FLAP, WELD PART
18 03036273-01 SAFETY COVER-RAIL/HS-D
19 00304577-01 FLEXIBLE ACTUATOR AZ 15/16 SPARE PART
20 00315187-01 DIN 125-A 5,3-140HV-A2
03032515-02 CONTROL ELEMENT COVER
22 00304351-01 SAFETY SWITCH AZ15/16 1S+1OE
00335306-02 CABLE HS50: START
/STOP/EMERGENCY-STOP
SPARE PART
00328232-01 SWITCH ELEMENT 3SB3400-0B 1NO
SCREW TER.
SPARE PART
00337636-01 SWITCH ELEMENT 3SB3 / 1S+1OE SPARE PART
26 00315187-01 DIN 125-A 5,3-140HV-A2
00805141-01 CABLE TIE W=3.6MM L=140MM TY
24M
STANDARD PARTS
28 00316904-01 DIN 125-A 3,2-140HV-A2
29 03008162-01 ISO 4032 - M3-A2-70 STANDARD PARTS
Machine frame D4i
Page 9 / 13 23.11.2021
Pos. Item no. Description Part marking
30 03042507-01 ISO 4762 - M 4 X 16-A2-70 STANDARD PARTS
03042542-01 ISO 4762 - M 3 X 8-A2-70 STANDARD PARTS
03098680-01 LAYOUT F. CONVEYOR LABEL
SIPLACE D4
03097177-01 ROD END 2, ASSEMBLY
03043409-01 HINGE SPACER
03008172-01 ISO 4035 - M 8-ST SPARE
03044337-01 ROD END NOS 8 T SPARE PART
03096448-01 ROD END 1, ASSEMBLY
03043409-01 HINGE SPACER
03044337-01 ROD END NOS 8 T SPARE PART
03008172-01 ISO 4035 - M 8-ST SPARE
03096893-01 HOOD SECTOR 2
03096888-01 D4 HOOD ASSEMBLY LEFT, CPL.
03048379-01 ACTUATOR AZ 15/16-B1 SPARE PART
03044338-01 MUSHROOM BUMPER 10 X 5MM Wear Part
03043100-01 HS-D BAR CODE LABEL SECTOR 2 SPARE PART
03086852-01 WRITING ASM WHITE ADHESIVE 140
MM
SPARE PART
03096895-01 HOOD SECTOR 1
03096394-01 D4 HOOD ASSEMBLY RIGHT, CPL.
03048379-01 ACTUATOR AZ 15/16-B1 SPARE PART
03044338-01 MUSHROOM BUMPER 10 X 5MM Wear Part
03042986-01 HS-D BAR CODE LABEL SECTOR 1 SPARE PART
03086853-01 WRITING SIPLACE WHITE ADHESIVE
170
SPARE PART
03096894-01 HOOD SECTOR 4
03096888-01 D4 HOOD ASSEMBLY LEFT, CPL.
03048379-01 ACTUATOR AZ 15/16-B1 SPARE PART
03044338-01 MUSHROOM BUMPER 10 X 5MM Wear Part
03043101-01 HS-D BAR CODE LABEL SECTOR 4 SPARE PART
03086852-01 WRITING ASM WHITE ADHESIVE 140
MM
SPARE PART
03096778-02 COVER TOP
00341997-01 LABEL GROUNDING POINT GNYE
D12.5
